Forensic dentistry now and in the future

Single body identification

Identification of deceased individuals makes up the majority of work for forensic dentists, especially when identity is assumed, for example from personal belongings or circumstantial evidence. Dental identification is usually requested when a body is not suitable for viewing by the family or if there is difficulty in retrieving DNA. From a more practical perspective, dental identification is an excellent method, as teeth are very stable over time, being resilient to high temperature, trauma and variations in humidity and pressure. In addition, it is quick, accurate and relatively cheap. To establish identity, post-mortem (PM) dental remains are compared with ante-mortem (AM) dental records that can include dental charts, study casts, dental radiographs and photographs.⁶

While a relatively straightforward process, there are many obstacles to establishing a dental identification. The availability and accuracy of AM records is a major determinant in the success of identification.⁷ Many studies have surveyed dentists' awareness of this and a recent paper found that students are more likely to keep accurate dental records than dentists in practice.⁸ Poor record-keeping is becoming less of a problem with the use of electronic patient records in developed countries, although a full glossary of the symbols and colours used is very useful and not often available to the forensic dentist. The electronic dental record also has the advantages of easy handling, transfer, and opens up the possibility of rapid communication in forensic cases related to identification overseas.⁹ However, in developing countries, the quality of information recorded in notes may vary significantly.

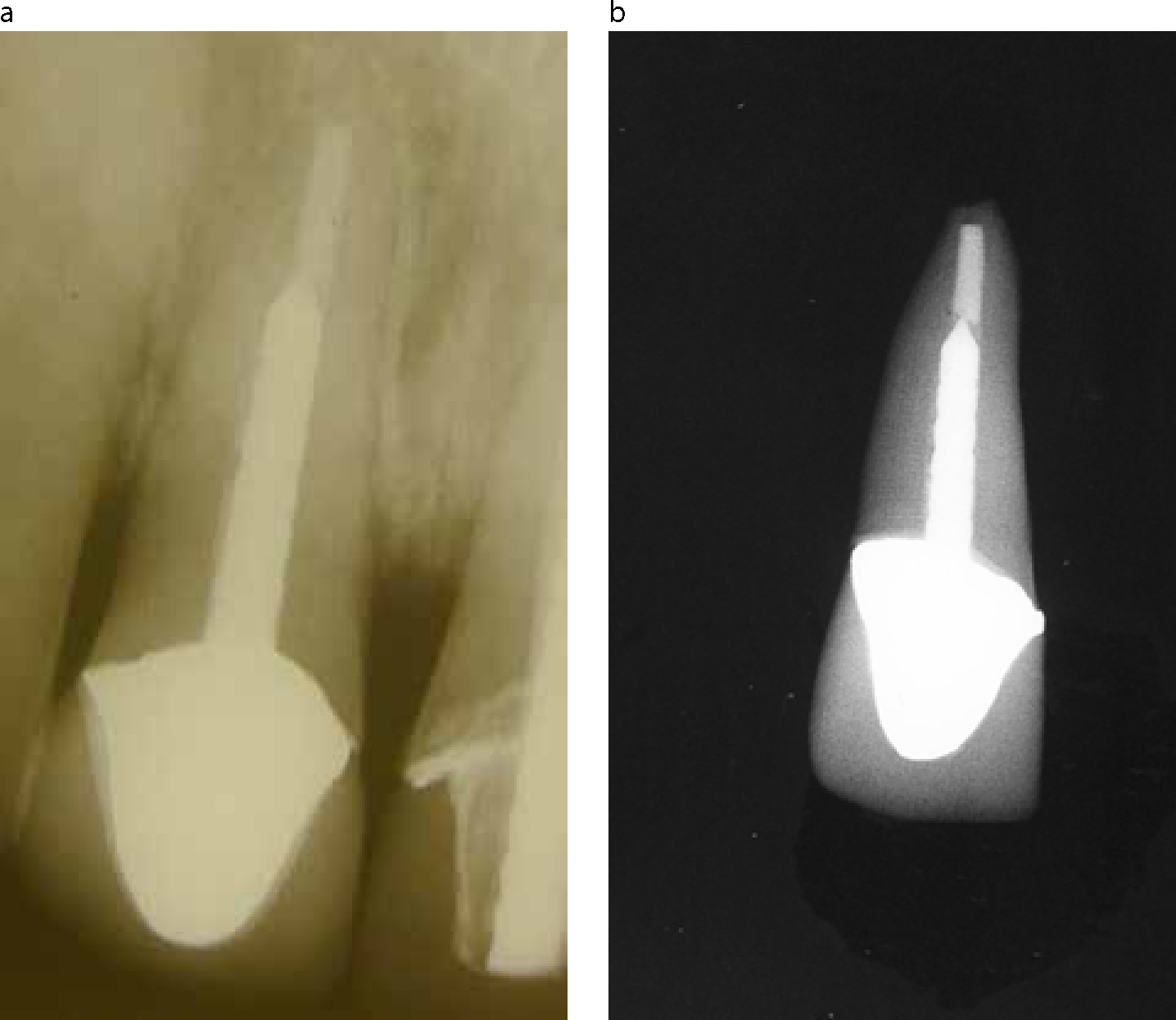

Radiographs can assist the process of identification. Most well-resourced mortuaries should have access to intra-oral radiography and it is then a straightforward matter of duplicating the position and angulation of the ante-mortem radiograph to allow a comparison of the shape and size of restorations in the two radiographs¹⁰ (Figures 1a and b). In circumstances where there are no restorations, identification is still possible through radiographic features such as pulp chamber anatomy, root shape and even bone trabeculae.¹¹ However, the reliability of this depends on the experience of the forensic dentist and the age of the AM radiograph.¹² Dental casts are also an excellent resource for identification as the body or casts of the victim can be compared to the AM models (Figures 2a and 2b). This allows morphometric analysis of the teeth and also a comparison of palatal rugae that are considered to be as unique as fingerprints and stable throughout adult life.¹³ If no specific dental records are available, identification using photographs has been described.^14,15 However, the accuracy and reliability of this technique has not been established at a population level. With the reduction in dental experience of young people it is likely that this technique will become more important, especially with the widespread use of ‘selfie’ photographs which often focus on the smiling face.

If resources allow, dental materials can also provide clues to assist identification. Scanning Electron Microscope/Energy Dispersive X-ray Spectroscopy (SEM-EDXS) can be used to analyse restorative materials. Each material produces a unique spectrum allowing individual brands to be identified. SEM-EDXS has been used to identify the composition of a glass-ionomer filling which was then traced back to a prison where the restoration was placed.⁶ Electron probe analysis has also been used to identify the material found in a wound as that of the porcelain from a fractured dental bridge, thereby linking the suspect and the victim.¹⁶

Even if the dental record cannot help with identification, teeth can be used as a source of DNA which is then compared to a known AM sample or to a relative.⁶ DNA analysis has been increasingly used in human identification procedures since the development of genetics in the 80s.¹⁷ The hard tooth tissues protect the pulpal DNA from external damage.¹⁷ With severe body decomposition or skeletization, teeth may be the only feasible source of DNA, with the dental hard tissues also able to be used for DNA extraction. Microscopic examination of teeth can confirm sex by the presence or absence of Y-chromatin and DNA analysis.⁶

Clinical relevance in identification

Maintaining good notes is essential and would ideally include a full mouth charting:

Mass disasters

Dental identification is also applied in disasters with a large number of fatalities; disaster victim identification (DVI). DNA matching, friction ridge (fingerprint) matching and dental comparison are the three primary identification techniques, ie no other evidence is required to prove identity. Even with the increased awareness of DNA, dentistry still accounts for the vast majority of identifications. In many mass disasters, identification is more challenging because of the presence of body fragmentation, commingling and psychological stress.⁶ The process of identification is identical to single body identification but the logistics are much more demanding, especially if the mass disaster is an ‘open’ disaster with no list of victims which would be available in a ‘closed’ disaster, such as an air crash where a passenger manifest is available. Computer systems have been developed that assist with the administrative and identification processes. Plassdata (www.plassdata.com) is a comprehensive DVI software package that has been adopted by Interpol as it replicates the paperwork of the Interpol DVI guide. It has various sections including DNA, friction ridge, personal belongings, medical and dental. All the information relating to each body and suspected victim is stored in the system. Ante-mortem and post-mortem findings can then be electronically searched, saving much manual work. It is important to highlight that the final identification decision is always made manually.

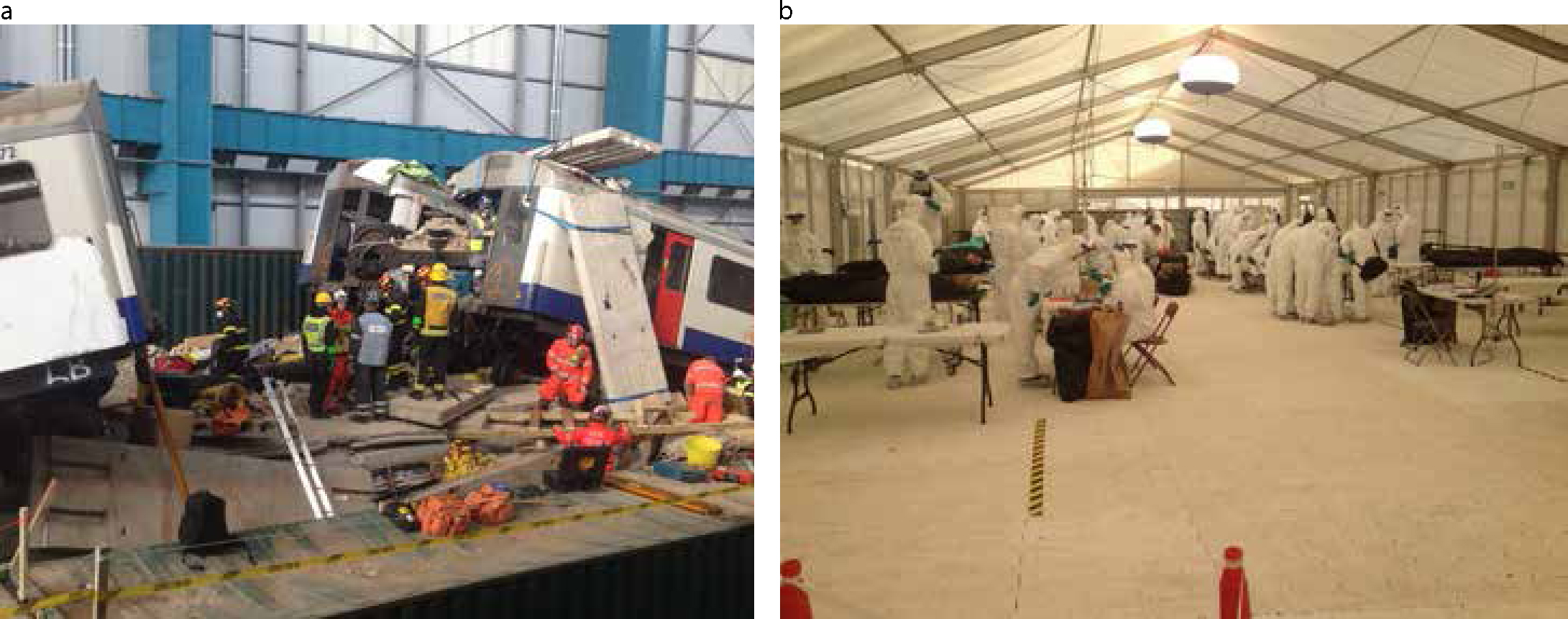

With the growing awareness about the importance of forensic odontologists in DVI incidents, dental graduates are encouraged to train and be part of identification teams¹⁸ (Figure 3). Many countries have established a DVI cadre who are trained in the use of plassdata, are experienced in dental identification and able to be deployed at short notice, often overseas, if nationals are killed abroad.

Age estimation

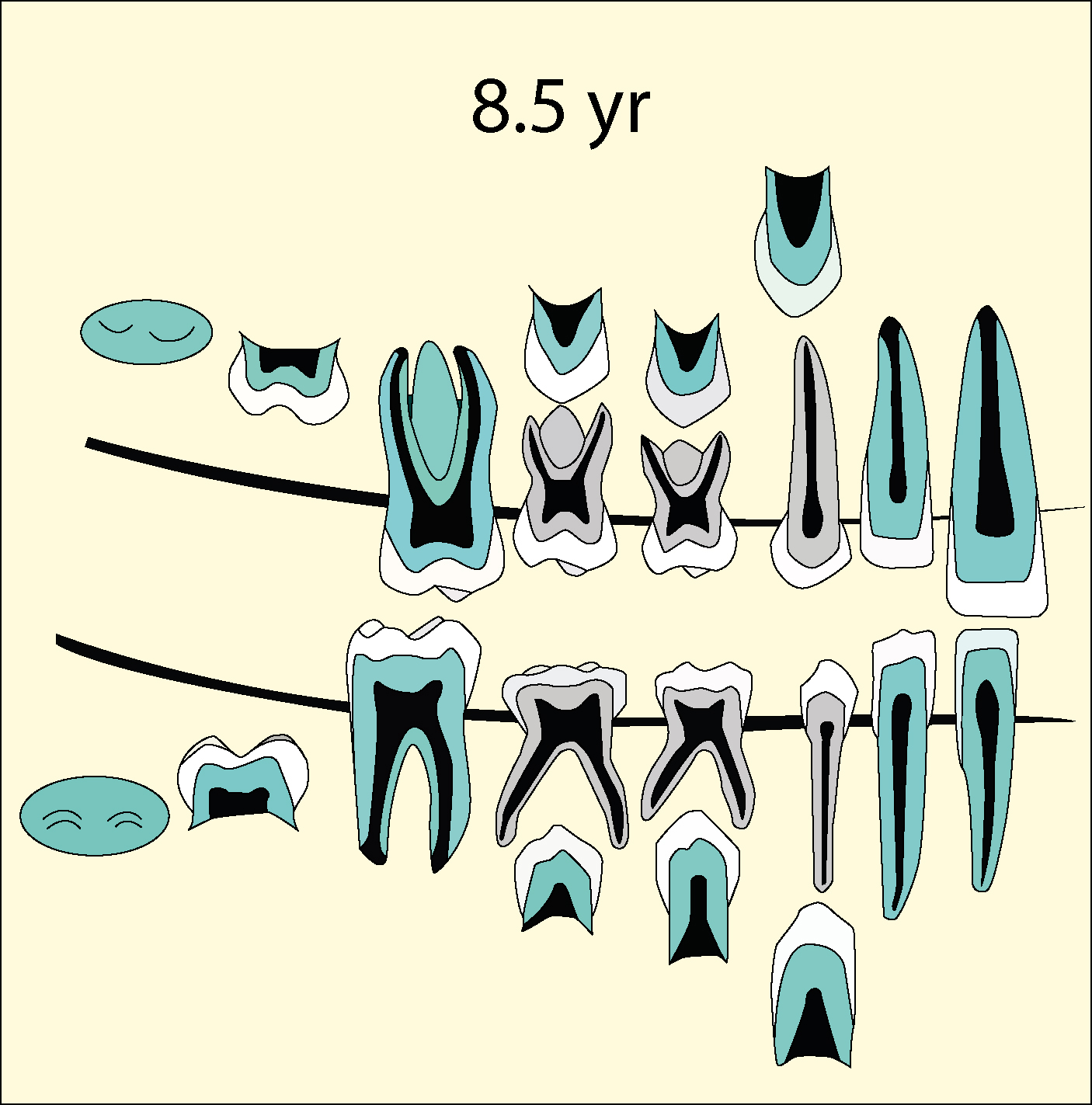

Age estimation is important for many social reasons and forensic dentists are increasingly being asked to assist. Dental age estimation in children considers tooth development and is amongst the most reliable indicators for age estimation up to the age of 16 years. From 16–24 years, third molar development can be assessed but there is significant variability and the accuracy is controversial.¹⁹ In adults, age estimation is less precise and open to significant variation between individuals. The traditional dental changes that have been used are: secondary dentine formation, cementum deposition, root translucency and tooth wear.

In children, tooth development is determined genetically with only a small environmental contribution. Eruption dates are more variable and their use for age estimation is now limited.

The mass migration of refugees into developed countries is a current issue. In many cases the refugees are, or claim to be, children who hope to become asylum seekers. For those minors without valid proof of age, methods of age estimation must be reliable and accurate, so that forgery claims can be avoided and genuine minors will not be rejected. Most of them come from developing countries where patterns of dental maturation may differ due to genetics and nutritional status.²⁰ It is very challenging to predict to what extent these factors influence the accuracy of age estimation but some researchers claim that diet has no effect on the timing of teeth formation,²¹ especially as the tooth being examined is often the third molar, which exhibits high variation in development. Without an understanding of the population differences and the effect of various factors on growth of maturity indicators, some reference data to estimate age should be interpreted with caution. The most accurate method of age estimation of children is to compare tooth formation; crown and root formation against reference samples often controlled for sex and ethnicity. This is usually done radiographically using orthopantomograms (OPGs) and is a high profile area of controversy in the UK, with much debate between politicians and the profession. Most other countries in Europe advocate the use of radiographs for age estimation. However, this debate is outwith the scope of this article. Estimated age can be reported either as the mean age of development, with some measure of confidence required, or as a likelihood of the stage of tooth development being reached at a certain age. The method of age calculation is by comparing to an atlas of tooth development²² (Figure 4) or by using a regression formula.

In adults, the large variability in the dental traits currently routinely used for age estimation means that accuracy is low. One technique that has a very high level of accuracy but that depends on expensive equipment and good laboratory support is aspartic acid racemization. During the course of ageing, L-forms of amino acids are transformed by racemization to the d-forms at a highly constant rate. The extent of racemization may be used to estimate the age of various tissues. Aspartic acid racemization analysis for the purpose of age estimation has been performed on both tooth enamel and crown dentine with analysis of crown dentine shown to yield more accurate age estimation than dental enamel.²³

Bite mark identification and analysis

Bite mark identification and analysis is the most contentious aspect of forensic dentistry owing to the subjectivity of the process and the consequences of an incorrect report. Human or animal bite marks may be found on foodstuffs or upon the victim of an assault or manslaughter. There are two main questions relating to bite marks: does each dentition produce a unique mark and how accurately does the substrate (often human skin) reproduce the dentition that caused the bite mark? With modern computer 3-D analysis, and an accuracy threshold of 0.1 mm, it is possible to identify each arch amongst a group of arches. However, this level of accuracy is unlikely to be able to be achieved in bite mark analysis. To date, it has not been possible to model accurately how human skin reacts when it is bitten. Too many variables need to be defined including; elasticity of the tissue, orientation of the bite mark, whether it overlies muscle, bone or soft tissue, the bite force, age of the victim, any medical conditions or medications and rate of healing.

There are two stages with this work: bite mark identification and subsequently bite mark analysis. ‘Is this a bite mark?’ is the first question that needs to be answered (Figure 5). If it is a bite mark, a decision has to be made as to whether it is caused by a human (Figure 6) or an animal (Figure 7) and if the bite mark is sufficiently clear to allow a comparison to be undertaken with the dental characteristics of the suspect's dentition.⁷

The use of Polymerase Chain Reaction (PCR), an enzymatic amplification of a specific DNA sequence, is routinely used to detect ‘salivary’ DNA deposited on bite marks.²⁴ DNA analysis has also had a significant effect on the admission of bite mark analysis in court. A number of rulings, which relied on bite mark evidence for conviction, have been overturned in the USA. Recent American reports are highly critical of the lack of scientific evidence supporting bite mark analysis.^25,26

Forensic dentistry in the future

Identification by dental means is a proven and validated technique that is well established. The reduction in caries, along with the increase in orthodontic treatment that produces an even smile, will make dental identification more challenging. The use of 3-D imaging, facial and dental scanning and the increased use of ‘selfie’ images are avenues that have the potential to address these issues.

Much of the research currently taking place in forensic dentistry is focused on improving the accuracy of age estimation, especially around the child/adult threshold ages (16–21 years). Many studies are developing reference groups for different ethnicities throughout the world. This is improving the accuracy, but the holy grail of a highly accurate and reliable method has not been identified and it is likely that such a method will come from a chemical or DNA source rather than dental sources.

Bite mark analysis needs to be developed in a more objective manner if it is to continue to be admissible in court. Continued development of 3-D imaging, ultra-violet and infra-red photographic techniques look promising. Digital processing of images is taking away some of the subjectivity and computer algorithms have promise in bite mark identification and comparison. However, the ability to explain the evidence to a jury in an understandable manner continues to be challenging. Witness training in public engagement and clear speaking already helps and the use of computer imaging, including 3-D rendering, is being developed. The genotype composition of oral bacteria can also be used for identification and may help in bite mark cases by proving it was saliva that left the suspect's DNA. The human oral cavity has a large combination of bacterial flora that can be unique to individuals and transferred during the act of biting.⁸ Emerging technologies enhance the unbiased efficacy and speed of analysis and might also reduce cost.

There is discussion about the introduction of this subject into the Bachelor of Dental Surgery (BDS) curriculum in a number of countries, as dental practitioners should have a proper knowledge of forensics for handling the medico-legal cases in their future practices.²⁷ However, this is complicated at an international level because of the lack of quality control in education. Moreover, forensic dentistry is a particularly complex topic for dentists, many of whom are not prepared to deal with death so closely. Therefore, it would seem sensible to train people at a postgraduate level where it is more likely to be able to achieve some form of agreement of what topics and protocols need to be taught. This will need a review of existing guidelines which need to be based on experience and best practice until research provides evidence on the efficacy of different procedures, enabling professionals to reach a well-founded decision in a rigorous and structured way.²⁸ Forensic dentists are not obliged to deliver a defined result but are obliged to be conscientious, prudent and unbiased.²⁸

Conclusion

Forensic dentistry can be intellectually rewarding but the decisions made can have significant social consequences, especially when dealing with evidence in criminal cases, such as child abuse or sexual assaults or when identifying multiple victims. The unpredictable timing of the work makes it difficult to fit into a normal clinical routine, meaning that it is often done at night, lunchtimes or at the expense of regular patients. Very few dentists have a full-time forensic role and research opportunities are limited due to the funding of this work on a case-by-case basis by the authorities. In addition, the nature of the work makes it difficult to design robust scientific studies using real cases which do not affect the process of justice and maintain the necessary respect for the subjects.

Whilst forensic dentistry continues to be strengthened by technological advances, improved materials and modern methodologies, it is interesting to note the similarity in day-to-day work between now and 50 years ago. An analysis of the successes and errors of the past are helping to upgrade the rigour of forensic dentistry. With lively debate amongst forensic dentists about methodologies, training and validation, along with the increasing research evidence, forensic dentistry is addressing the challenges of the 21st century.
