Dental implants: An overview

Implant-soft tissue interface

The tissue that surrounds implants is known as peri-implant tissue and is comprised of soft (mucosa) and hard (bone) tissues. The peri-implant soft tissue has similar features to the soft tissue that surrounds teeth.^7,8,9,10 It consists of a junctional epithelium and connective tissue. The junctional epithelium is attached to the implant and/or abutment surface through a hemi-desmosomal attachment. Connective tissue is present apical to the junctional epithelium and coronal to the crest of alveolar bone.¹⁰ Connective tissue fibres are found to be positioned close to the implant surface but not attached to it, and predominantly arranged in a circular manner. Connective tissue fibres also arise from the crest of alveolar bone and from the periosteum and are oriented parallel to the implant/abutment surface and extend towards the oral epithelium. Thus, the junctional epithelium and connective tissue form a protective seal between the oral environment and the peri-implant bone which plays a vital role in the success of the implant treatment outcome. The junctional epithelium and the connective tissue are collectively known as the biologic width, which is comparable to that found around teeth.¹¹

Implant-bone interface and osseointegration

For dental implants to succeed, intimate contact between the peri-implant bone and the implant surface should be achieved and maintained. Therefore, an integration between the implant surface and the bone is required for the success of any implant system. This integration is known as osseointegration, and is defined as a direct structural and functional connection between ordered living bone and the surface of a load-carrying implant.¹² Under light microscopy, successful osseointegration shows direct apposition of bone on implant surface (Figure 1). However, when the bone-implant interface is examined using electron microscopy, the implant surface is found to be separated from the surrounding bone by an amorphous layer, a granular electron-dense layer, or a layer of uncalcified collagen fibrils^13,14 with a thickness that ranges from 100 nm to 400 nm.¹³ Nevertheless, this layer appears not to have a negative impact on the success of the osseointegration. Inversely, when the connection between implant surface and bone is mediated by a layer of connective tissue, osseointegration fails to occur.^5,15,16

It is important to mention that, as a result of the absence of periodontal ligaments between the implant and its surrounding bone, when the implants are loaded, they move within the bone due to bone elastic deformation.⁶ Furthermore, osseointegrated implants cannot be moved orthodontically.

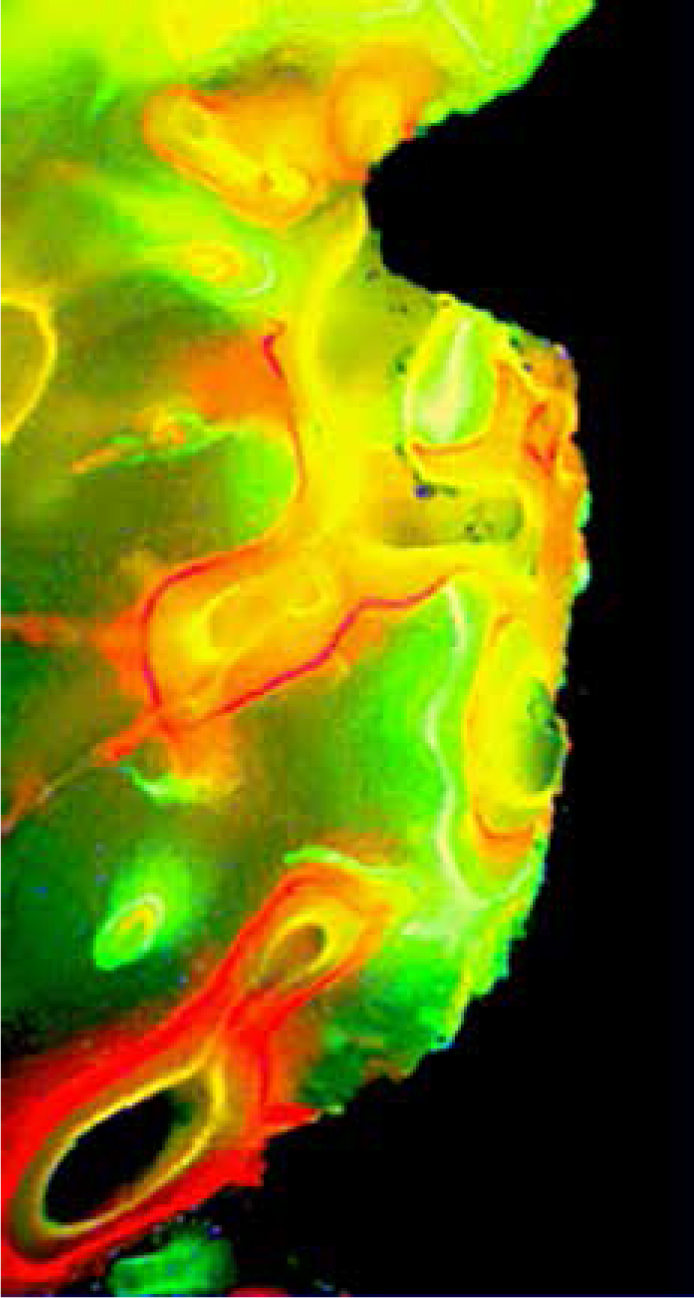

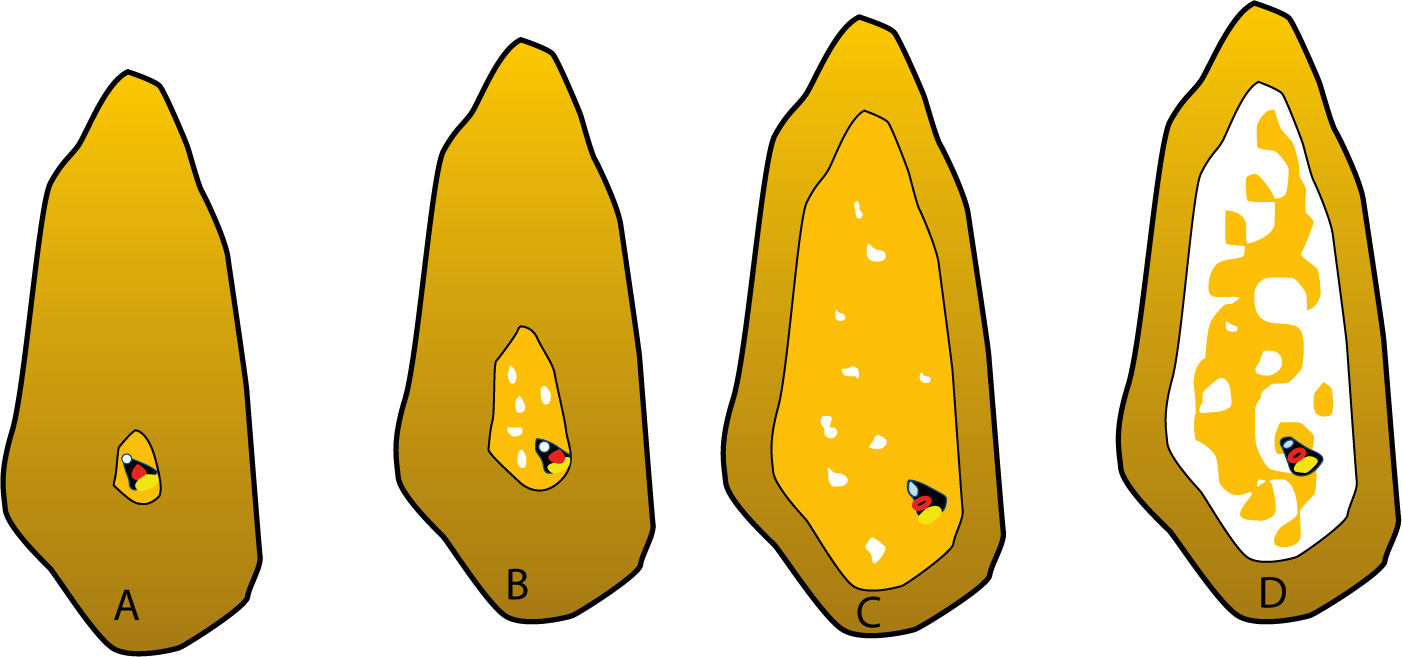

Several factors are reported to play a role in obtaining osseointegration.^17,18 As an example, poor bone quality was found to be associated with a high implant failure rate when compared with bone of a high quality.¹⁹ Clinical studies have reported that dental implants in the maxillary arch (especially for the posterior maxilla) have lower survival rates than those in the mandibular arch.¹⁹ This is usually attributed to the differences in bone quality between the two arches.²⁰ Bone quality, as classified by Lekholm and Zarb,²¹ is based on radiographic assessment as well as resistance during the implant drilling procedure. Accordingly, bone is categorized into four classes, as described in Figure 2 and Table 1. Some factors which affect osseointegration are discussed below and summarized in Table 2.

Implant placement methods

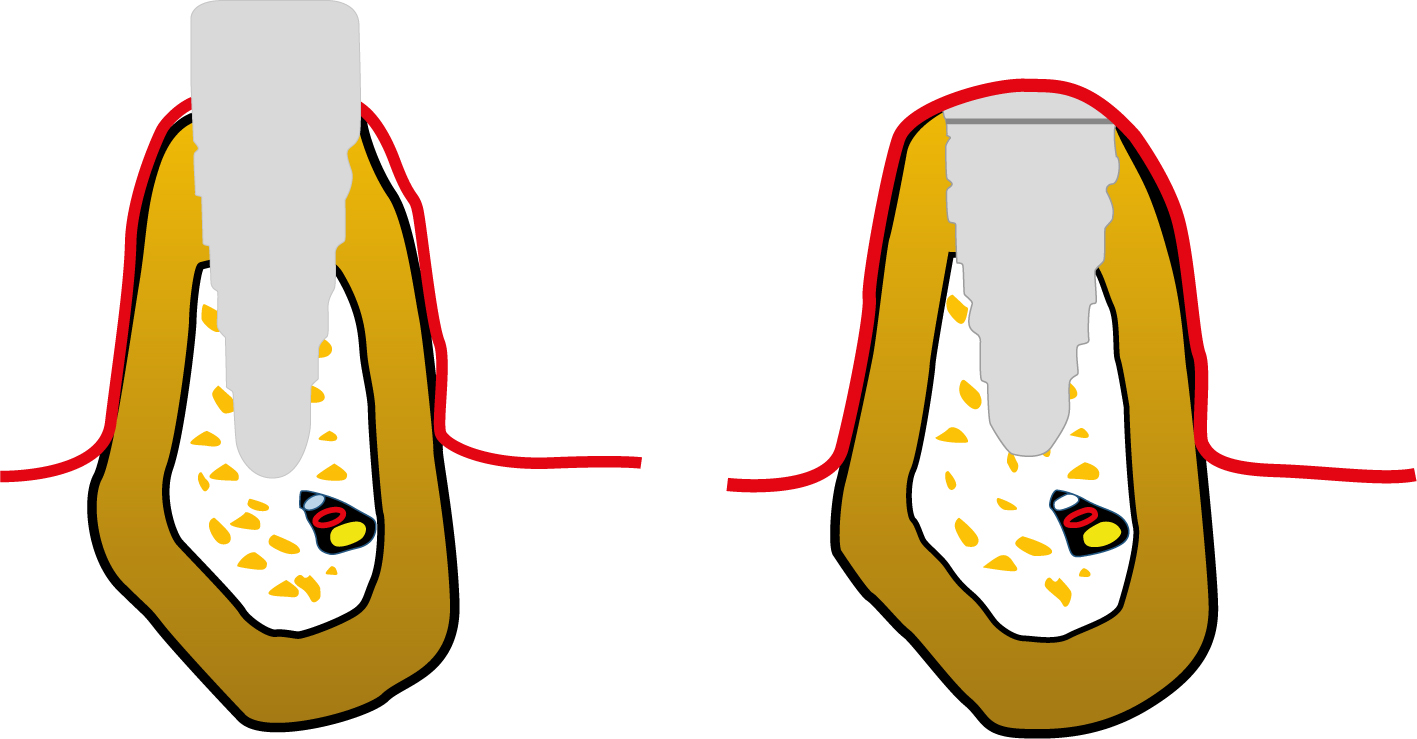

Surgical implant placement may be carried out in one- or two-stage methods (Figure 3). The one-stage method is also known as the non-submerged method. Using this technique, the bone is prepared to receive the implant. The implant is fitted into the prepared bone (osteotomy). However, the coronal part of the implant is kept above the bone crest, protruding through the soft tissue, and is exposed to the oral environment during the healing stage.²² The restoration can be attached immediately after the implant placement surgery or may also be delayed.

The advantages of the one-stage method include:¹⁶

One of the drawbacks that may be associated with this surgical protocol is that the implant is exposed to the oral environment, which may lead to contamination of the surgical site. Furthermore, the implant may be exposed to undue trauma which can negatively affect the healing. However, bone with optimum quality and quantity is a prerequisite for this method to be used. Nevertheless, the method can be clinically successful. Examples of the implants that can be placed using the one-stage technique include the Solid-Screw Implant^® (Straumann UK, Crawley, W Sussex), AdVent Implant® (Zimmer, FLA, USA) and Single-stage Implant System^® (BioHorizons, AL, USA).

In contrast, the two-stage method is also known as the submerged technique (Figure 3). In this method, two surgical procedures are carried out. The first surgery involves installing the implant into the bone, and a cover-screw (also known as a sealing-screw) is attached to the implant platform. A countersink bone preparation that allows for placement of the implant platform below the bone crest may be implemented. The countersink allows the placement of the cover-screw level with the bone crest. The raised flap is then repositioned and sutured to conceal the cover-screw and the implant (Figure 3). After a few months, the second stage surgery is carried out. In this stage, the implant site is re-opened, the cover-screw is accessed and then replaced with a healing abutment, which is also known as a sulcus former or transmucosal abutment (Figure 4). Afterwards, the healing abutment is replaced with a provisional or final restoration. This surgical protocol is suitable for use when the quality of bone is not optimum and when bone graft materials are used in conjunction with the implant. Examples of an implant system used for the two-stage procedure include the Fixture MK III^® (Nobel Biocare, Uxbridge, UK), MAX 2.5^® Implant (Bicon Inc, Boston, MA, USA) and OSSEOTITE^® 2 Certain Implant (BIOMET 3i, Maidenhead, UK).

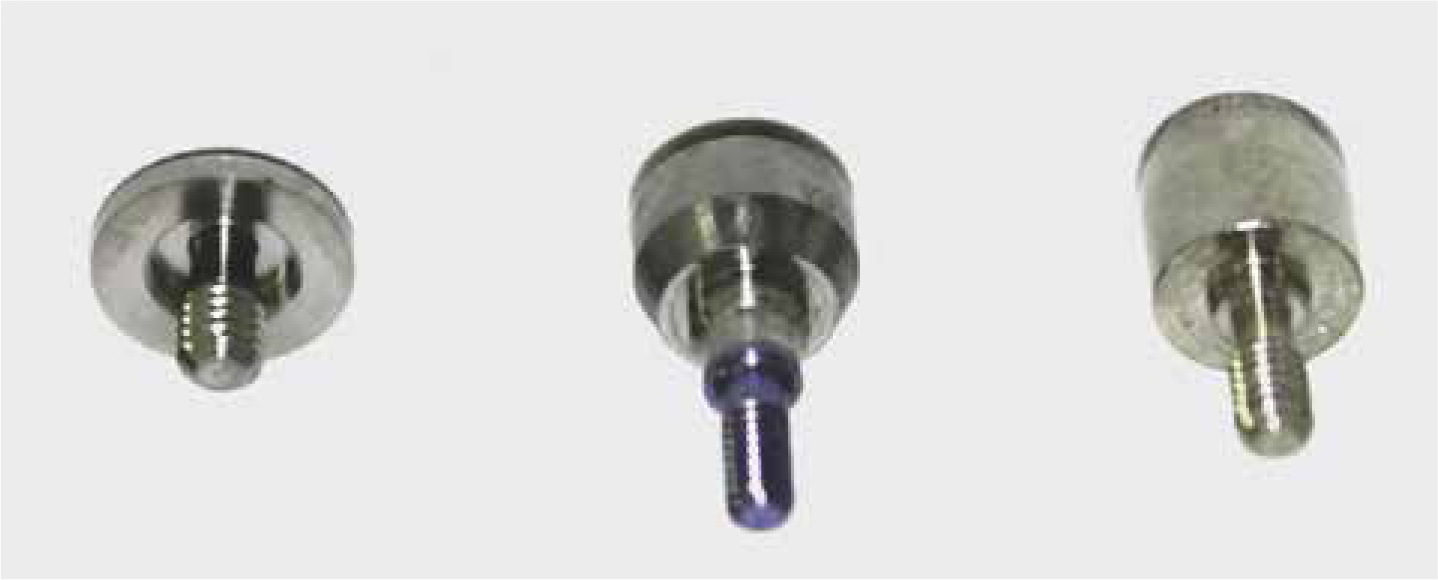

It is important to mention that the cover-screw is used to prevent tissue growth into the implant or over its platform. It is attached to the implant using a screw-driver with a light finger force. It is essential to confirm that the cover-screw is fully seated and no gap is left between the cover-screw and the implant platform. The cover-screw has a low profile which facilitates the suturing procedure and allows the two edges of the cut mucosa to be brought close together without undue tension. If there is too much tension, it may deteriorate and preclude the healing.²³ Conversely, the healing abutment has a high profile and protrudes through the peri-implant mucosa to the oral cavity. Therefore, the healing abutment is available in different lengths, depending on the distance between the implant platform and the surface of the peri-implant mucosa. It is also available in a variety of diameters, which is selected according to the implant diameter. The cover-screw and the healing abutment are shown in Figure 4.

Implant stability

Implant stability (lack of mobility) is divided into primary and secondary. The primary, also known as initial stability, is achieved during implant placement surgery. It is believed that primary stability plays a vital role in reaching osseointegration, upon which secondary stability depends.

Implant stability is produced by close contact between the implant and the host bone. The factors that may affect primary stability may be categorized into three factors; those related to surgical site (local) or related to implant or surgical method used in placement of the implants. Local factors, such as bone quality and volume, may affect the degree of bone-to-implant contact and consequently affect primary stability. As an example, larger bone-to-implant contact fractions were observed in bone sites of higher density. The implant factors include shape, length, diameter and surface texture. For instance, tapered implants lead to higher insertion torque values than cylindrical implants, which was considered to be due to the greater frictional surface of the tapered implants and associated with high primary stability (see below). A surgical technique, such as that which leads to bone condensation during implant placement surgery or a mismatch between the osteotomy and implant diameter (with the implant diameter being slightly greater than the osteotomy), results in satisfactory primary stability.²⁴ Also, the use of implants with self-taping blades results in a lower primary stability in medium-density bone when compared with those without such blades.²⁵ However, this issue is contradictory.

Secondary stability represents integration of the implant as a result of new bone formation through its remodelling.^2627,28 Therefore, this stability depends on bone activities and factors that influence such activities throughout the patient's life.²⁷ The general consensus is that peri-implant bone is in a continuous active remodelling state which maintains osseointegration and provides secondary stability.^27,28,29

It is important to mention that, when the implant is inserted into the host bone, spaces may exist in the bone-implant interface. These spaces are initially filled with blood that comes from injured blood vessels, forming a fibrin network which is the important step towards the formation of osseointegration.

Dental implant types

In the worldwide market, there is a wide range of dental implant systems available, but only a few brands are American Dental Association (ADA) approved. The most commonly used implant systems include Nobel Biocare, Straumann, AstraTech, Bicon, BioHorizon, BIOMET 3i, Intralock, and Zimmer. All are constructed on the same basic concepts but there are differences in the patented technology and materials.

In general, dental implants may be classified as a one- or two-piece implant.

Features to consider when choosing an implant system

Five features can be used to describe the dental implant body: shape, surface macro- and micro-structure, length and diameter. These features are important when an implant system is chosen.

2.

Surface macro-structure (threads)

The implant macro-structure is represented as threaded or non-thread (thread-less). The threaded type is the most commonly used implant design. The threads are usually incorporated into the implant design to improve the initial stability and dissipate interfacial stress in a more favourable way. As the threaded implants provide better mechanical and biological outcomes, non-thread implants, such as cylinder (press-fit) implants, are less likely to be used and are replaced by the threaded type. Thread features such as thread depth, thread thickness, face angle, pitch and helix angle are considered to be factors that determine the functional thread surface and affect the biomechanical load distribution of the implant.

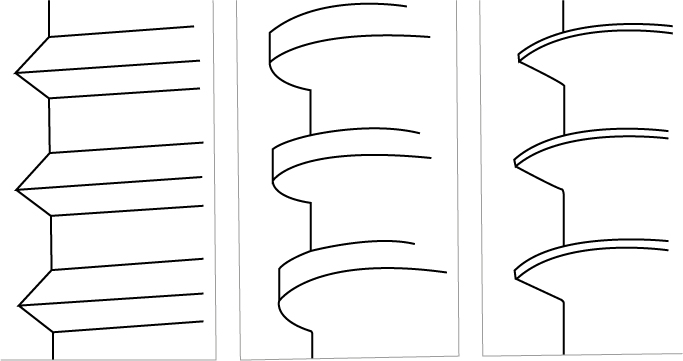

There are three thread shapes which are most regularly used when a dental implant is described (Figure 5). These are V-shaped, square-shaped or reverse buttress.^34,35 An animal study conducted by Steigenga and colleagues³⁶ revealed the effects of thread type on peri-implant bone formation. The study showed that implants with a square thread design had significantly more bone-implant contact and greater reverse-torque measurements than observed when the V-shaped and reverse buttress thread designs were tested.

A threaded implant may also be classified as a self-taping or pre-taping implant.³⁷ A self-taping implant is an implant which is designed to make its own threads as it is being placed into the prepared osteotomy. On the other hand, in pre-taped implants, threads are prepared on the surface of the osteotomy using a tap drill (taper). The produced threads will accommodate the threads of the implant. The pre-taping method is sometimes recommended, such as in the case of dense bone (type I and II) (Figure 2). However, pre-taping implants achieved lower primary stability than the self-taping implants.³⁸

4.

Implant length

Implant length is determined by the distance between the top surface of the implant platform and the apex. In general, the length of the standard implant ranges from 7–18 mm.³³ Selection of an implant of the required length is governed by the available vertical bone height, width and quality which will accommodate the implant (Figure 6). As implant primary stability is a function of contact between the implant surface and bone, the longer the implant, the greater the surface contact and primary stability. However, the increase in implant stability does not occur linearly to the increase of the implant length. For instance, a 10 mm implant has about 30% more surface area than a 7 mm implant, while a 13 mm implant has 20% more surface area than a 10 mm implant.⁴⁶

The bone of the edentulous ridge may not be sufficient for placing an implant with the optimum length. Therefore, several techniques have been suggested to compensate for the deficiency in the residual ridge, either before or simultaneously with implant placement. Among these methods are guided bone regeneration, block grafts, sinus lifting procedures, inferior alveolar nerve repositioning methods, and bone distraction.⁴⁷ These surgical methods are successful and can be used to increase bone height.⁴⁷ However, they are not without risks and may lead to several complications and undesirable treatment outcomes.^5,47 This may encourage the dentist and patient to avoid such surgical methods and to use short implants, therefore the implant is installed with less invasive surgical procedure and the cost is reduced. Nevertheless, when a short implant is used, factors that affect the osseointegration, such as implant shapes, surface texture, and thread designs, should be carefully selected to achieve a satisfactory long-term outcome.^47,48 However, earlier studies have reported that shorter implants are unpredictable and fail more frequently than longer implants.^46,49 In addition, longer implants had statistically higher survival rates when compared with shorter implants.⁵⁰ For instance, it has been reported that survival rates after two years were 93.1% for 5 mm implants and 98.6% for 9.5 mm implants.⁵¹ Furthermore, short implants may fail at an earlier stage than standard implants,²⁰ as peak failure rates of short dental implants were 4–6 years, and 6–8 years for the standard implants.⁵²

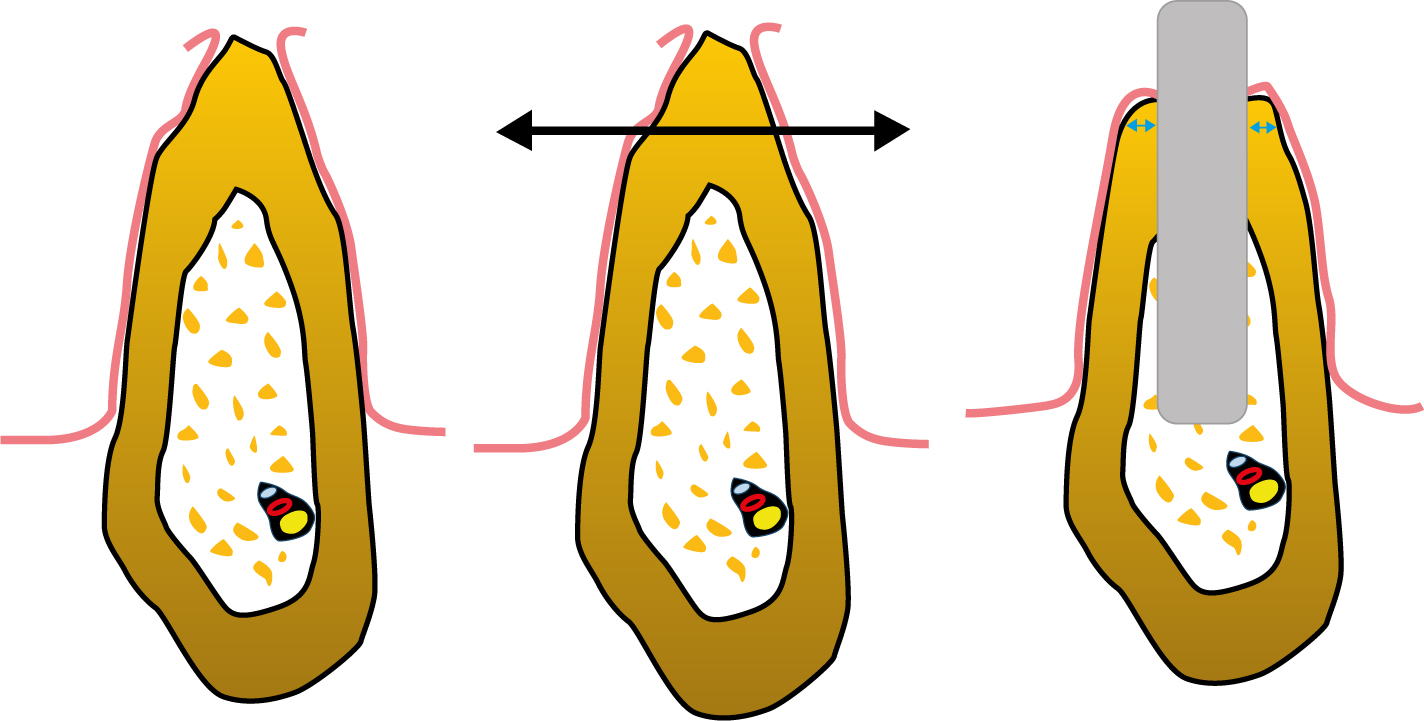

It is important to note that bone resorption following tooth extraction may result in the thinning of the alveolar bone crest, which may preclude placement of an implant with an adequate length and diameter, as shown schematically in Figure 6. Therefore, bone mapping and a CT-scan or Cone-Beam Computed Tomography may be required.

5.

Implant diameter

The implant diameter is measured from the crest of the widest thread to the same point on the opposite side of the implant.⁵³ According to the diameter, implants may be classified as mini when diameter is ≤2.7 mm; narrow when the diameter is >2.7 mm but ≤3.75 mm; regular when it ranges from 3.75–5 mm; and wide when the diameter is >5 mm.

The implant diameter plays an important role in the success of oral implants and has a major impact on the implant's ability to withstand occlusal load.⁵⁴ Selecting an implant of a suitable diameter is governed by the dimensions of the edentulous space (bucco-lingual and mesio-distal) (Figure 7), as well as the bone quality. Moreover, it is also affected by the type of tooth being replaced.

An increase in the diameter of an implant is associated with an increase in its surface area. For instance, increasing the diameter in a 3 mm implant by 1 mm increases the surface area by 35% over the same length.⁵⁵ Also, a 3.75 x 10 mm implant has 61% less surface area than a 6 mm diameter implant of the same length.³³ Furthermore, an increase in the diameter and a change in the threads may lead to an increase in the implant surface area of more than 300%. This increase in the surface area may lessen stresses to the crestal bone areas and reduce both crestal bone loss and early loading implant failure.⁵⁵

It is important to mention that, when the implant is installed, it should be in close contact with the surrounding bone of not less than 1 mm thickness on its buccal and lingual surface, and preferably 1.5 mm or more between the implant surface and its adjacent tooth (Figure 7). For instance, when an implant of 4 mm is selected, the bucco-lingual and mesio-distal dimensions of the edentulous space should be a minimum of 6.0 and 7.0 mm, respectively. However, it has been suggested that, in the aesthetic zone, maintaining a minimum of 3 mm of bone between adjacent implants is beneficial, as bone height as well as the inter-dental papilla are more likely to be maintained.¹¹ Consequently, implants with a smaller diameter at the implant-abutment interface may be used when multiple implants are to be placed.¹¹

The diameter of the roots is usually estimated at 2 mm apical to the cemento-enamel junction. With this measurement, an implant with a diameter that matches, or is slightly smaller than, the tooth being replaced is selected. In order to obtain a restoration with an optimal emergence profile, the implant platform is usually placed at about 2 mm apical to the cemento-enamel of the adjacent teeth. If an implant is placed deeply below the crest of bone, the crown height is increased, which may lead to mechanical failure of implant components and compromise aesthetic treatment outcomes. When the implant is placed more superficially, restoration may be deemed impossible and aesthetic treatment outcome is also compromised.³³

When a molar tooth is replaced, the use of two implants may be an option, as dissipation of occlusal loads are favourable. However, placement of implants close to each other is associated with difficulty in obtaining an optimal emergence profile, interferes with oral hygiene and leads to chronic inflammation and bone resorption.

Short and wide implants may be used to compensate for the decrease in the vertical bone height of the edentulous space when surgery cannot be considered. They may also be used when the quality of the bone bed is not optimal.⁵⁶ Wide implants can be used to increase implant stability,⁵⁷ thus improving stress distribution within the surrounding bone.⁴⁷ Furthermore, the use of a wide diameter implant may reduce the stress on the retained screws. Wide implants are also used for the replacement of posterior teeth and immediately after tooth extraction (Table 1).⁵⁸

Several situations do not allow the use of wide diameter implants⁵⁹ and narrow implants are an alternative. For example, narrow implants are suitable for replacing maxillary lateral incisors and mandibular incisors. They are also suitable when bone quantity is insufficient, or when the roots of adjacent teeth are converging. They may also be used with a removable implant-supported overdenture. However, the use of an implant with a small diameter is not without disadvantages, such as mechanical failure of the implant component. Furthermore, obtaining a good emergence profile of the restoration may also be a problem. Hence, a detailed examination of each patient's condition should be taken before a specific implant is selected, and alternative treatment options, such as a fixed (conventional or resin-bonded) prosthesis, may be considered.

It is important to distinguish between the implant diameter and platform diameter as they may not be equal. The implant platform represents the part of the implant that is connected to the prosthetic (abutment) counterpart. Table 3 displays examples of implant features that should be considered when an implant is selected.

Table 3. Some implant features that should be considered when an implant is selected, and their indications.

Implant length: a long implant should be considered whenever the condition permits.

Implant diameter: ideally, the implant should be approximately the same diameter as the root of the tooth it is replacing. Wide implant: Poor quality bone; Limited ridge height with adequate mesio-distal and bucco-lingual width; and Immediate implant placement (after tooth extraction). Narrow implant: Used to replace maxillary lateral incisors or mandibular incisors; Limited edentulous space; Limited ridge width (to avoid ridge augmentation surgery); When it is not possible to achieve good emergence profile with a wide implant body; and Converging adjacent tooth roots.

Tapered implant: In type IV bone, where primary stability is difficult to achieve; Narrow or concave bone; Converging adjacent roots; and Immediate and early implant placement.

Implant materials

The most commonly used materials in dental implants are either bio-inert, such as commercially pure titanium (Cp Titanium) and titanium alloy, or bio-active ceramics such as hydroxyapatite, tri- and tetra-calcium phosphate and bio-glass.¹⁸

For more than five decades, titanium was the most commonly used material in dental implants due to its bio-compatibility, as well as its mechanical and physical properties, such as resistance to corrosion, high strength and low weight.⁶⁰ Depending on its oxygen content, Cp titanium may be categorized into four grades; grade I contains the least oxygen while grade IV contains the most (0.18% versus 0.4%).¹⁸ Titanium alloy consists of 90% titanium, 6% vanadium, and 4% aluminium and is classified as grade V.³⁴

Titanium is a non-noble metal which has the ability to form a very adherent self-repairing and protective surface oxide layer, which prevents further titanium corrosion. This layer forms immediately when the titanium is exposed to oxygen. The formed oxide layer on Cp titanium is similar to that which is formed on titanium alloys.³⁴ Titanium dioxide (TiO₂) forms the main constituent of this oxide layer, however, other oxides, such as Titanium oxide (TiO) and Titanium pentoxide (Ti₂O₅) may also exist. Incorporation of other chemical elements, such as carbon, traces of nitrogen or chlorine, into the oxide layer have been reported.⁶¹

The release of metallic ions from the titanium implant surface may occur and increase as the implant surface area increases.⁶² It has been suggested that ionic release may interfere with the normal peri-implant bone mineralization and remodelling, which could lead to the failure of the implant.⁶³ Furthermore, titanium release may induce hypersensitivity in susceptible patients, which may have an undesirable impact on implant success.⁶⁴ However, this issue is still debatable and more clinical and further laboratory investigations are required.^24,64 Nevertheless, available literature indicates that Cp titanium has a long-term successful performance. In addition, the surface of the titanium implant, which was previously contaminated in the peri-implantitis case, was found to reintegrate with bone which was treated to remove the contaminant.^65,66,67

Cp titanium and titanium alloys can make up the entire implant or can be used as a substrate to which a coating of bio-active material, such as hydroxyapatite, is attached.

To speed up the healing process and osseointegration, implant surfaces are coated with ceramics.⁶⁸ The ceramics may be bio-active, such as calcium phosphates, or inert, such as aluminium oxide and zirconium oxide. Examples of calcium phosphate coating materials are hydroxyapatite and fluorapatite.⁶⁸ The bio-active ceramics are reported to act as osseoinductive materials which encourage and accelerate bone apposition around the implants. Furthermore, coatings that have similar properties to that of the extra-cellular matrix provide a favourable environment for osteoblasts, osteoclasts and their progenitor cells, that are responsible for the healing of bone.⁶⁹ Therefore, an early and strong implant stability is achieved and the risk of implant failure is reduced.⁶⁹

Ceramics are initially used in the additive methods in which ceramic coatings are added to the metal implant. However, high bond strength between the coating material and the substrate is required to withstand functional stresses and to avoid fragmentation of the coating materials.⁷⁰ It is found that hydroxyapatite mechanical failure occurs primarily at the interface between the metal substrate and hydroxyapatite coat (adhesive failure), irrespective of the implant design. This may have a negative effect on implant osseointegration.⁷¹ Nevertheless, the risk for hydroxyapatite-coat degradation and loosening (delamination) are still a remaining concern.

With improvement in technology, ceramic materials are extended for use as implant substrates. This is because ceramics such the yttrium-stabilized tetragonal zirconia polycrystalline has improved mechanical properties, superior wear and corrosion resistance, with a high flexural strength. These characteristics may make them a potential alternative to conventional titanium implants for supporting overdentures.⁷² Three types of zirconia-containing ceramic systems are most commonly used in dentistry; yttrium-stabilized tetragonal zirconia poly-crystals, alumina-toughened zirconia and zirconia-toughened alumina. However, these non-metallic materials are expected to replace Cp titanium and its alloys.⁷³ Nevertheless, based on their systematic review of literature, Andreiotelli and colleagues⁷⁴ concluded that ceramic, in particular zirconia, implants are not yet suitable as an alternative to titanium implants. Nevertheless, they potentially could be a successful material for use in implants, but this has not yet been supported by clinical investigations.⁷⁵ However, ceramics such as zirconia are used nowadays as abutments and crowns as they have good clinical outcomes.⁷³

It is not unreasonable to conclude that the prospective implant should be selected carefully and a restorative driven approach should be implemented to avoid an unwanted result.⁷⁶ Thus, thorough investigation should be carried out to guarantee the best possible outcome. The edentulous area should be viewed in three dimensions: mesio-distal, bucco-lingual and corono-apical. The mesio-distal dimension of the edentulous space should also be thought of as two interrelated spaces (inter-radicular and restorative). The inter-radicular space holds the implant and can be found between the roots of the two adjacent. Hence, a precise radiograph image of the area is important. The restorative space should be carefully investigated as it extends between the two adjacent teeth and accommodates the prospective restoration.

Abutment-implant connections (interfaces)

When an implant is put to function, it is connected with the restorative/prosthetic components. The connection type can be classified as internal or external. In the internal connection systems, the apical part of the abutment is inserted into an access hole in the implant platform. In the external systems, a protrusion located above the implant platform is inserted into a recess in the apical part of the abutment (Figure 8). The connection is also classified as a slip joint; when there is a space between opposing mating surfaces, and a friction fit when such space does not exist. The connection may be further categorized as a bevel (conical) joint or a butt joint (Figure 8).

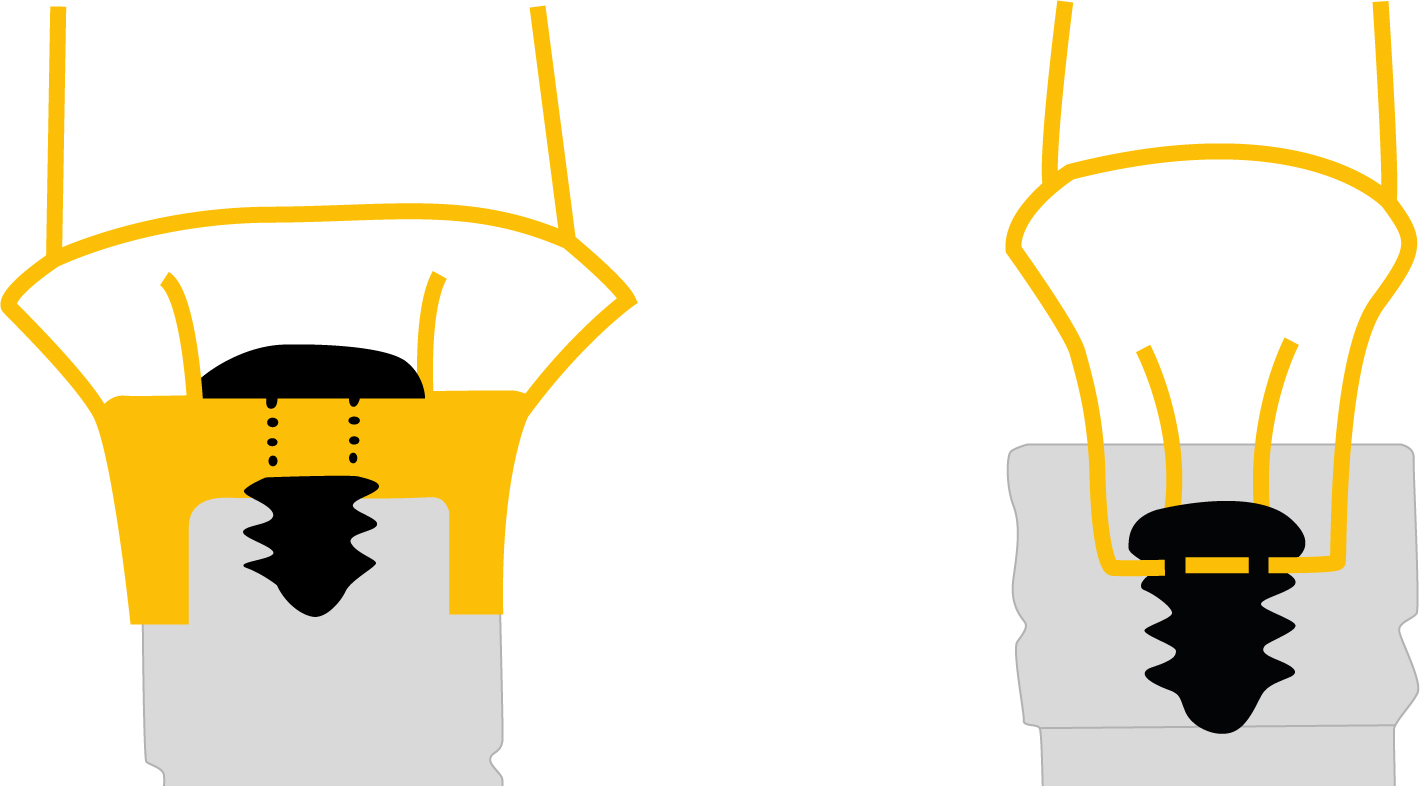

The connection may have an anti-rotational component, such as hexagonal, octagonal, cone hex, cylinder hex, cam tube and pin/slot or be without an anti-rotational device, such as a cone (Morse taper). The function of the anti-rotational component is to stabilize and prevent abutment rotation.^77,78 Likewise, the connection usually has a screw but is sometimes screw-less and relies entirely on the friction fit for its stability, such as Bicon® dental (Bicon Inc, Boston, MA, USA).

The first implant connection type used with a dental implant was described by P-I Brånemark.¹² It was an external hex, therefore consisting of six sides, each two adjacent sides make a 60-degree angle and had a height of 0.7 mm. The hex was originally used to carry and insert the implant into the prepared host bone (osteotomy). The hex was not aimed for use as an anti-rotational device, as the implants were mainly used to restore completely edentulous dental arches with implant-supported overdentures with multiple implants. Consequently, rotational displacement of the overdenture was not an issue. However, as the use of dental implants progressed and extended for use in replacing single and multiple missing teeth, the use of a guiding index and an anti-rotational device is needed. To fulfil this requirement the original external hexagonal connections were modified and are now available in different heights including 0.9, 1.0 and 1.2 mm and with various sizes. Furthermore, several types of internal connections were also introduced and are widely used nowadays.

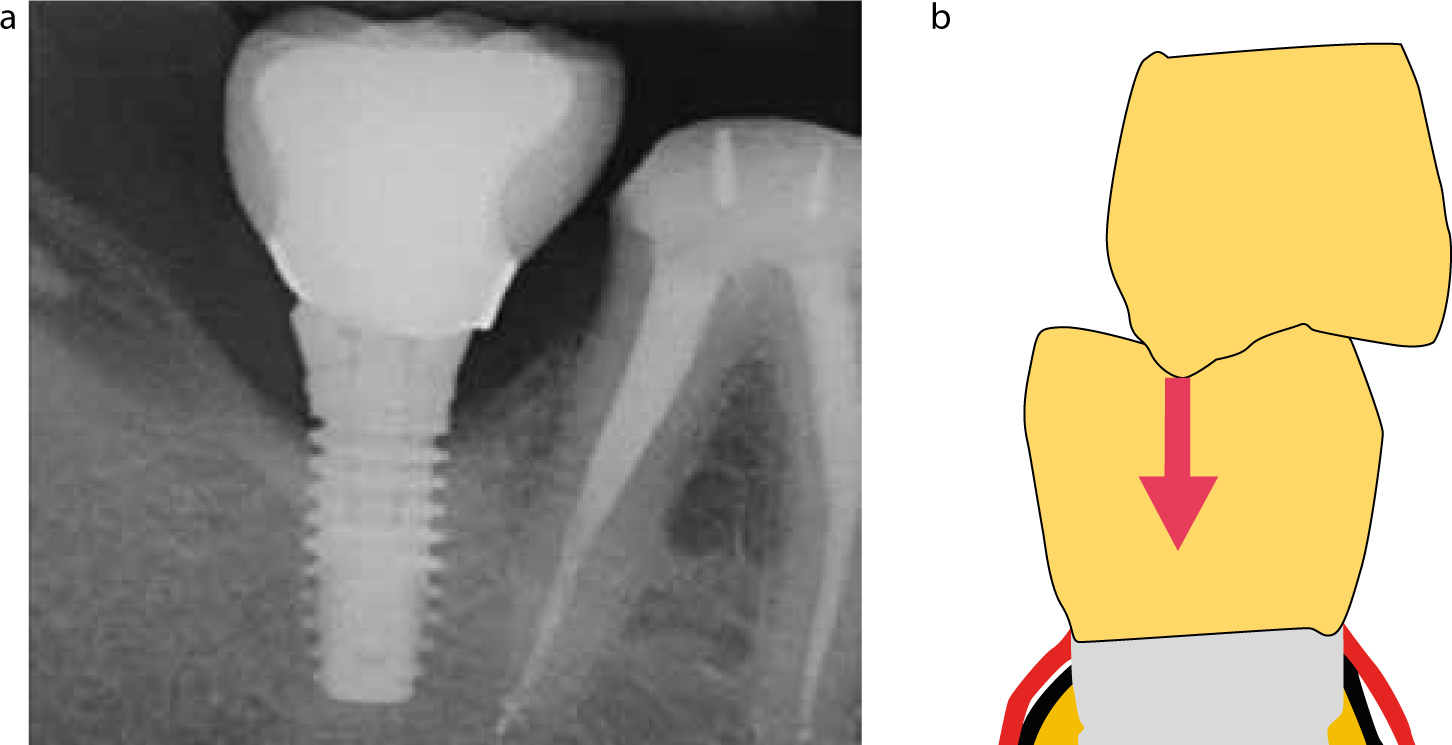

In general, when the connection is an internal type, the occlusal load is usually dissipated through the implant body and the screw is more likely to be protected from the imposed load. Loose screws were reported to occur less frequently with internal connections than with external ones.⁷⁹ However, the implant neck should be strong enough to resist such loads. Nevertheless, when the internal connection is used with a narrow implant, the connection is exposed to vertical or oblique loads. Although the screw itself may be protected from loading, the implant neck may not be able to resist such a load and will mechanically fail^80.81 as most of the occlusal forces are transferred to the implant walls.⁸¹

Screw-joint

When the implants and the restoration/prosthesis are connected together by a screw, the connection is known as a screw-joint.^16,77,82 For example, when the single restoration (crown) is screw-retained, one screw-joint is usually found to connect the restoration to the implant. When the restoration is cement-retained, there is also one screw-joint, but it is between the abutment and the implant (see below). The screw-joint is also found with the fixed implant-supported prosthesis in a similar way as that described for the cement- and screw–retained single implant-supported restoration. In the fixed implant-supported overdentures (FISOs), there is a screw-joint between the frame-work and the implants, whereas in the removable implant-supported overdentures (RISOs), there is a screw-joint between the attachment system and the implant.^6,16The attachment systems are discussed later in the article. In some situations when a screw-retained restoration is used, there may be two screw-joints: one between the implant and the abutment, and one between the abutment and the restoration/prosthesis.

When the screw is tightened, there are two opposing forces that act on the implant platform and the abutment or restoration/attachment that form the joint. One of these forces tries to hold the joint together and is known as the clamping force. The other force is called the separating force as it tries to disengage the screw-joint components away from each other. Hence, the two forces are acting against each other. As a tightening torque is applied to the screw, a tension (pre-loaded) is generated in the screw. Consequently, the screw shank and threads are tense and an elastic recovery is generated, thus creating the clamping force between the mating surfaces.^16,77,82

To obtain an effective clamping force, the tension created in the screw material should be less than that of the material's elastic limit (Young's modulus) so no permanent plastic deformation or screw fracture occurs. Maximum screw-joint stability can be achieved with a maximum pre-load when the proportional limit of the screw is approached. Thus, to obtain this, the applied torque should be 75% of the torque required to cause screw permanent deformation. In order to hold the implant components together, a maximum clamping force and a minimal separating force are required. Therefore, the clamping force overcomes the separating force.

Factors affecting screw-joint stability

Lack of screw-joint stability is reflected in loosening of the screw. It is considered as one of the most common problems associated with the use of implant-supported restorations.⁸³ One of many factors that play a role in the stability of the screw-joint is the friction coefficient of the materials used in the fabrication of the implant components, such as the abutment, implant and screw. The friction coefficient has an effect on the generated pre-loading. Tightening torque and consequently the developed pre-load is inversely affected by the friction between the mating surfaces.⁸⁴ In general, during screw torqueing, friction occurs between the implant surface and the opposing abutment surface, between the head screw and the abutment surface and between the screw threads (male) and the implant threads (female). As such, when a screw is tightened, only 10% of the torque is converted into screw pre-load, while the other 90% of the tightening torque is lost as friction.^84,85In order to maximize pre-loading, the friction between mating surfaces should be reduced. This can be achieved by coating the mating surfaces with other materials, such as carbon film or the screw with tungsten carbide. This process is known as dry lubrication and the coating material is denoted as a dry lubricant. Both carbon and tungsten carbide coatings were reported to reduce the friction coefficient and improve pre-loading.⁸⁴Torq-Tite® abutment screws (Nobel Biocare, Uxbridge, UK) are made of titanium alloys and are coated with a carbon layer and Gold-Tite® abutment screws (BIOMET 3i) are titanium screws with a gold-plated surface. Both screw types were found to be associated with lower friction coefficients and greater pre-load values than the conventional gold alloy and titanium alloy screws.⁸⁶ Likewise, higher pre-loads were associated with gold-coated screws when compared with that obtained from screws made of uncoated gold or titanium alloy for all insertion torques, as well as when the screws were re-tightened.⁸⁷

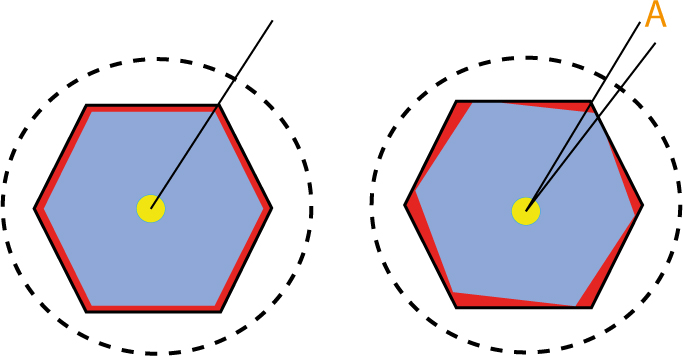

Manufacturing tolerance is another factor that affects the screw-joint stability. It is defined as unplanned deviations from the theoretical dimension of the shaft and its mating recess as some deviations from a perfect fit are expected, but not planned. Hence, this indicates an insignificant value of misfit between the matting surfaces. This misfit allows for what is known as rotational freedom (play) to occur. The rotational freedom is calculated by the formed angle between the clockwise and anti-clockwise rotation of the anti-rotational components of the screw-joints (Figure 9). The rotational freedom may vary from 1.6 to 5.3 degrees.⁸⁸ The most stable and predictable screw-joint may be expected when the rotational freedom is lower than two degrees.⁸⁹ Hence, the produced rotational freedom affects the stability of the screw-joint.

Furthermore, the presence of a micro-roughness on the implant and abutment mating surface, which is worn away as a result of screw torqueing, leads to what is called settling (embedment relaxation). Consequently, part of the clamping force is lost and the screw becomes loose. The mean loss of pre-load may be up to 40% of the original pre-load value 15 hours after screw torqueing.⁹⁰ To reduce the settling effect, it has been suggested that the implant screws should be retightened ten minutes after the initial torque application as a routine clinical procedure.^91.92 All screw types were reported to display some decline in pre-load with repeated tightening. This decline occurs irrespective of the insertion torque and abutment type.⁸⁷ As screws lose pre-load following placement, their re-tightening is required from time to time during the restoration's life.

The screw pre-load should be high enough to maintain the joint integrity and reduce the possibility of the screw loosening and fracturing.⁹³ However, when excessive torque is applied, slippage between the screw threads (male) and the implant internal threads (female) occurs, which consequently leads to screw loosening.⁹⁴ Inversely, too little torque or a lower torque value which cannot produce the required screw pre-loading needed to hold the mating surfaces together exhibits greater micro-motion at the screw-joint,⁹⁵ which consequently causes screw loosening and may lead to its fatigue and fracture. Therefore, it is vital to use the manufacturer's recommended tightening torque, which should be within the elastic range of the screw's materials, as mentioned earlier.^96,97 It is also essential to ensure consistent tightening torque values are applied. Therefore, torque gauges (control) should be used and manual torqueing should be avoided.⁹¹ It is also important to calibrate the torqueing devices to obtain consistent torqueing.⁹⁸

Torqueing the screw should be carried out carefully and a counter-torque device should be used to avoid disturbing the osseointegration. Hence, the use of a counter-torque device is recommended as it reduces transmission of the tightening torque to the implant-bone interface. On average, about 90% of the recommended pre-load tightening torque is transmitted to the implant-bone interface when the counter-torque device is not used. This value is reduced to only 10% when the counter-torque device is used.⁹⁴

Overloading of the restoration may lead to screw loosening and failure. Therefore, the occlusion should be adjusted and occlusal forces should be directed along the long axis of the implant, whenever possible (Figure 10). This can be achieved by construction of a restoration in which its occlusal morphology is constructed according to the mechanical principals that favour this concept. For instance, the cuspal inclination should be flattened and the incisal guidance made shallow to avoid bending moments caused by the lateral component of the occlusal forces.⁹⁹ The occlusal table of the prospective restoration may be reduced by 30–40% of the tooth being replaced (Figure 10) and cantilevering the restoration should be avoided. Use of an occlusal splint is recommended for patients with parafunctional habits such as bruxism. The implant should be placed in the site that was previously occupied by the tooth being replaced, and surrounded by an adequate amount of bone (Figure 7). It should also be oriented along the long axis of the tooth being replaced and within the occlusal table. However, when a molar tooth is replaced, the use of two implants may be considered in order to dissipate the occlusal loads satisfactorily, as mentioned earlier (Figure 7).

Some of the other factors that may affect the screw-joint stability are displayed in Table 4.

Platform switching concept

This concept was based on clinical observations where the implant platform diameter was wider than the abutment.¹⁰⁰ It is assumed that, when this principle is used, the crestal bone loss after implant placement is less than when the implant platform and the abutment pose a similar diameter.¹⁰⁰ This concept is theoretically explained on the bases of moving the micro-gap between the platform and the abutment inward from the outer edge and consequently away from the bone.¹⁰¹ It also results in an increase in horizontal soft tissue dimension, which may protect the bone crest and limits its resorption.¹⁰² It also shifts the stress between the implant and abutment away from the cervical bone-implant interface, which may also help in maintaining the crestal bone level.

A recent meta-analysis,¹⁰² including 13 human randomized clinical trials (RCTs), has shown a significantly less mean crestal change at platform-switching implants, compared with when the implant platform dimensions matches the abutment (0.49 mm versus 1.01 mm). However, the use of platform-switch did not preserve the crestal bone better than when the switching concept was not used, when thin mucosal tissues on crestal bone were present.¹⁰³ Furthermore, the stress within the screw-joint was found to increase when the platform-switching concept is implemented. This may lead to failure of the screw-joint connection.^104,105 Therefore, this concept should be used with substantial care.

Types of restorations/prostheses for missing teeth

Implant-supported restorations (prostheses) may be used to replace a single or multiple missing teeth, as well as completely edentulous mandible and maxilla. Therefore, when a patient whose missing teeth were replaced with an implant-supported restoration attends the dental clinic, one of the following restoration/prosthesis is usually present:

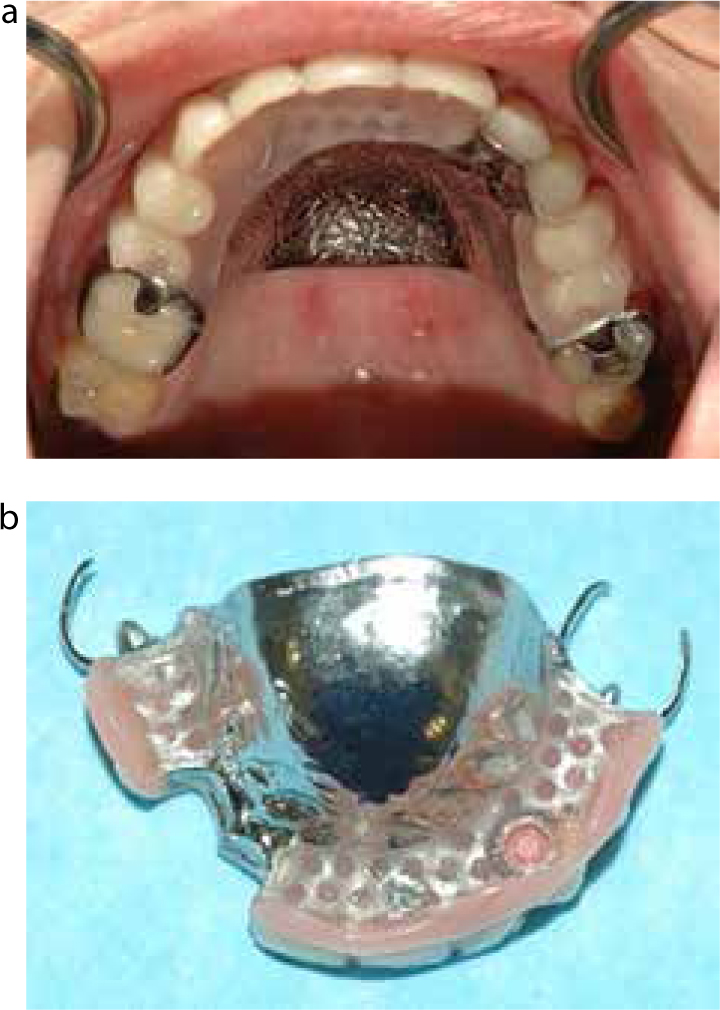

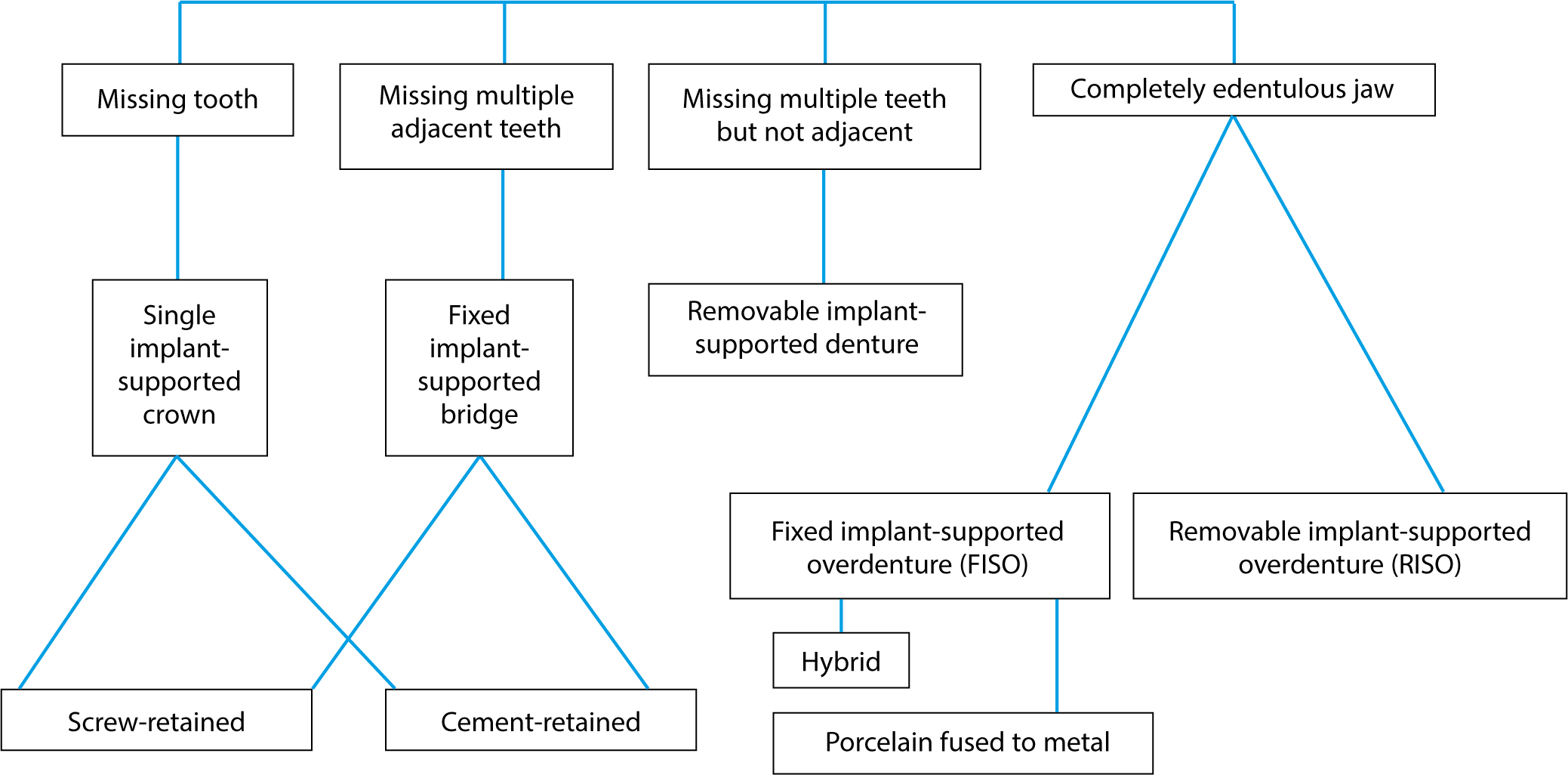

Treatment options for replacement of missing teeth with dental implants are shown in Figure 14.

The abutments

The restorations that consist of crowns or fixed prostheses (bridges), and that are supported by implants, may be divided into two types, depending on how they are connected to the implants; cement-retained and screw-retained. As mentioned earlier, in the cement-retained restoration the abutment is required to connect the restoration to the implant, while in the screw-retained restoration the abutment and the restoration form one unit. In addition, there are five types of abutments which are available for use in single and fixed implant-supported restorations.^16,35 A summary of these abutment types can be found in Table 5.

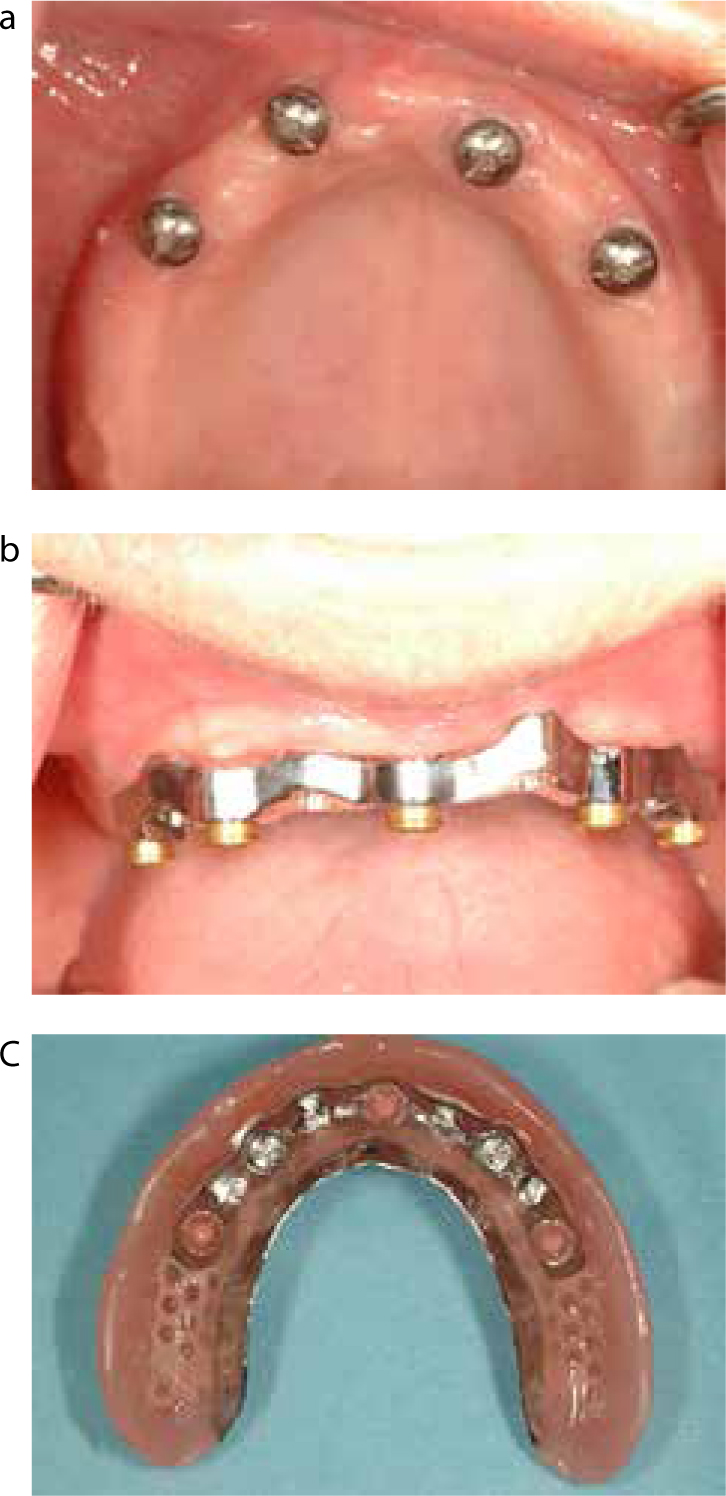

The attachment systems

An attachment is defined as a mechanical device used for the fixation, retention and stabilization of a dental prosthesis.¹¹² It is used with implant-supported removable partial dentures and overdentures. The attachment usually consists of two parts. One part is attached to the implant, while the other part is attached to the prosthesis. Five types of attachment systems are available and compatible with the main implant systems. The attachment systems that are commonly used with RISOs include: bar/clip, balls, locators, magnet and telescopic crown.^108,112 The use of a bar system allows splinting of two or more implants together. The other attachment types may be used individually and also in combination with the bar system. The attachments are attached to the implant by screws, resulting in a screw-joint. Features of attachment systems used for RISOs are displayed in Table 6.

Peri-implant tissue response to bacterial insult and peri-implant diseases

Despite their high success rate, implant failures are also reported to occur. Several factors that have already been mentioned earlier which influence such success should be considered when treatment is planned.⁷ The implant may fail before it is put to function as a result of its failure to integrate with the peri-implant tissue during the healing stage. This type of failure is categorized as an early failure. The implant may also lose its integration and fail at a later stage, months or even years after implant placement. This is known as late failure.¹¹³ The criteria for dental implant success are displayed in Table 7.

One of the complications that is reported to affect the peri-implant tissue is caused by the inflammatory response of this tissue to bacteria that forms a biofilm on the implant surface.^114,115 It occurs when the balance between the host's defence and the bacterial load shifts in favour of the bacteria. This tissue response may be limited to the peri-implant soft tissues (mucosa) or may also extend to and affect the peri-implant bone and lead to its resorption.

Both tissue responses to bacterial insult are collectively known as peri-implant diseases, and are classified as peri-implant mucositis or peri-implantitis.¹¹⁶ In peri-implant mucositis, the inflammatory response is not essentially different from that which occurs in gingiva when it is exposed to pathogenic bacteria and leads to gingivitis.¹¹⁷ Therefore, in principle, peri-implant mucositis resembles gingivitis.

The onset and progression of mucositis may be affected by a decrease in the vascularity and an increase in collagen to fibroblast ratio in the peri-implant connective tissue, and by the way they are arranged around the implant surface.¹¹⁷ Clinically, peri-implant mucositis is characterized with bleeding on gentle probing. It is a treatable disease and the damage is reversible. However, it may progress into peri-implantitis if untreated.^6,7 There are no major differences in the bacteria that were found to be associated with mucositis and peri-implantitis. This may indicate that mucositis is the origin of peri-implantitis.¹¹⁷

On the other hand, peri-implantitis occurs when both the peri-implant mucosa and bone are affected. It resembles chronic periodontitis in natural teeth. However, some differences do exist. For instance, the crestal bone loss occurs in a circumferential fashion around the affected implant, unlike bone resorption seen in chronic periodontitis. The circumferential shape of the peri-implantitis lesions may be attributed to the lack of periodontal ligament, and to the surface topographies of the involved implants which facilitate the spread of infection apically as well as laterally.^6,117 The extent and the composition of cells in the peri-implantitis, as well as its progression rate, may differ from that which is commonly seen in chronic periodontitis.^6,7.117 For instance, the protective connective tissue capsule, which was found to separate the periodontal lesion from the alveolar bone around teeth in the case of chronic periodontitis, does not exist around implants.⁷ Therefore, the self-limiting process is not present around implants, which may provide an explanation for the fast development and progression of the peri-implant disease.

It should be mentioned that dental implants may fail as a result of these diseases if they are not treated as they lead to bone resorption, and eventually to mobility and failure of the affected implant.^8,9,10

It is important to remember that resorption of peri-implant crestal bone occurs within the first year of implant placement and continues to occur to a lesser degree afterwards. It occurs irrespective of the implant placement method (sub-merged or non-submerged). Based on a 15-year retrospective study, Adell and colleagues¹¹⁹ reported that crestal bone loss during the healing period and the first year after connecting the prosthesis, was about 1.5 mm. Thereafter, there was only 0.1 mm bone loss annually. In another study, an average of 0.9 mm crestal bone was lost during the first year and no more than 0.07 mm annually in the following years.^120,121 The exact cause of this bone loss is still debatable. Nevertheless, the current literature presents several factors which may contribute to this loss, such as surgical trauma, reformation of a ‘biologic width’ and presence of a rough/smooth interface. However, the factors that are most commonly cited to cause such bone resorption are displayed in Table 8.

Role of the patient and the dental professionals

Each dental implant and restoration/prosthesis should be evaluated clinically and radiographically in a similar manner to the treatment of periodontal disease. Oral hygiene should be observed and regular check-ups should be scheduled. Therefore, after a physiologic tissue remodelling period and at the time of prosthesis installation, clinical and radiographic examinations of the peri-implant tissue should be carried out and used as a baseline to monitor any change in the tissue and to intervene if required. When any deviation from the norm is found, intervention is then considered and carried out. In general, oral hygiene should be monitored and different oral hygiene aids should be demonstrated and the patient encouraged to use them as often as required.

In general, care for dental implants has two phases: patient self-care and professional clinical maintenance aspects.¹²² It is the responsibility of the patient to maintain good oral hygiene. Patient self-care consists of a daily oral hygiene procedure in which toothbrush (manual/powered and single tufted ones), auxiliary aids such as inter-proximal brushes, dental floss/tape and mouthrinses may be used. A combination of these aids, whenever it is necessary, should be considered and demonstrated. For instance, powered toothbrushes, which have different interchangeable bristle heads (flattened, rubber cup-like, short- and long-pointed in shape) that suit different clinical situations may be used. When they are used properly, the result is a healthy environment around the implant. However, it is important to mention that limiting the number of auxiliary aids, their simplicity and the time required for their use are important for patients' compliance as they play a vital role in this aspect.¹²³

As already mentioned, dental implants are affected by and may fail as a result of the peri-implant disease which can be detected only by regular clinical and radiographic examinations. Therefore, when an implant is affected by the peri-implant disease, the patient should be made aware of the situation and a treatment plan should be implemented and regular follow-ups arranged. However, there is a lack of consensus on how peri-implant disease is treated. Nevertheless, the Cumulative Interceptive Supportive Therapy (CIST) protocol that was presented by Lang and colleagues¹²³ may be followed when peri-implant disease is found. The CIST is a systemic comprehensive protocol. This protocol is based on clinical parameters such as peri-implant pocket depth (PIPD), bleeding on probing (BoP) and peri-implant bone loss on which clinical diagnosis is made. Accordingly, a treatment plan and continuous follow-up strategy are constructed. A summary of this protocol is presented in Table 9. However, the management of peri-implant diseases is not within this article's scope.

Complications associated with implant-supported restorations and prostheses

Several biological and mechanical complications are reported with the use of dental implants to support/retain restorations and prostheses. For instance, screws used to connect different combinations of the implant-supported restorations/prostheses may become loose and need to be retightened or replaced. Screw loosening may be due to it not being adequately torqued or over-torqued or due to micro-movements that occur as a result of the manufacturing tolerance.^33,35 An under-torqued screw fails to deliver the tension that is required to produce the optimum clamping force between the screw-joint components. Re-tightening is there for required. Screw re-tightening can be easily achieved when the restoration is a screw-retained type. However, when the restoration is cement-retained, cutting the restoration to gain access to the screw may be the only solution, especially when permanent cement is used. When a provisional cement is used, the use of crown removal may be tried.³⁵

When the screw is over-torqued to a degree which places the screw material in tensile stress that exceeds its elastic limit, the screw may be plastically elongated. This leads to screw loosening or even to its fracture. In the former situation, the screw may be replaced, but in the latter situation the removal of the screw may not be possible and the treatment is complicated, which is beyond the scope of this article. To minimize the occurrence of screw-loosening or fracture, the recommended torque should be implemented using a torque driver that ensures that the right amount of torque is achieved.³³

Mechanical superstructure failure may also occur when the material's mechanical properties and/or thickness is not optimum or when the occlusal design is not correctly designed. The superstructure failure may also occur as a result of lack of passivity when several implants are connected together. The lack of passivity may overload the implants and place the superstructure under tremendous pressure, that may lead to its failure. To check for passivity a test called a ‘Sheffield test’ or a ‘one-screw test’ is usually carried out. However, the passivity problem may be avoided by the use of computer-aided design/computer-aided manufacture (CAD/CAM) technology.

Acrylic or porcelain veneer may also fail when the bulk of these materials are inadequate. For instance, when a limited vertical restorative space does not allow the use of the optimum thickness of the material. Depending on the degree of mechanical damage of the restoration/prosthesis, fracture of porcelain may be repaired intra-orally using the Co-Jet® system (3M ESPE, St Paul, Mn, USA) and composite resin material. It is considered as a reliable method for such repairing. Fracture of acrylic may also be repaired using composite resin materials. However, when the metal frame-work is fractured, the only solution is its removal.

RISO attachment failure and complications are mostly of a mechanical nature and include:³⁵

Wear of the attachment component is a problem that may reduce the overdentures' retention and, consequently, a replacement of the worn attachment becomes a necessity. Less prosthetic maintenance was required with the splinted (bar/clip) designs than with the unsplinted ones.¹²⁴ Nevertheless, the use of bars may complicate the hygiene matter¹²⁵ and it may be associated with a misfit of the framework, which has the potential to generate unwanted stress on the attachment, the implant, the retained screw and also the peri-implant bone.

Relining of the denture is also required regularly and may need to be carried out every few years to compensate for the changes in the alveolar ridge that may occur. Failures of the implant-supported fixed dental prosthesis also occur. The failures include screw loosening and fracture of the superstructure. Speech may be affected when tissue loss is severe. The compensation of lost tissue with acrylic or porcelain is usually required. This compensation may lead to an increase in plaque accumulation and tissue inflammation as the oral hygiene procedure is compromised. Meticulous effort from the patient is required. Calculus deposition once formed cannot be removed by a daily oral hygiene. Therefore, professional intervention is necessary. This intervention consists of the use of scalers with plastic tips to avoid scratching the implant components.³³

Conclusion

Dental implants are widely used and considered as one of the options by which missing teeth are replaced. They are used successfully to replace single and multiple missing teeth as well as a completely edentulous jaw. The use of dental implants are increasing and dental professionals are more likely to see patients who have implant-supported restorations/prostheses. Therefore, basic knowledge of dental implants is necessary for dental personnel. Several factors are known to affect success of any implant system. These factors may be related to features locally, such as bone quality and quantity. Other factors are related to the surgical method by which an implant is placed or which are related to the implant system used, such as length and diameter of the implant. Furthermore, dental implants are affected by peri-implant diseases which, if not treated, can cause the implant to fail. It requires continuous monitoring, regular check-ups and may require professional interventions, the time of intervention being vital.

The success of any implant-supported restoration/prosthesis is dependent on the interaction between the patient and the dental personnel. Therefore, maintaining good oral hygiene and committing to regular check-ups are the responsibility of the patient. On the other hand, it is the responsibility of the dental personnel to examine the implants and the restorations/prostheses clinically and radiographically. It is also the responsibility of the dental practitioner to demonstrate and educate the patient on how to look after the implant and to tailor check-up recall visits according to the patient's needs.

Mechanical failures associated with implant-supported restorations/prostheses, such as screw loosening or fracture and chipping of porcelain veneer and fracture of the superstructure, are not uncommon. Loss of retention of the implant-supported overdenture are common clinical findings which may make the patient seek treatment. On the other hand, plaque accumulation and mucosal hyperplasia in the per-implant site do not necessarily promote the patient to look for treatment. Consequently, professional evaluation and assessment are required to discover such conditions. This necessitates recall visits and check-ups which allow the dental personnel to intervene in the proper time and to rescue the implant and its restoration/prosthesis. Therefore, the dental personnel should be prepared and able to diagnose and to deal with such complications and to refer the patients when required.
