From Volume 44, Issue 3, March 2017 | Pages 182-188
Cone Beam Computed Tomography (CBCT) has recently seen an expansion in use, however there are few robust, evidence-based guidelines to inform practitioners. This article reports the case of a large dentigerous cyst in the maxilla affecting the eruption of multiple teeth, considers the use of CBCT in the management of such lesions, and discusses guidelines on the use of CBCT in dentistry.
Radiography is important in the diagnosis and management of most oral and dental pathology, and is often invaluable for lesions of the jaw whose precise location and nature may be difficult to appreciate clinically. For most of the early 20th century, plain film dental radiography was the mainstay, before the introduction in the latter part of the century of tomographic techniques. It wasn't until around the turn of this century, however, that cone beam computed tomography (CBCT) became commercially available within dentistry, and its use has been increasing over the last decade particularly.1
When localizing a lesion clinically, cortical expansion may give an indication of whether it lies nearer the buccal or palatal cortical plate, and plain film radiography is useful in imaging small lesions, often using parallax techniques. Plain film radiography is cheap and accessible and exposes the patient to a comparably lower dose than other modalities such as CT. However, there may be difficulty in fully appreciating spatial relationships where lesions are complex. CBCT can provide high resolution three dimensional imaging at a much lower dose than conventional multi-detector CT, however, the radiation dose received is significantly greater than conventional radiography. The effective dose received from a single intra-oral radiograph may be less than 1.5 microSieverts (μSv) when adequate dose reduction techniques are used, compared to between 2.7–24.3 μSv for a dental panoramic radiograph. Doses for CBCT investigations are between 11–674 μSv for small to medium field dento-alveolar views, and 30–1073 μSv for large field craniofacial views.2 The reported ranges in dosimetry are largely due to differences in CBCT equipment.
Because of the rapid expansion in the use of CBCT, the evidence base has been slow to keep pace with practice. In 2014, Horner et al3 undertook a systematic review of guidelines for CBCT use in dental and maxillofacial radiology and found 26 publications which met their inclusion criteria, of which only two were evidence based. The recommendations of the majority of the guidelines identified were that CBCT should be reserved for use when the question for which imaging is required cannot be answered by conventional radiographic techniques alone. The one exception to this was that a small minority of guidelines for CBCT use in implant planning recommended universal use. This was in disagreement with most of the guidelines concerning implant planning where a more selective approach was recommended.
The dentigerous cyst (DC) is the second most common odontogenic cyst of the jaw, after the radicular cyst, and accounts for 20–30% of all jaw cysts. The cysts are thought to arise from the reduced enamel epithelium of unerupted teeth and are most common in the first to third decades and arising from the third molar, particularly in the mandible.4,5,6
Discovery is often due to a chance radiographic finding or investigation into the delayed eruption of a permanent tooth; there may be bony expansion, displacement of affected teeth and pain may be present if the cyst becomes infected. Lesions typically appear radiographically as well corticated, unilocular radiolucencies arising from the cervical region of unerupted teeth.7 Generally, a radiographic follicular enlargement of greater than 3 mm is suggestive of cystic formation and lesions are usually solitary.
Histologically, lesions typically have a thin, sometimes bilaminar stratified epithelium which may occasionally keratinize by metaplasia. The cyst wall is usually composed of fibrous connective tissue and can be quite vascular, usually with little inflammatory infiltrate. Beyond this there may be a wall of woven bone.7
There are several strategies for managing DCs, each with their own merits. Decompression of large lesions may be performed to reduce their size, particularly where there is an intimate relationship to other structures, before further management.8,9 Marsupialization may be performed, where the cyst lining is opened and connected to the oral mucosa; this may allow the tooth to be maintained, however the entire lining is not available for analysis. Marsupialization may be appropriate in large cysts where enucleation would affect the integrity of the jaw.10,11 Enucleation is the most common approach which involves the extraction of the affected tooth and allows submission of the whole cyst lining for histopathological examination. Following treatment, there is usually a low risk of recurrence.6
A 9-year-old boy presented to the Paediatric Dentistry Department of Newcastle Dental Hospital after being referred from his general dental practitioner following delayed eruption of the permanent upper left central and lateral incisors. There was a history of dental trauma to the upper left primary central incisor and of removal of a supernumerary tooth in the left anterior maxilla. The medical history was unremarkable. Examination showed a retained and non-mobile ULA and ULB which were discoloured.

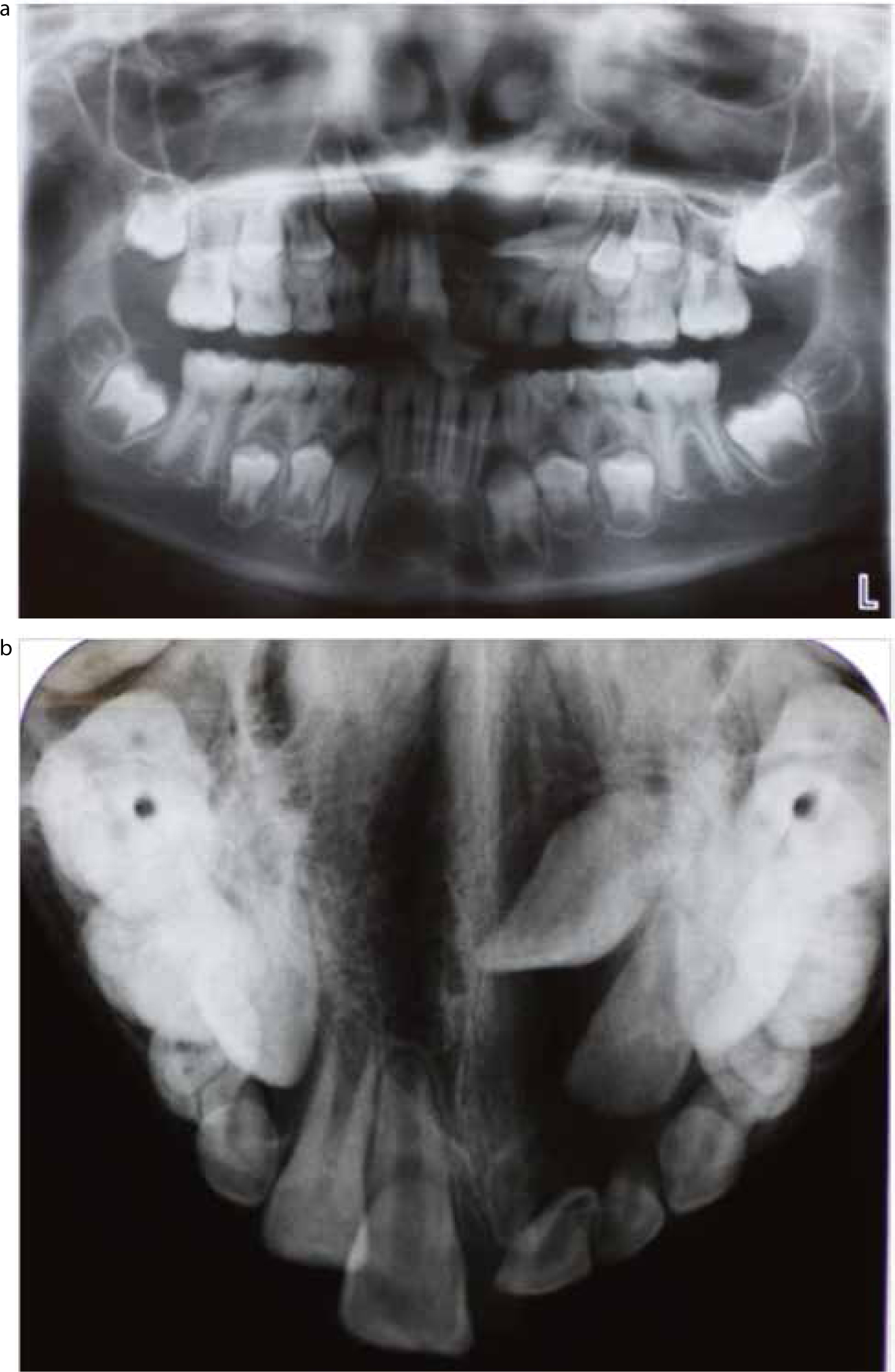

Radiographic examination using an upper occlusal view and dental panoramic radiography (DPR) showed a well-defined, corticated, uniformly radiolucent lesion involving the UL1, UL2 and UL3 and enlarged follicles (<3 mm) associated with the UR3, LL3 and LR3 (Figure 1). As the extent and origin of this lesion could not be fully visualized using plain film radiography, a CBCT investigation was performed using a Newtom VGi machine (QR SRL, Verona, Italy). The radiographic report showed a well corticated radiolucent lesion surrounding the crown of the UL2 and impeding eruption of the UL1 and UL3 (Figure 2), most likely a dentigerous cyst arising from one of these teeth. Enlarged follicles associated with the UR3, LL3, LR3, LL7 and LR7 were also noted.
As the lesion involved several teeth and had potential orthodontic implications, an orthodontic opinion was obtained. The consensus was that, as the UL2 was of poor prognosis due to its horizontal angulation and proximity to UL3, it would be wise to consider extraction of this tooth. The plan would then involve enucleation of the lesion, submission of the specimen for histopathological analysis, and closed exposure of the UL1 and UL3 using bonded gold chains.
Treatment was carried out under day-stay general anaesthetic. The ULA and ULB were extracted and a mucoperiosteal flap was raised to expose the site. The lesion was found to have already penetrated the buccal cortex of the maxilla and bone was removed to expose the cyst lining (Figure 3 a–c). The lesion was enucleated and was found to be arising from the follicle of the UL2 which was extracted (Figure 3 d, e). The UL1 and UL3 were identified, the crowns exposed to their maximum diameter and gold chains were bonded with composite resin (Figure 3 f–h). The flap was replaced and closed with resorbable sutures and the gold chains routed through the sites of the extracted ULA and ULB (Figure 3 i).
The patient was reviewed from a surgical point of view at 2 weeks; he was without symptoms and healing was progressing well. Histopathological examination of the submitted specimen showed an inflamed cyst, lined by non-keratinized squamous epithelium resembling reduced enamel epithelium fitting with a diagnosis of an inflamed dentigerous cyst.
Orthodontic follow-up was planned with a view to encouraging eruption of the UL1 and UL3 by orthodontic traction and aligning the teeth with fixed appliances. Depending on the relationship of the teeth once they have been brought into the line of the arch, consideration would be made as to whether it is more appropriate to open the space left by the missing UL2 and place a prosthetic replacement or closure of the space and camouflage of the UL3.
The usual presentation of a DC is following the investigation of an unerupted tooth and, in this case, the eruption of three teeth was affected. The spatial relationship of the teeth was complex and it was not possible to appreciate this fully on plain films. The use of CBCT meant that the relationships of the teeth could be fully appreciated in three dimensions and made the surgery much easier to plan. It also meant that assessing the orthodontic prognosis of the UL2 was easier. This highlights the value of CBCT imaging in cases where plain film radiography is ambiguous.
The risk of using ionizing radiation in any patient must be balanced against the clinical benefits, and investigations must only be prescribed where there is likely to be a benefit to the patient's treatment and outcomes. This is especially pertinent when the radiation dose of CBCT compared to plain film techniques is considered. It is often nice to have three dimensional images to peruse before beginning treatment, but the question remains – does it really benefit the patient, and is that benefit sufficient to offset the risk? It may be easier to arrive at an answer of ‘yes’ in some cases than in others; for example for a simple solitary radicular cyst, two periapical views may suffice before root-end surgery, however, in the present case, CBCT allowed more certainty about which tooth was affected and how the lesion related to the teeth. This allowed the surgery to progress more easily, perhaps saving theatre and anaesthetic time, and simplified the consent process as there was more certainty for the patient about which tooth would be lost.
Balancing the risk to benefit ratio is particularly important in paediatric patients, because the lifetime risk of stochastic effects from radiation exposure, such as cancer, is greater with decreasing age. For a certain dose of radiation, the risk to a patient between 10 and 20 may be 2 times greater than for the average 30-year-old patient and this is 3 times greater for a patient under 10.12
The apparent scarcity of robust, evidence-based guidelines despite the widespread use of CBCT is worrying, however the guidelines published by the SEDENTEXCT (Safety and Efficiency of a New and Emerging X-ray Modality) project in 20122 are comprehensive, evidence based and scored well compared to other guidelines when assessed using the AGREE II guideline assessment instrument13 in the systematic review by Horner et al.3 The International Commission on Radiological Protection (ICRP) published guidelines on CBCT more recently,14 and these were not included in the review by Horner et al. In agreement with others, the ICRP guidelines recommend that CBCT is used only to answer a specific question compared to other modalities, and that imaging should be optimized by using a small field of view wherever possible.
It is possible that, once the cyst had been enucleated, the two remaining teeth would have erupted into place, however, exposure may help them erupt faster into the mouth. Since the site was already exposed, if the procedure was found later to have been required, this way a second procedure would be avoided. There appears to be no quality evidence to favour closed or open exposure of palatally displaced canines,15 and there is a similar paucity of evidence in cases such as the present case. A closed technique was chosen with the intention of maximizing the amount of keratinized mucosa surrounding the tooth to optimize the gingival architecture on eruption.
Interestingly, in this patient it was noted that the UR3, LL3 and LR3 had enlarged follicles radiographically, although they were not ectopic in position. A supernumerary in the anterior maxilla had also been present. This combination of dental abnormalities may suggest a genetic component and it would be wise to review the eruption of these teeth to ensure that there is no further follicular enlargement or ectopia. Eruption would be considered late in the maxilla after 12.3 years in girls and 13.1 years in boys,16 and earlier in the mandible.
Multiple cysts are not common, and have been reported in large case series at between 1.6% and 11%4,5,6 of DCs. Multiple DCs are often thought to be associated with syndromes such as basal cell naevus syndrome, cleidocranial dysplasia, mucopolysaccharidosis, Marteaux-Lamy syndrome and Hunter's syndrome, however, in the above studies no multiple DC cases were associated with any syndrome. Case reports of multiple DCs appear to support this finding,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31 which is somewhat contrary to popular belief.
This case shows the value of CBCT in assessing complex relationships of unerupted teeth, lesions of the jaw and in treatment planning. However, it highlights the need for adequate justification before such investigations are requested. Evidence-based guidelines do exist for the use of CBCT in dental and maxillofacial radiology, such as those produced by SEDENTEXCT and ICRP, and these should be used when considering the use of CBCT imaging.
The use of closed versus open exposure is dependent on the operator but either may be beneficial in aligning ectopic or teeth whose eruption has been impeded. The common assumption that multiple DCs are most commonly associated with syndromes may in fact be false.
Appropriate consent was obtained for use of case details, photographic images and radiographs. No funding was received in relation to this article. The authors declare no conflicts of interest.
