Abstract

Dental implants have become an increasingly prevalent treatment option for the replacement of missing teeth. Multiple studies have reported survival rates for implant supported restorations above 90% after 10 years. However, dental implants are not without complications and with their increasing placement, it is more likely that primary care dentists and dental care professionals will encounter patients presenting with problems. The first article in this two-part series provides an overview of implant components and relevant anatomy, as well as outlining a systematic method of undertaking a clinical and radiographical examination of dental implants.

CPD/Clinical Relevance: This series highlights important aspects of dental implants and their associated restorations that dental care professionals should consider when examining and maintaining such restorations, as well as providing an overview of associated biological and mechanical complications.

Article

Dental implants have become an increasingly prevalent treatment option for the replacement of missing teeth.1 They can be used to retain and support both fixed and removable dental prostheses, with some studies showing implant fixture survival rates above 90% after 10 years.2,3,4,5 The positive impact that such prostheses have on a patient's oral health-related quality of life has also been demonstrated over shorter follow-up periods.6,7,8 It should be noted that success and survival are not analogous terms when considering dental implants, and they can be applied to either the implant fixture or the attached prosthesis. Survival with regards to the implant fixture means that it is simply present in the mouth, with possible bone loss, and success means the implant is functional without mobility, bone loss or symptoms.9 With increasing implant placement and good success and survival rates, it is likely that patients with dental implants will be encountered within primary care.

Guidance from the General Dental Council (GDC) in ‘Preparing for Practice – Dental team learning outcomes for registration’ states that upon registration, a dentist will be able to ‘recognise and explain to patients the range of implant treatment options, their impact, outcomes, limitations and risks’. In addition to this, dental therapists and dental hygienists will be able to ‘Describe the risks related to dental implant therapy and manage the health of peri-implant tissues’.10 Clarification was sought from the General Dental Council regarding whether the learning outcome of ‘manage the health of peri-implant tissues’ was also applicable to dentists. The response was a yes, and the guidance document is in the process of being updated to reflect this.

Recent guidance from the Royal College of Surgeons highlights that currently, NHS-funded dental implant treatment includes the active course of treatment related to the episode of care, but does not extend to the post-treatment maintenance costs.11 It goes on to state that patients accepted for NHS-funded dental implant treatment should be made aware of the ongoing maintenance costs at the outset of treatment. As with other dental treatment undertaken within the hospital setting, upon completion of implant treatment, patients will be discharged back to their GDP who will be responsible for the monitoring and maintenance.12 Preventive and supportive care for patients with dental implants are defined as level 1 complexity treatment in national commissioning guidelines13 and should therefore be undertaken in primary care by the general dental practitioner.

Anecdotally, the authors are aware of general dental practitioners being wary of probing or scaling around dental implants due to concerns regarding their indemnity. Therefore, clarification has been sought from indemnity providers regarding the level of cover for implant maintenance and monitoring as part of their standard membership for general dental practitioners, outlined in Table 1. It should be noted that, as a caveat to indemnity provision, the dentist should be working within their scope of practice.


MDDU DDU TDS BDA DP
Monitoring of implants including probing
Supragingival scaling in the treatment of peri-implant mucositis
Subgingival scaling in the treatment of peri-implantitis

MDDU: Medical and Dental Defence Union; DDU: Dental Defence Union; TDS: Taylor Defence Services Ltd; BDA: British Dental Association; DP: Dental Protection.

It is the responsibility of the provider of the dental implant(s) to ensure a baseline clinical and radiographic examination have been undertaken, specific oral hygiene regimens have been discussed, and relevant information has been provided to the GDP regarding the treatment undertaken.11

Although it is expected in both national guidelines and national commissioning standards that the GDP will provide maintenance and monitoring of dental implants,11,12,13 direct clinical contact in undergraduate curriculums is generally low as shown in a recent survey, and improvements are still required to ensure newly qualified dentists enter practice with sufficient knowledge and skill to provide this.14 It should be noted that although the GDC define national learning outcomes for undergraduate curricula,10 these can be implemented in different ways by the individual dental school, accounting for differences in experience of new graduates.

Unsurprisingly, confidence is also low among general dental practitioners when it comes to maintaining dental implants and implant-retained overdentures in primary care.15,16 This has been attributed to a number of reasons, including a lack of training and experience, and the cost of ongoing learning. It is therefore the aim of this first article in the series to provide an overview of dental implants and how to assess them. The second article in the series will discuss the complications that may arise and maintenance of dental implants. The reader should then feel more comfortable and have improved confidence when encountering patients with dental implants in primary care.

Overview of dental implants

Dental implants can be used to support single and multiple unit fixed restorations as well as removable dental prostheses. To appreciate the complications that can arise with dental implants, it is first necessary to understand the different component parts that can make up an implant supported restoration (Figure 1).

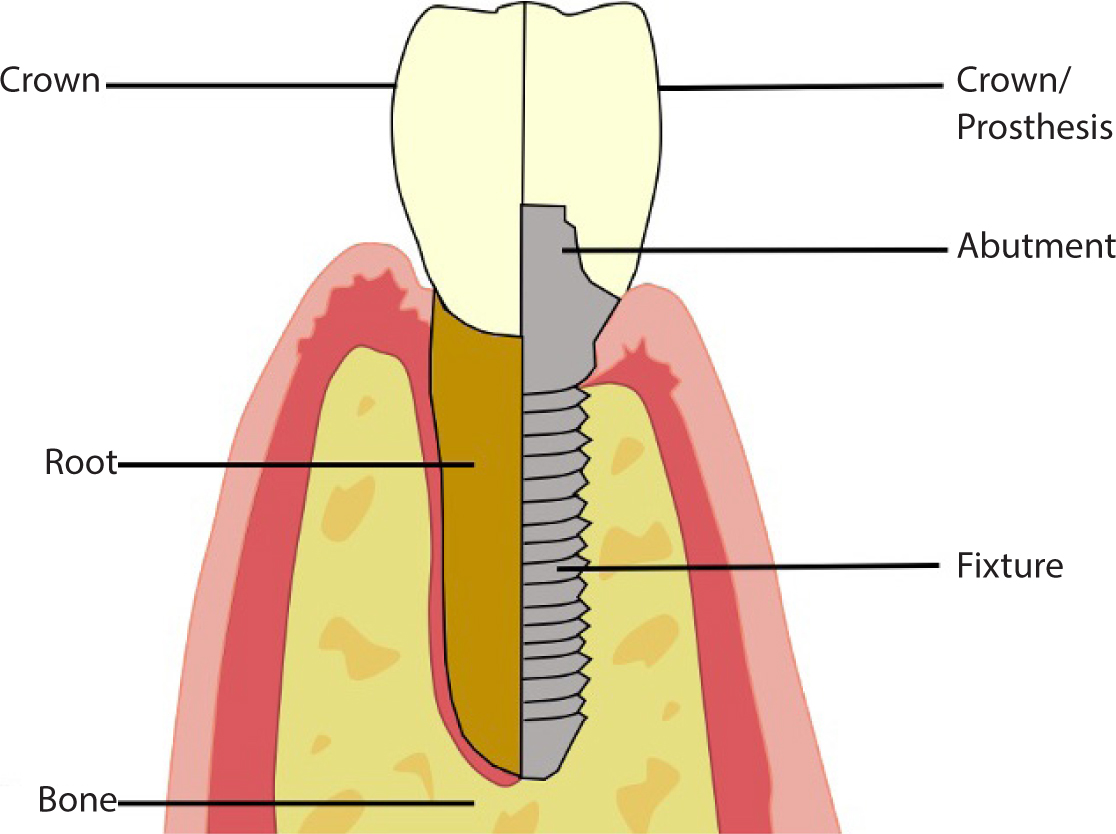

Figure 1. Diagram illustrating the main components of a single unit implant supported crown alongside a natural tooth.

Implant fixture

Endosteal implant fixtures of a root form design are the most commonly used dental implant and will be the focus of this article. The fixture is the surgically placed component that interacts directly with the bone. Implant fixtures can vary greatly depending upon the brand and the system used, but all aim to osseo-integrate (direct contact between living bone and implant17) to provide a stable foundation for a dental prosthesis. The main properties of implant fixtures that can vary are discussed below and overviewed in Table 2.


Implant design parameters Most common options Examples
Implant length Between 6 and 15 mm From left to right:
  • Nobel Replace Select Tapered WP 16 mm
  • Nobel Straight groovy RP 15 mm
  • Nobel Active Internal RP 8.5 mm
  • Bränemark Mark III RP TiUnite 7 mm
  • Implant diameter/platform
  • Narrow platform (eg Nobel Biocare 3.5 mm)
  • Regular platform (eg Nobel Biocare 4.3 mm)
  • Wide platform (eg Nobel Biocare 5.5 mm)
  • Endosteal implant shape
  • Parallel
  • Tapered
  • From left to right:Brånemark Mark II fixture: a parallel shape and machined surfaceNobel Replace Select Tapered fixture: a tapered shape with a TiUnite implant surface
    Implant surface characteristics Macroscopic level
  • Threaded: the majority of dental implants are threaded and there are many different designs of threads. The threads play an important role in primary stability of the implant, increasing surface contact with bone and load distribution
  • Non-threaded
  • Micro and nanoscopic level surface treatments can include any of the following:
  • Machined: smooth surface
  • Mechanical modification: using grit or sand blasting
  • Acid etched: increases surface area of the implant
  • Anodization: can be used to increase the thickness of the titanium oxide layer (eg TiUnite)
  • Sometimes a combination of the above are used
    Implant material
  • Metal: titanium/titanium alloy
  • Ceramic: zirconia
  • Implant level
  • Tissue level
  • Bone level
  • From left to right:
  • Nobel Replace Select Tapered WP 16 mm
  • Nobel Straight groovy RP 15 mm
  • Implant connection Internal connection:
  • Hexagonal interlocking/conical connection
  • Tri-channel interlocking
  • External connection:
  • Hexagonal interlocking
  • From left to right:
  • Internal hexagonal connection
  • Internal tri-channel connection
  • External hexagonal connection
  • Implant length

    Implants are available in a multitude of lengths. They can be as short as 6 mm or less and as long as 20 mm. Shorter implants of 6 mm or less, however, have been shown to have lower predictability in survival rates.18

    Implant diameter or platform

    Sufficient implant diameter is required for strength, and this dimension will also impact on load distribution to the surrounding bone. Implant diameters as narrow as 2.5 mm have been used in certain clinical situations and have, so far, shown comparable survival rates to standard diameter implants.18

    Implant shape

    A wide variety of endosteal implant shapes have been used, all aiming to maximize potential surface area for osseo-intergration and therefore provide good stability. The most common shapes are parallel (non-tapered) or tapered body designs. It has been demonstrated that there is no difference in outcome between tapered and non-tapered implant designs.18

    Implant surface characteristics

    There is great heterogeneity in implant surface characteristics depending on the system used. The variations can be at a macroscopic, microscopic or nanoscopic level, aiming to increase the surface area for osseo-integration of the implant fixture. Although surface roughness may increase the available surface contact with bone allowing for faster osseo-integration, there are concerns about the rougher surfaces experiencing surface corrosion and bacterial contamination if they become exposed to the oral environment.19

    Implant material

    The two main implant materials are metal-based implants (that are usually commercially pure titanium or titanium alloys and considered the gold standard for endosteal implants) and ceramic-based implants. Ceramic implants offer a metal-free alternative and, although the evidence supporting one-piece zirconia implants (fixture and abutment in one solid component) suggests comparable short-term survival rates to the gold standard, there is still a paucity of long-term data.20,21,22

    Implant level

    Implants can be placed at the bone or tissue level. With bone-level implants, the fixture head is at the level of the bone, while tissue-level implants are placed at the gingival level. Theoretically, it is thought that tissue-level implants are less prone to bone loss due to the fixture head–abutment connection being placed further away from the bone level; however, there is evidence to suggest that there is in fact no increased bone loss with either type of implant.23 Tissue level implants are considered more challenging to place at the ideal height and angulation and are therefore more commonly used in the posterior regions.

    Implant connection

    The prosthetic connection allows the implant fixture to attach to the abutment and prosthetic components. Before restoring, it is important to know the prosthetic connection. Although there are longer-term follow-up data for external hex connections, they are considered to experience a higher prevalence of screw loosening.24

    Although there is no conclusive evidence to suggest that one implant design has superior long-term survival over another, it is accepted that the ideal implant should offer biocompatibility, good strength and resistance to wear and corrosion.25 The features of implant fixtures that are used should always be chosen to match the specific needs of the patient, recipient site and planned prosthesis as part of a restoratively driven process. It is outside the remit of this article to discuss the surgical planning and placement of dental implants

    Implant abutment

    This is the transmucosal component. Some systems include fixtures that come as a solid unit (one-piece implant) with the abutment already attached, as seen with mini-dental implants (MDIs); however, most have a separate abutment component (two-piece implants). The abutment can either allow healing and sculpting of the soft tissues (healing abutment), or connect the implant fixture to the prosthesis. Selection of the correct abutment depends upon the implant fixture and its prosthetic connection, the position of the implant fixture and the planned prosthesis. Implant abutments can be made from titanium, zirconia, gold or polyether ether ketone (PEEK), and can come separately or as part of the implant prosthesis. The main types of abutment are shown in Table 3.


    Abutment type Description Examples
    Healing abutment Allows the soft tissues around an implant to heal and sculpt usually after the implant fixture is exposed to allow access for restoration of the implant. They are fixture specific and are available in different widths and heights From left to right:
  • Nobel Replace NP 5 mm HA
  • Nobel Replace RP 7 mm HA
  • Nobel Replace WP 3 mm HA
  • Bränemark WP 5 mm HA
  • Abutments for fixed prosthesis
    Temporary abutments or cylinders Often made from metal or plastic and are used to support temporary cement or screw-retained restorations From left to right:
  • Immediate temporary abutment: Bränemark RP
  • Immediate temporary abutment Nobel Replace RP
  • Temporary abutment: Nobel Active Internal connection Engaging RP
  • Abutment for Cement-retained Restoration This is a custom gold abutment that is screwed into the fixture upon which a crown is cemented - much like a conventional crown preparation
    Abutment for screw-retained restoration Zirconia crown and abutment that is screwed into the implant fixture
    Multi-unit abutment Used as connectors between the implant fixture and implant screw-retained restorations supported by multiple implants. They can be straight or angled to a range of degrees correct for fixture angulation, allowing for a common path of insertiony
    Abutments for removable prosthesis
    Locator abutment Engages into a denture base to improve retention of a complete or partial denture
    Ball abutment
    Magnet abutment
    Bar and clip

    A concept known as platform switching may be used where the implant abutment used is narrower than the implant platform, with an inward positioning of the implant-abutment junction.26 This concept is radiographically represented in Figure 2. The term ‘platform matched’ means that the implant and abutment are the same width. It has been shown that inwardly repositioning the implant–abutment junction results in less marginal bone loss than in implants with matched implant-abutment platforms.26 It is proposed that this inward repositioning of the implant–abutment junction increases the distance between the inflammatory cell infiltrate that can develop and the marginal bone level.

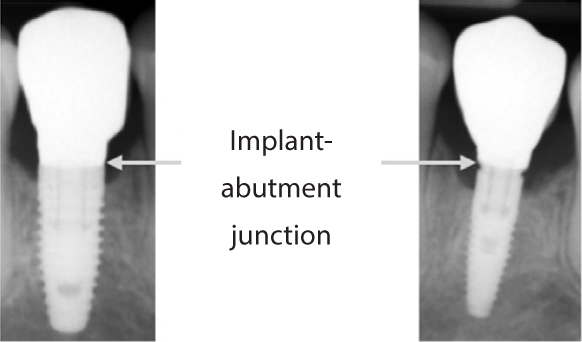

    Figure 2. Compares the implant-abutment junction for a platform-matched abutment on the left and a platform-switched abutment on the right for screw-retained implant crowns.

    Implant prosthesis

    This is the component that replaces the missing dentition (and sometimes soft tissue), aiming to restore both aesthetics and function for a patient. There is a plethora of implant prosthesis designs. They can be roughly categorized into the following: fixed implant prostheses, such as a single crown; a short-span bridge; a long-span bridge (including full arch); or a removable prosthesis, such as an overdenture.

    Fixed-implant restorations can be either cement or screw retained. Cement-retained restorations involve the abutment being screwed to the implant fixture (and the screw then covered with cotton wool or PTFE to protect it), and then a crown cemented onto the abutment (Figure 3), in a similar fashion to conventional crowns. As the abutment is often milled, a minimal taper can be produced giving excellent retention and resistance form in ideal situations, with use of a temporary cement for ease of retrievability. Care must be taken to ensure that all excess cement is carefully removed after cementation because there is evidence linking this to peri-implant disease.27,28

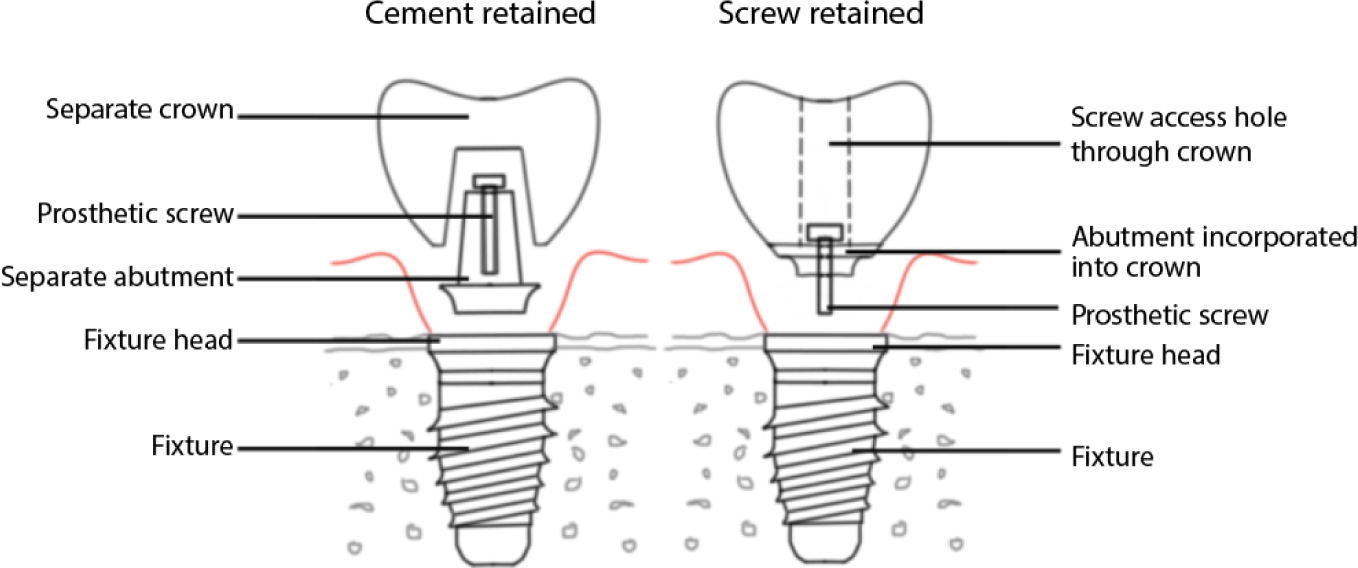

    Figure 3. Diagram illustrating the main differences between cement-retained and screw-retained implant crowns.

    Cement-retained restorations are often used to overcome the aesthetic difficulties encountered when the angulation of the implant fixture determines that the screw access will emerge through the labial surface of the definitive restoration (Figures 3 and 4).

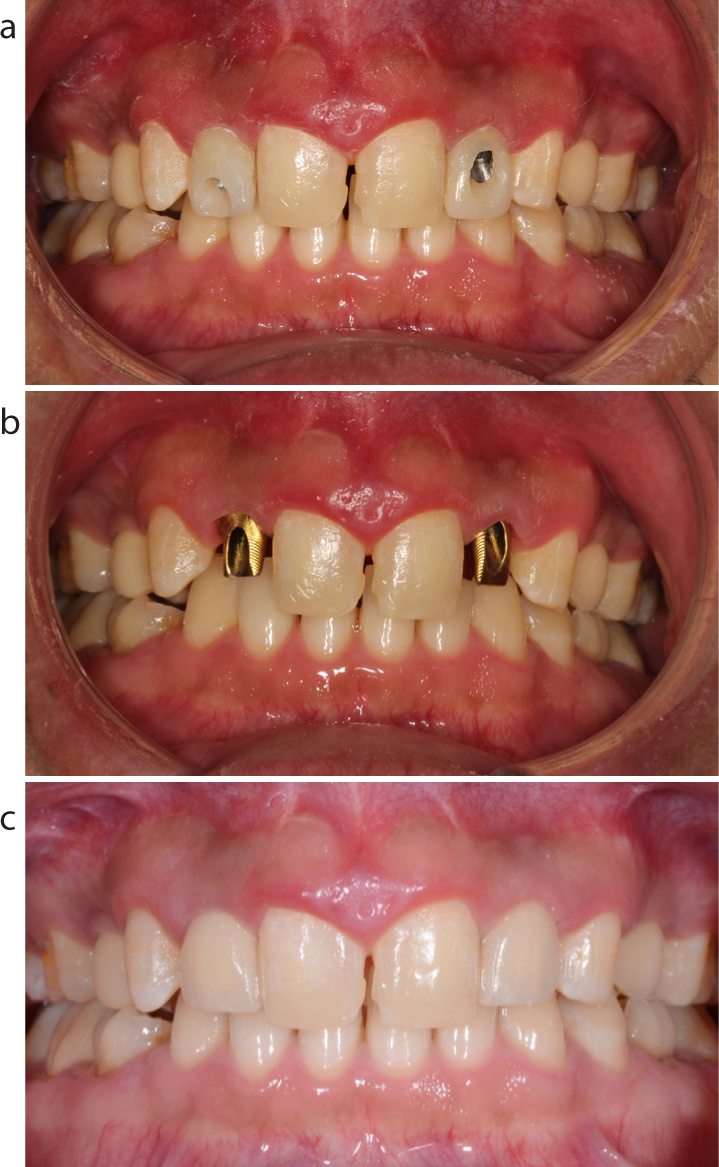

    Figure 4. (a) Demonstrates the use of cement-retained implant restorations to provide an aesthetic result where screw access holes were emerging through the labial aspect of temporary crowns. This case uses (b) gold abutments and (c) Emax crowns to provide the definitive restorations.

    Screw-retained implant restorations involve the dental prosthesis being screwed into the abutment or the implant fixture (Figures 3 and 5). They offer the advantage of easier retrievability in comparison to cement-retained restorations owing to access to the prosthetic screw being maintained. Once the restoration is seated and the prosthetic screw torqued correctly, a protective layer, such as cotton wool or PTFE tape is placed over the screw itself prior to restoration of the access hole with either composite or a temporary filling material. This helps to prevent damage to the screw should removal of the restorative material be necessary in future.

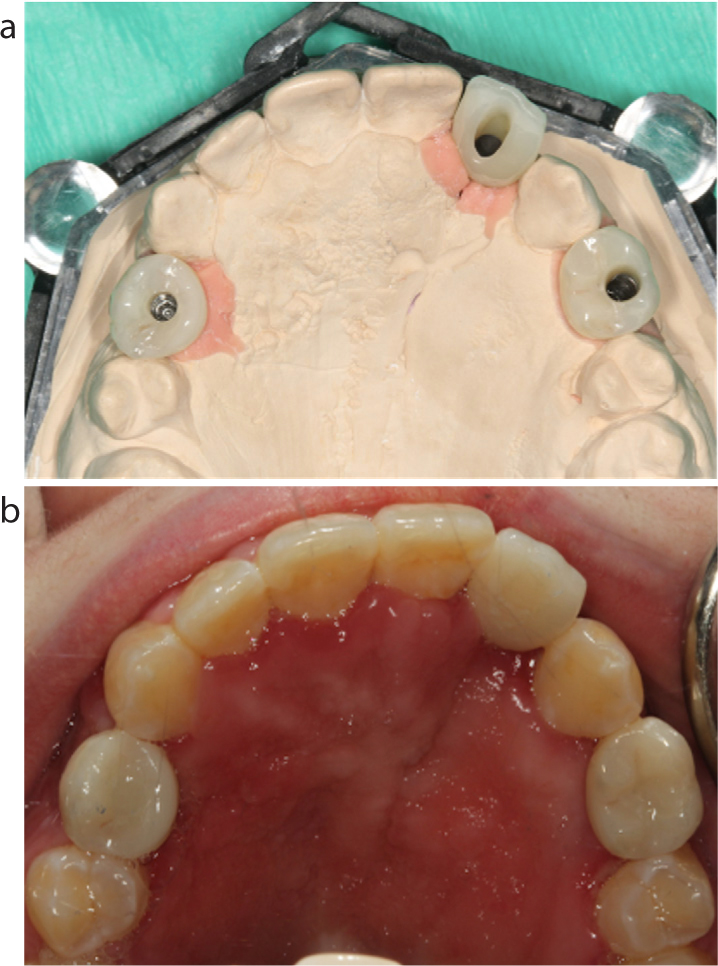

    Figure 5. (a) Shows three screw-retained implant crowns on the master model. (b) Shows the crowns fitted in the mouth with the access holes restored with composite.

    Modern advances in implant dental technology, have facilitated the correction of non-ideal implant angulations with the use of angled screw channel restorations. These restorations allow up to 25 degrees of angulation correction of the screw access hole (Figure 6). Screw-retained prosthetic options can now be offered where, in the past, only cement-retained options would have been feasible.

    Figure 6. (a) Access holes visible through the labial aspect of the UR3 and UL3 implant supported cantilever bridges replacing the upper laterals in a hypodontia patient. (b) Demonstrates the extent of the angulations on the UR3 using a guide pin in the fixture head model. (c) Definitive angled screw channel restorations. (d) Access holes visible on the palatal surface after being restored with composite.

    Evidence suggests that although there is no difference in survival rates between cement- and screw-retained restorations, complications are more common with cement-retained prostheses.29 Many factors need to be considered when deciding upon the use of screw-versus cement-retained restorations. For the authors, screw-retained restorations are the preference where possible given their ease of retrievability.

    Removable prostheses can be retained using either ball abutments, locator abutments, magnets or bars (Table 2). Again, there is a large variety of components available for retention of implant-supported removal prostheses, but in general, the denture houses the female component of the system, while the male component that inserts into the female component is supported by the fixture (Figure 7).

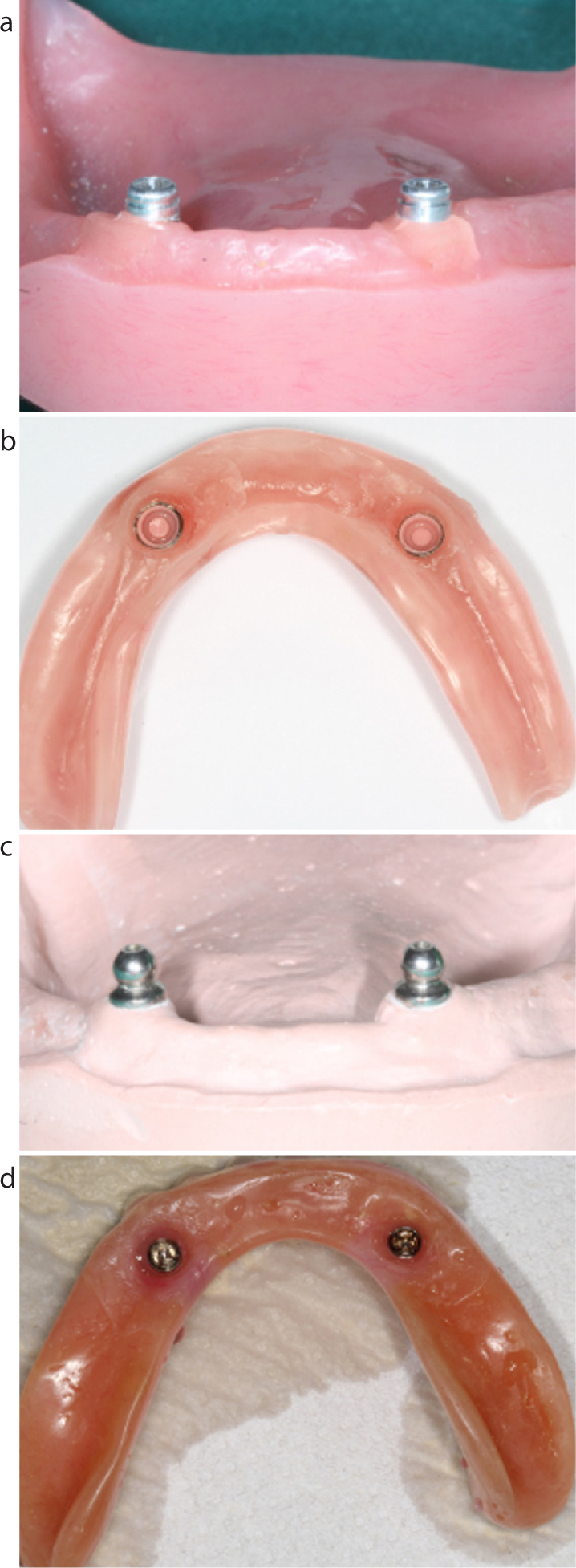

    Figure 7. (a) Locator abutment-male component. (b) Locator housing with plastic inserts-female component in situ in the denture. NB there are a variety of locator inserts offering differing retention strengths. (c) Ball abutments-male component. (d) Ball abutment-female component in denture.

    The number of implants used to retain a removable prosthesis may vary between cases, but it is widely accepted that two implants are required to support a lower complete overdenture as the gold standard for the edentulous mandible.30 For a removable overdenture in the edentulous maxilla, between four and six implants are recommended for support.31

    Assessment of dental implants

    National guidance highlights that general dental practitioners should be able to monitor the health of implants and recognize if complications arise.10,11,12 Dental implants should be regularly reviewed, both clinically and radiographically, to monitor for any biological or technical complications.32 Implants should be assessed in a similar manner to natural teeth, but one should bear in mind the differences between implants and teeth.

    Teeth and implants are fundamentally different.33 Dental implants act as an ankylosed tooth as they have a direct connection to the bone through osseo-integration, and lack of cementum or periodontal ligament. The peri-implant mucosa differs from the periodontium around natural teeth because it is more collagen rich and less vascular, with connective tissue fibres running parallel to the implant surface without insertion (Figure 8).34

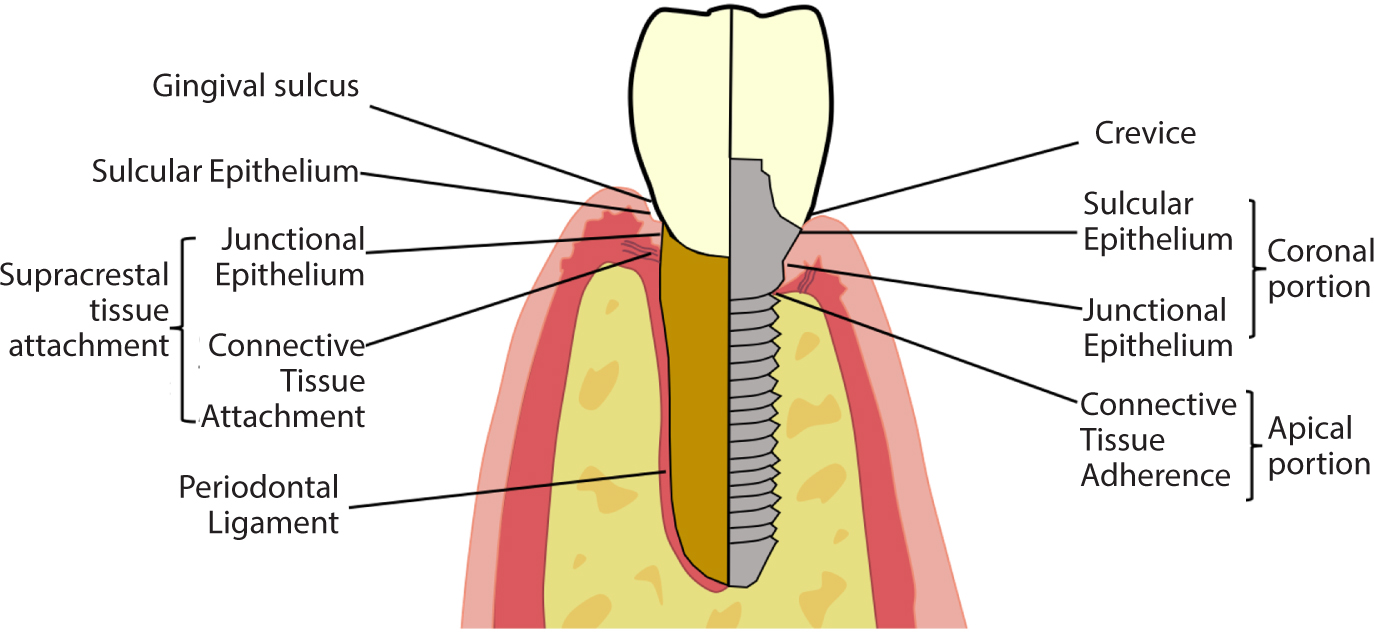

    Figure 8. Diagram illustrating the main differences between the periodontal apparatus associated with an implant and a natural tooth.

    Clinical assessment

    At each of a patient's recall visits, a detailed clinical examination should be undertaken, which is outlined below. The recall interval should be tailored specifically for each patient, taking into consideration their individual risk factors for disease progression.35 These risk factors are often changeable over time and therefore need to be reassessed at each recall, so that timings can be adjusted as necessary. Clinical assessment of dental implants should be undertaken at least once a year.36

  • The first step is to visually assess the peri-implant tissues. Healthy tissues demonstrate a lack of visible inflammation, swelling or suppuration.36
  • An assessment of the patient's general oral hygiene, as well as site-specific oral hygiene, is crucial because plaque accumulation is a key risk indicator for the development of peri-implant diseases.28,37
  • The peri-implant tissues should then be probed, and for cement-retained restorations, any excess cement should be documented. Implants often have deeper probing pocket depths in health when compared to natural teeth owing to the height of the soft tissue attachment. A four- or six-point pocket probing chart12 with bleeding index of the peri-implant tissues should be completed at least annually to monitor for any changes.37 Probing around a dental implant with light forces of around 0.25 N will not damage the implant or the peri-implant tissues and will reduce the risk of mechanically induced bleeding.12,28,37 Accurate probing around implants can be challenging, especially with fixed prostheses, due to the emergence contour from fixture to prosthesis being more exaggerated than with a natural tooth. This contour can sometimes necessitate the removal of the prosthesis to allow accurate probe orientation if there are concerns about peri-implant disease.
  • Assessment of mobility will give an indication of implant failure, or a mechanical complication resulting in mobility of the prosthesis (these will be discussed in more detail in the second article in the series). It is important to determine the cause of the mobility to enable the clinician to plan appropriately. A combination of a full clinical examination, as well as a radiographic examination will enable this important diagnosis to be made.
  • It is also necessary to check the prosthesis itself. For removable prostheses, this should include assessment of the wear of the abutments as well as the inserts within the denture.
  • For screw-retained restorations, the integrity of the screw access restoration should be checked. Further occlusal assessment may also be necessary if complications have arisen to identify any contributing unfavourable occlusal forces.

    Radiographic assessment

    Radiographic assessment is a necessary adjunct to a clinical examination to aid in monitoring dental implants, as well as assisting in making a diagnosis if complications arise (Figures 9 and 10). A baseline radiograph should be taken upon fitting of the definitive prosthesis to ensure accurate seating, and to serve as a baseline reference in monitoring alveolar bone levels.37 This should be taken by the restoring dentist and a copy should be sent to the GDP on discharge of the patient.11

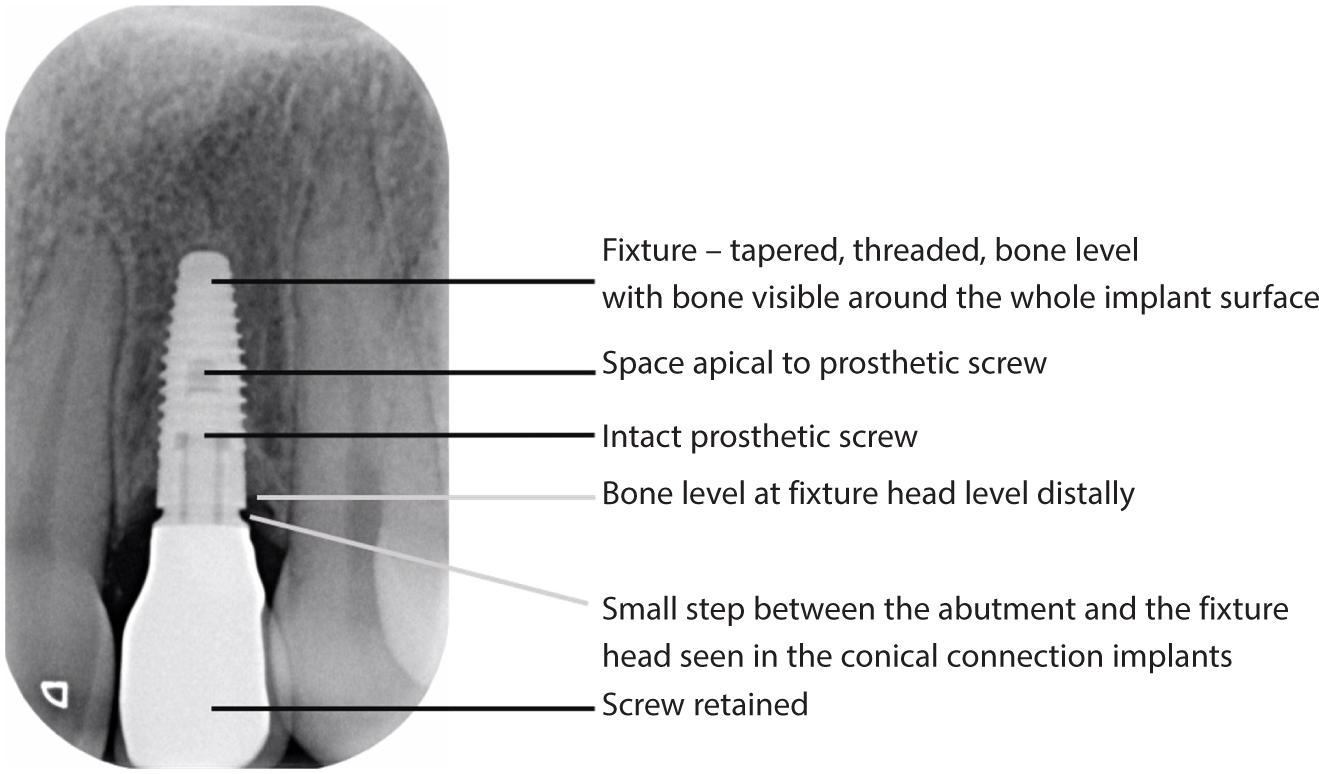

    Figure 9. Characteristics of health on a radiograph of a NobelReplace Conical Connection implant with a screw-retained crown replacing an UL2.

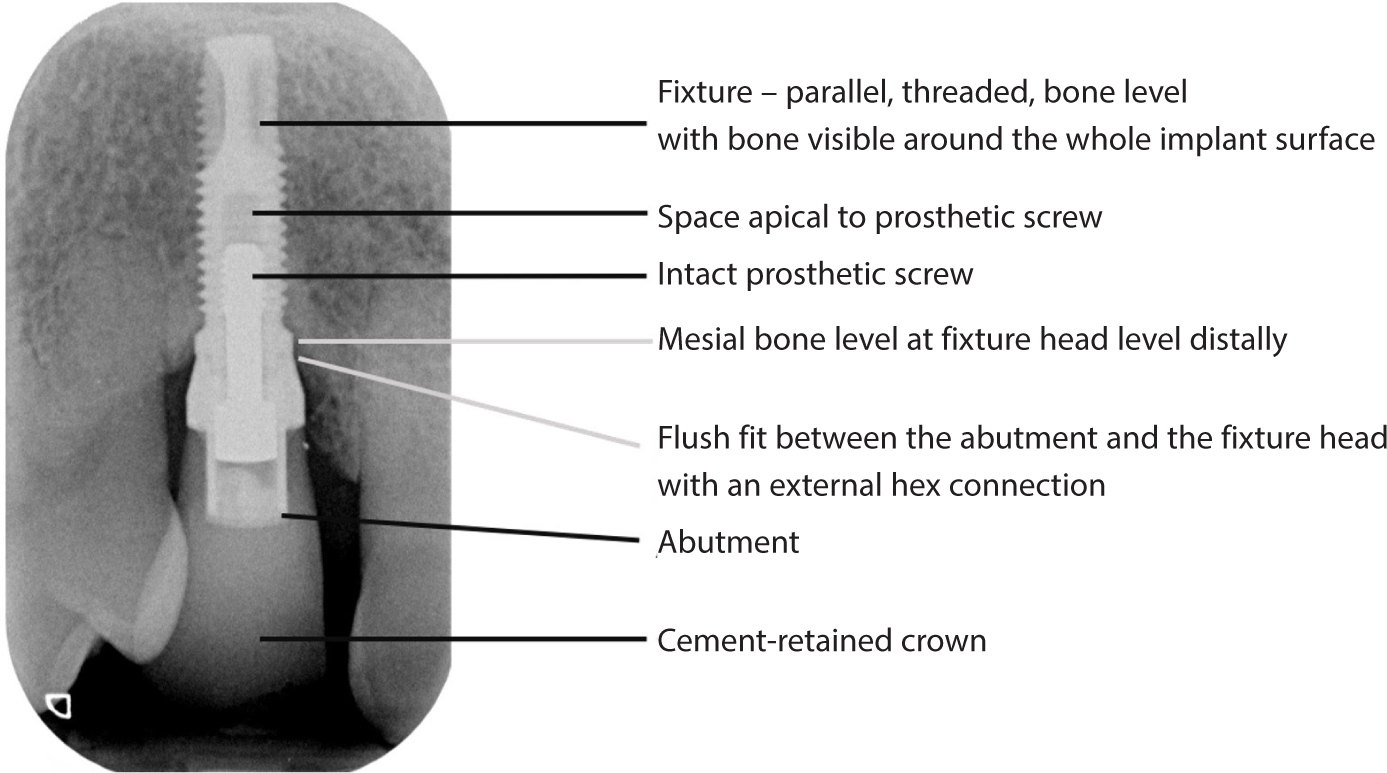

    Figure 10. Characteristics of health on a radiograph of a Brånemark Mark III external hex connection implant with a cement-retained crown replacing an UR3. Note the deep placement of the implant fixture head in relation to adjacent bone mesially.

    A further radiograph at 12 months is considered essential38 to assess for changes in the bone due to functional remodelling or inflammation within the first year. It is dependent upon local guidelines as to whether this radiographic examination is completed by the restoring clinician or requested to be completed by the patient's primary care dentist.

    There is no consensus as to the appropriate radiographic monitoring protocol of dental implants following the first 12 months in function. It is therefore necessary to correlate the clinical findings to influence when a radiograph is required.37 For example, if the clinical findings indicate peri-implant disease or mobility, then a radiograph would be indicated.32 The Association of Dental Implantology suggests a radiographic review protocol every 2 years (after the first year in function), unless there are signs or symptoms of disease warranting investigation sooner.39

    This will often be the responsibility of the GDP and the British Society of Periodontology and Implant Dentistry (BSP) expect that the general dentist should be screening for implant complications, even if they have not placed the implants,12 allowing them to refer onwards if necessary. Good communication will be required between the GDP and the placing and/or restoring practitioner to determine who will be providing ongoing monitoring to prevent either duplication or a lack of follow-up.

    Conclusions

    There is a wide variety of dental implants and their component parts. As a primary care practitioner, a broad understanding of these serves as a foundation for appreciating what complications can arise. It is likely that primary care practitioners will be responsible for the monitoring and maintenance of dental implants on discharge from the restoring dentist, including regular clinical and radiographic assessment at patient's recall visits. It is the aim that primary care practitioners will feel more comfortable understanding and assessing dental implants after reading this article. Complications that may occur with dental implants and their component parts will be discussed in detail in the second article of the series.
