First impressions count

From Volume 39, Issue 7, September 2012 | Pages 455-471

Authors

Jonathan W Turner

BDS, MSc, MA(Ed)

Senior Clinical Teacher/Specialist in Prosthodontics, King's College London Dental Institute at Guy's Hospital, KCL, King's Health Partners, London, UK

Articles by Jonathan W Turner

Rebecca Moazzez

BDS, MSc, FDS RCS(Eng), FDS(Rest Dent), PhD, MRD, FHEA

Senior Lecturer/Specialist in Restorative Dentistry, King's College London Dental Institute at Guy's Hospital, KCL, King's Health Partners, London, UK

Articles by Rebecca Moazzez

Avijit Banerjee

BDS, MSc, PhD (Lond), LDS, FDS (Rest Dent), FDSRCS (Eng), FCGDent, FHEA, FICD

Professor of Cariology & Operative Dentistry, Hon Consultant in Restorative Dentistry, King's College London Dental Institute at Guy's Hospital, KCL, King's Health Partners, London, UK

Articles by Avijit Banerjee

Abstract

The art and craft of recording intra-oral anatomy successfully with dental impressions relies on the interaction of three critical factors – the ‘golden triangle of impression-taking’: an appreciation of the anatomical features to be recorded, the material used to take the impression and the clinical handling/operative technique applied. This paper aims to discuss the three factors and their inter-relationships, detailing clinical tips for successful, reproducible and consistent outcomes.

Clinical Relevance: Obtaining accurate dental impressions is the key to success in a wide range of clinical restorative procedures. This paper offers clinical advice to practitioners to plan and then take predictable, good quality impressions for their restorative cases.

Article

This paper aims to cover the clinical aspects of planning and impression-taking for fixed and removable prosthodontics, including clinical tips for achieving successful, reproducible and consistent outcomes in routine, as well as more complex cases. A large number of impression techniques have been described.1 The key points are summarized in three tables to act as a quick reference tool for readers to obtain information on relevant anatomy, impression materials and clinical tips, including illustrative figures. In addition, there are two flow charts covering the mind-mapping process of planning and executing primary and secondary impression techniques for the construction of complete dentures.

Anatomical landmarks

Table 1 summarizes the anatomical features that need recording dependent upon the prosthesis to be constructed, their clinical relevance and problems that may be encountered if not incorporated appropriately into the design of the final prosthesis. Figures 1 and 2 show the position of the important anatomical landmarks in edentate mouths and suitably fitting and extended trays.

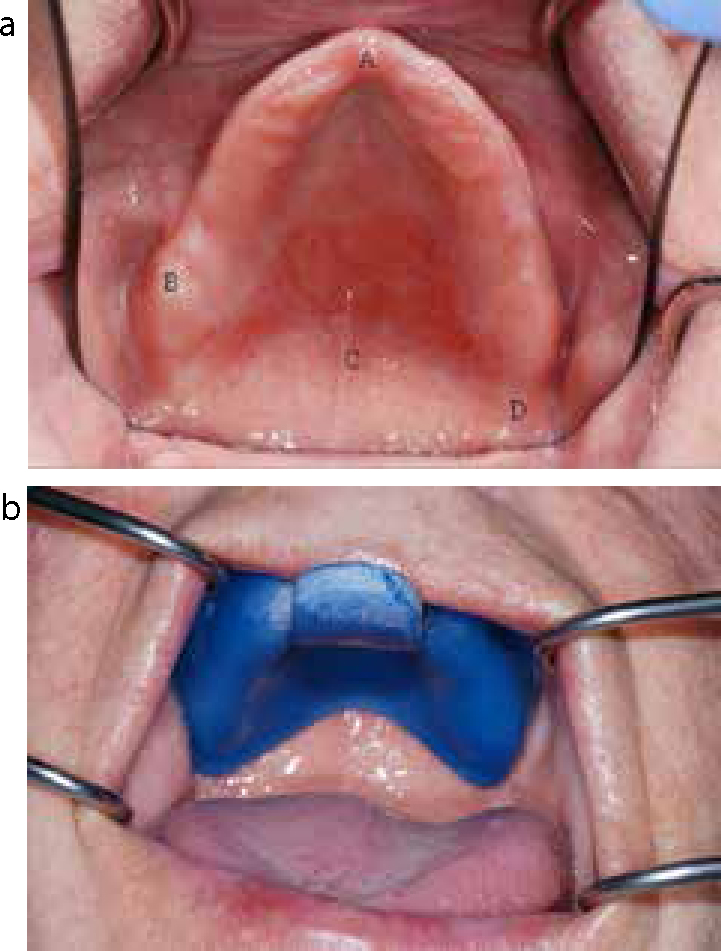

Figure 1. (a) Anatomical landmarks in the maxillary edentate arch (A – incisive papilla; B – maxillary tuberosity; C – fovea palatinae; D – hamular notch). (b) A suitably fitting and extended maxillary special tray.

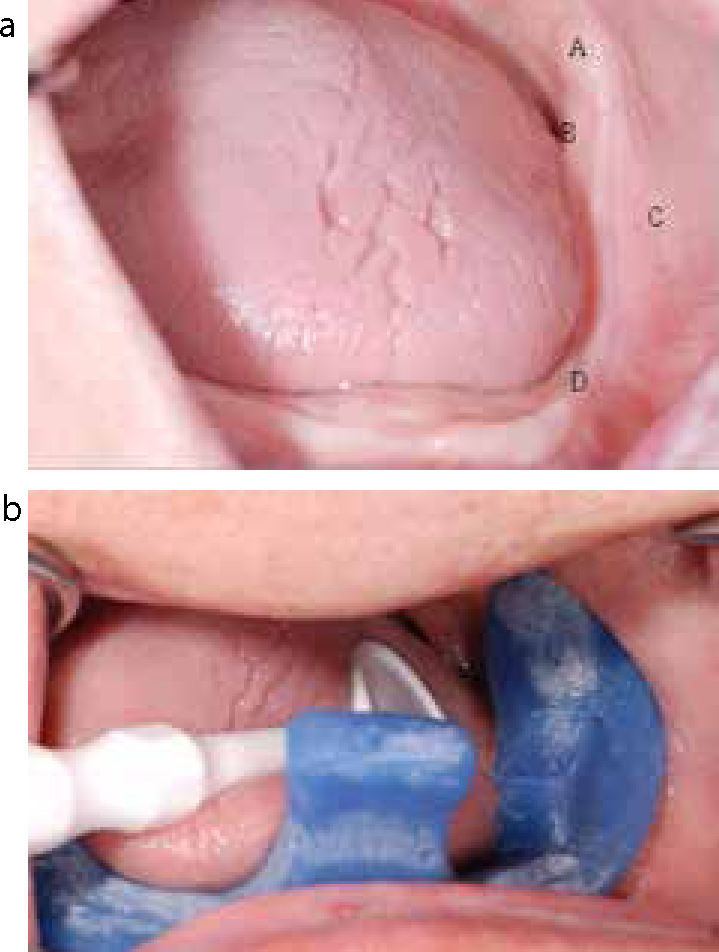

Figure 2. (a) Anatomical landmarks in the mandibular edentate arch (A – retromolar pad; B – retromylohyoid fossa; C – buccal shelf; D – residual alveolar ridge crest). (b) A suitably fitting and extended mandibular special tray.

Anatomical Landmark Clinical Relevance to Prosthesis Comments
Residual alveolar Stability (if ridge ridges well formed) and support
  • Fibrous ridge. Special techniques may be required, such as use of windowed trays.
  • Sharp ridges/bony spicules may require surgical removal prior to impression-taking or necessitate relief of the fitting surface or use of a soft lining.
  • Bony undercuts necessitate use of an elastic impression material such as silicone, as opposed to a non-elastic material such as ZOE.
  • If mandibular ridge resorption great then satisfactory stability will be hard to obtain.
  • Hard palate (Mx) Provides support for denture
  • Centre of posterior hard palate is a primary area of support.
  • Denture must be closely adapted to palate to assist with retention.
  • The ‘vibrating area’ is located on the soft palate near its junction with the hard palate. The posterior border of the denture (the ‘post-dam’ region) extends to this area in order to achieve the posterior seal required for adequate retention.
  • A very shallow palate may cause problems with stability.
  • Care is needed with high vaulted palates, to ensure that the impression material accurately records the full vault.
  • If tori present, the fit surface of denture may need to be relieved to prevent mucosal trauma. If the tori extends back to the post-dam region, posterior seal may be difficult to obtain.
  • Incisive papilla (Mx) Biometric guide for anterior tooth position
  • If alveolar ridge is very resorbed the papilla may lie on ridge crest.
  • Labial face of maxillary incisors usually positioned 8-10 mm anterior to centre of papilla.
  • Fovea palatinae (Mx) Guide to position of posterior border of special tray/denture
  • Guide to position of displaceable tissue (‘vibrating area’) in the palate.
  • Lie in the soft palate, usually slightly posterior to ‘vibrating area’.
  • Tray should extend just distal to the fovea so they are recorded. Failure to do so will result in under-extended denture which lacks a posterior seal and thus retention.
  • Hamular notches (Mx) Guide to position of posterior border of special tray/denture
  • A guide to position of displaceable tissue.
  • Posterior border of special tray/denture should rest in these notches in order to obtain a posterior seal.
  • If denture extends distal to the notches it will interfere with the action of the pterygomandibular raphe.
  • Retromolar pads (Md) Seal/retention
  • Posterior border of mandibular complete denture will extend 1/2 to 2/3 up pads, displacing them and helping to provide a seal.
  • Retromylohyoid fossae (Md) Stability
  • Engaged bilaterally by the disto-lingual part of the mandibular denture flange.
  • Located distal to attachment of the mylohyoid muscle.
  • Greenstick composition can be added to fit surface of the special tray in this region to ensure impression records fossae accurately.
  • Buccal shelves (Md) Support
  • Located between alveolar ridge crest and external oblique ridge.
  • Cortical bone provides primary support for a mandibular complete denture.
  • The more the mandibular alveolar ridge resorbs, the wider this shelf becomes.11
  • Mylohyoid ridges (Md) Retention (via border seal) and stability
  • Lingual aspect of mandible-mylohyoid muscle attaches to these.
  • With alveolar ridge resorption the mylohyoid ridge will lie near the ridge crest posteriorly.
  • Sharp ridges may lead to the overlying mucosa being traumatized by the denture, unless the fitting surface is relieved, or the ridge smoothed surgically.
  • Lingual flange of denture needs just to cover these ridges; the inferior border of flange contacts the contracted mylohyoid muscle, helping to achieve a border seal.
  • Buccal sulci Denture flange extends into sulcus to obtain a peripheral seal (retention) and assist stability.
  • Denture flanges need to fill sulci to achieve peripheral border seal.
  • Often sulci widest in the region buccal to the maxillary tuberosities.
  • The greater the resorption from the buccal aspect of the alveolar ridge, the greater the width of the sulcus.
  • Advancing coronoid process and the contracted masseter muscle will reduce the sulcus width.11
  • Lingual sulci (Md) Denture flange extends into sulcus in attempt to obtain a peripheral seal (retention) and assist with stability.
  • Border seal is difficult to obtain lingually owing to the movement of the floor of the mouth as mylohyoid contracts.
  • Aim is to achieve a seal when floor of the mouth is in raised position.
  • If alveolar ridge resorption has taken place the lingual sulcus may be very shallow and care is needed to ensure the flange is not over-extended.
  • Over-extension into the lingual sulci results in denture displacement as the floor of the mouth raises during function.
  • Large lingual tori in the premolar region may require surgical removal or adequate extension of denture will not be possible.
  • Fraenum Denture will be notched around fraenae.
  • Found midline labially and lingually and also mid-buccal.
  • If denture impinges, trauma will result and the denture may be displaced in function.
  • Fraenal attachments may lie close to the alveolar ridge crest (for example following extensive ridge resorption) impairing border seal and functional stability.
  • The clinical relevance of recording landmarks outlined in Table 1 is to ensure optimal stability, support and retention of the final constructed prosthesis. The British Society for the Study of Prosthetic Dentistry defines retention, support and stability as follows:2

  • Retention: ‘Resistance of a denture to vertical movement away from the tissues’.
  • Support: ‘The resistance of a denture to occlusally-directed loads’.
  • Stability: ‘The resistance of a denture to displacement by functional forces’.
  • When a patient complains that his/her denture is ‘loose’, it is important to establish whether the cause is due to a lack of retention, support or stability (or, more commonly, a combination of all three). Often problems associated with these properties are related to inadequate denture-base extension, in turn, a consequence of faults with impression technique. For example, a maxillary complete denture covering only half of the hard palate will have reduced support but, as it does not extend posteriorly onto displaceable tissue (the ‘vibrating area’), it will also lack seal and thus retention. Similarly, an under-extended lower complete denture failing to cover the buccal shelves will lack support; or failing to engage the retromylohyoid fossae will reduce its stability.

    Impression materials

    This paper does not aim to give the reader a full discourse in the detailed materials science of individual impression materials. Instead they are advised to consult existing authoritative texts in this field. Table 2 summarizes the clinically relevant issues regarding the use and handling characteristics of a range of materials used in prosthodontic practice to record anatomical landmarks.


    Material General Factors Technique Surface Detail Dimensional Stability
    Alginate Cheap: can pour once.Available in sachets/bulk.Available with different speeds of set.Modern alginates dimensionally stable over five days.20 Adhesive and perforated tray.Ensure correct powder: water ratio. Increased water temperature will decrease setting time.Remove from mouth with snapping action. Excellent Once disinfected, store in 100% humidity (sealed plastic bag covered in damp gauze) and cast as soon as possible.
    Silicone putty Use to modify stock trays (eg in palatal vault or large saddle areas, defects) or borders of special trays.Use as part of putty/wash technique for fixed prosthodontics. Easy to use. Wear non-latex gloves to mix. Useful in gagging patients as flow controlled easily and can remove before fully set in edentate cases. Take care not to use excess quantities as viscosity may lead to over-extended impressions and sulci distortion. Poor (thus a need for a wash impression when used for recording crown impressions). Good. Store dry until cast.
    Light-bodied silicone Use in conjunction with putty or heavy body silicone for crown and bridge preps or as a jaw registration material. Used in a gun/dispenser. Excellent Good. Store dry until cast.
    Medium-bodied silicone Multiple casts possible.Can be used by itself as an impression material. Hand or machine mixed. Excellent Good. Store dry until cast.
    Polyether Accurate, dimensionally stable, single stage and consistency, used for implant pick up imps. Do not use in special trays. Excellent Good. Store dry until cast.
    Zinc Oxide Eugenol paste (ZOE) Ensure patient is neither allergic to eugenol nor suffers from xerostomia.Petroleum jelly needed on patient's lips. Messy. Warn patient of strong taste and possible burning sensation.Non-elastic, unsuitable for deep bony undercuts. No adhesive required.Can use for complete denture secondary impressions, but not in dentate mouths. Ensure tray dry. Can add further ZOE over top of existing set material to correct minor defects/air blows. Can use for recording jaw registrations in conjunction with wax occlusal rims. Excellent Good. Store dry until cast.
    Impression wax Cheap. Easy to use - no mixing required.Used to modify trays or as jaw reg material. Quick impression - suitable if poor patient compliance. Adequate for occlusal jaw reg. Poor - high coefficient of thermal expansion causing distortion.
    Greenstick composition Practice required to use this material effectively. Once cooled, material is hard and brittle. Good for correcting under-extended special trays and border moulding. Use heat to soften, so it will flow, trace around required region of tray then temper in warm water, prior to placing in patient's mouth, to avoid burning patient. Adequate for tray modification. Good

    Clinical techniques

    Infection control

    Prior to casting an impression, it must be disinfected without losing dimensional stability and care must be taken to follow manufacturer's instructions with respect to timings – less than the recommended time will lead to inadequate disinfection, whereas an excessive time period may cause distortion of the impression material.

    Once removed from the mouth, impressions should be rinsed thoroughly under water until visibly clean then inspected to ensure all details have been recorded. It is important to check that the material has not pulled away from the tray, leading to inaccuracies (with perforated trays ensure that the material has flowed through the perforations). Disinfect using an appropriate method for the advised time period, eg immersion in a proprietary disinfectant such as Perform®-ID (Schülke & Mayr UK Ltd, Sheffield, UK) for ten minutes. Following removal from the disinfectant, re-rinse and store appropriately (Table 2). When completing the laboratory prescription it must be confirmed that disinfection has been carried out.

    Removable prosthodontics

    Primary impressions (Figure 3)

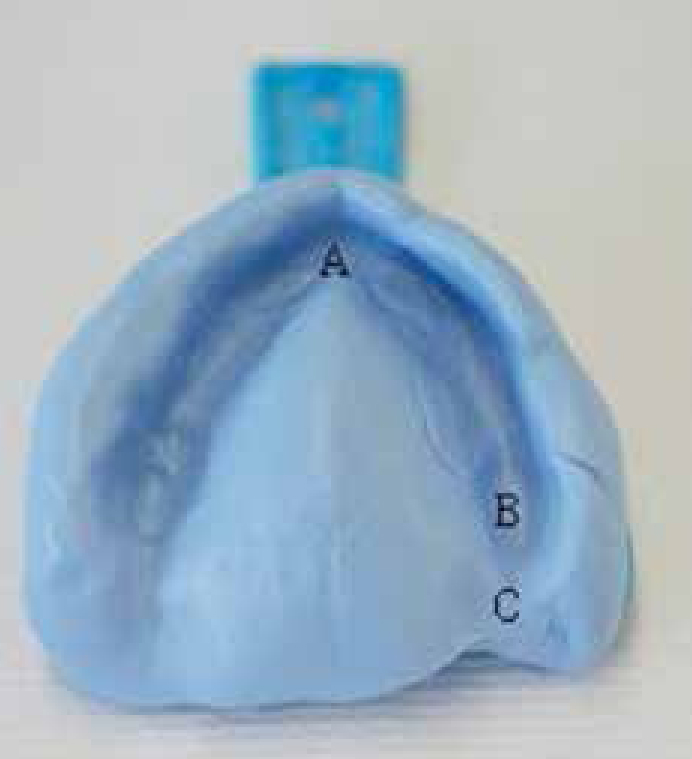

    Figure 3. Maxillary silicone putty primary impression with recorded landmarks (A – incisive papilla; B – maxillary tuberosity; C – hamular notch).

    The purpose of the primary impression is to enable study model manufacture and construction of custom-fit special trays for both the partially dentate or edentate patient.

    With edentulous cases, these impressions enable the areas involved with denture support to be outlined as well as the correct extensions for the special trays – the latter helping facilitate a peripheral seal in the completed denture (Table 1). If the primary impression for an edentulous case fails to meet these criteria it will prove impossible to record a satisfactory secondary impression – hence the first impression not only counts but is crucial for success.

    With partial denture cases, casts can be surveyed and provisional designs drawn up, having assessed features such as:

  • Presence of naturally occurring guide planes;
  • Tooth and hard tissue undercuts;
  • Depth of sulci;
  • Position of fraenal attachments;
  • Space available to bring metal components, such as restseats or clasp arms, over the occlusal surface.
  • Metal or plastic disposable stock trays can be used, though the former are losing popularity owing to difficulties in sterilization. The flanges of plastic trays can be trimmed easily if overextended or silicone putty or wax is used to modify them if underextended. It is important to ensure that the selected trays are tried in the mouth and assessed carefully to ensure that they engage left and right sulci simultaneously, but are not so wide as to distort the buccal mucosa. Their length should also be assessed to ensure that they cover the landmarks required (Table 3).


    What are you Constructing? Anatomical Features Recorded Materials/Tray Design Common Problems and Solutions/Tips
    Study models
  • Tooth surfaces
  • Sulci
  • Alginate – stock tray
  • Air-blows and drags on occlusal surfaces: apply alginate to dried occlusal surfaces of teeth with fingers prior to seating tray.
  • Single crown
  • Preparation
  • Tooth surfaces of opposing arch
  • Polyether – stock tray
  • Silicone (in a range of formats) – stock or other teeth in arch/special tray
  • The materials suitable for a single stage and single consistency impression are either polyether or a medium-bodied addition cured silicone.Materials suitable for dual consistency impressions can be used in the following combinations:
  • Light/medium body silicones
  • Light/heavy body silicones
  • Light body/putty silicones
  • Medium/heavy body silicones
  • Medium body/putty silicones
  • Alginate for opposing arch-stock tray
  • Poor recording of preparation margins. Use gingival retraction cord if sub-gingival. If using putty/wash technique ensure the intra-oral wash has not set prior to seating putty.
  • Exercise care when using polyether in custom-made trays as undercuts could be engaged if not blocked out, resulting in difficulty in removing the tray from the mouth once set.
  • Bridge As for crown, plus saddle areas As for crown
    Implant-supported restorations

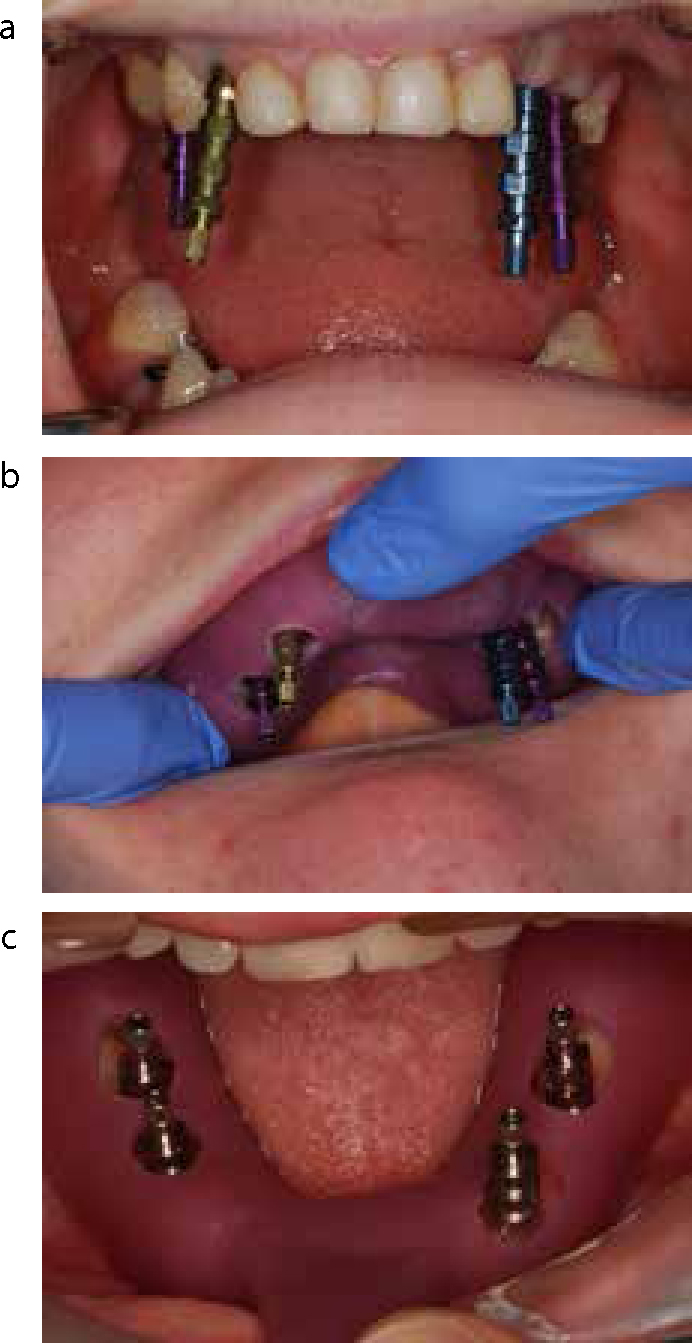

  • Fixture/abutment and surrounding soft tissues, rest of the arch. Opposing teeth.
  • Polyether in stock tray. Can use silicone and stock/custom-made tray as per crowns and bridges.
  • Impressions made at fixture-head level or the abutment, depending on the type of abutment/restoration. Consider the occlusion, angulation and position of the implants.
  • Impressions made either as an open-tray or closed-tray technique. If using open-tray technique, ensure that impression material is removed to expose the screw before set.

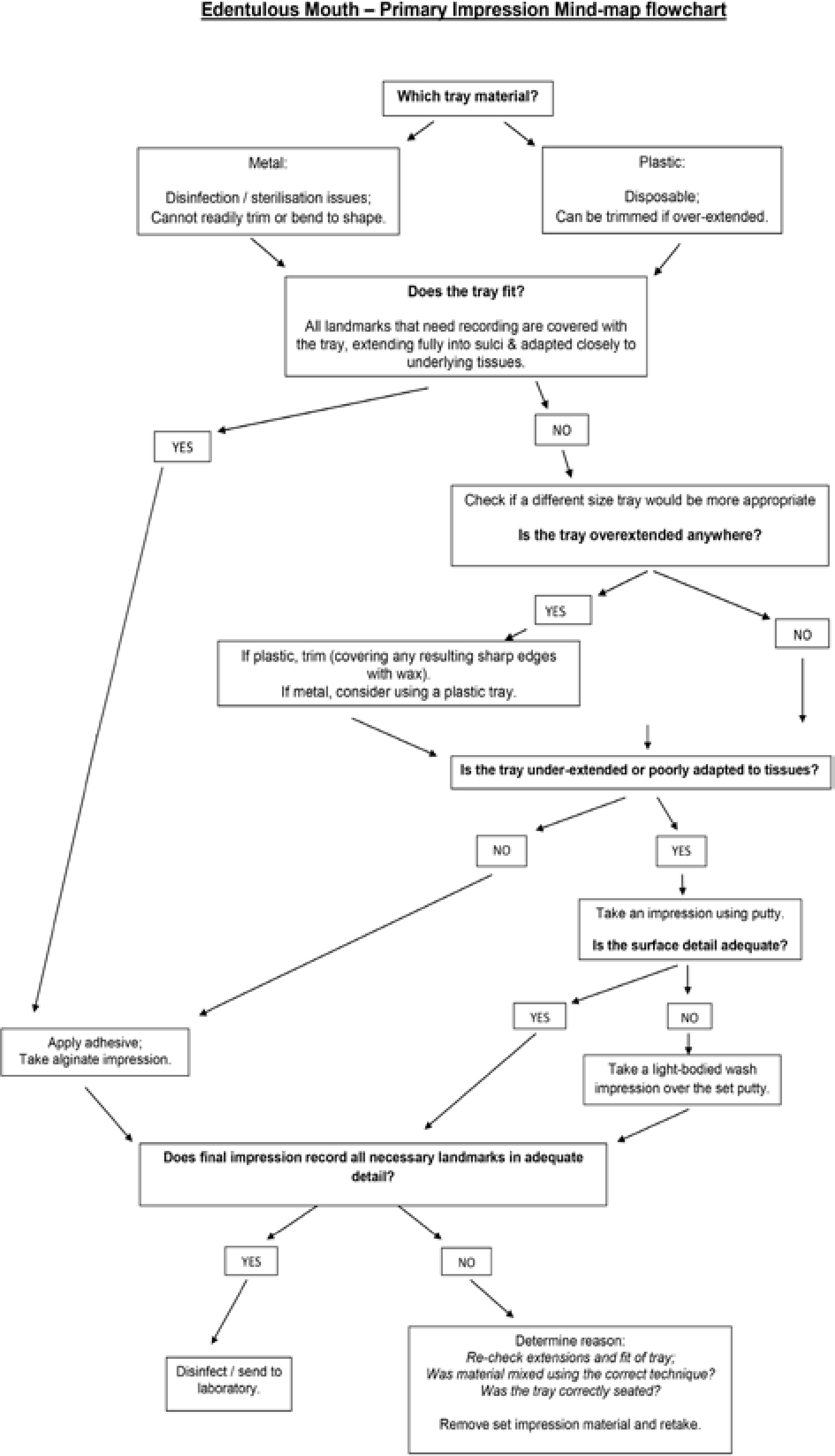

  • Complete dentures: Primary impression (see Figure 12a)
  • Upper
  • Residual alveolar ridges
  • Sulci
  • Palate
  • Maxillary tuberosities
  • Hamular notches
  • Fovea palatinae
  • Incisive papilla
  • Fraenae
  • Lower
  • Residual alveolar ridges
  • Sulci
  • Retromolar pads
  • Buccal shelves
  • Retro-mylohyoid fossae
  • Fraenae
  • Alginate and/or silicone putty in stock tray
  • Flanges of plastic stock tray over-extended: trim them back (cover rough surfaces with red ribbon wax).
  • Stock tray does not cover all necessary landmarks: use silicone putty to modify tray extensions.
  • High-vaulted, ‘V’-shaped palate – modify stock tray with silicone putty.
  • Tongue trapped under lingual flange of tray: ask patient to lift tongue as mandibular tray seated.
  • Lingual sulcus incorrectly recorded: ask patient to protrude his/her tongue to lip once mandibular tray has been seated.
  • Poorly recorded labial sulcus – check tray position ensuring labial flange is in sulcus and lip not trapped. Ask patient to half close so lips not taut.
  • Gagging patient: consider using silicone putty rather than alginate.

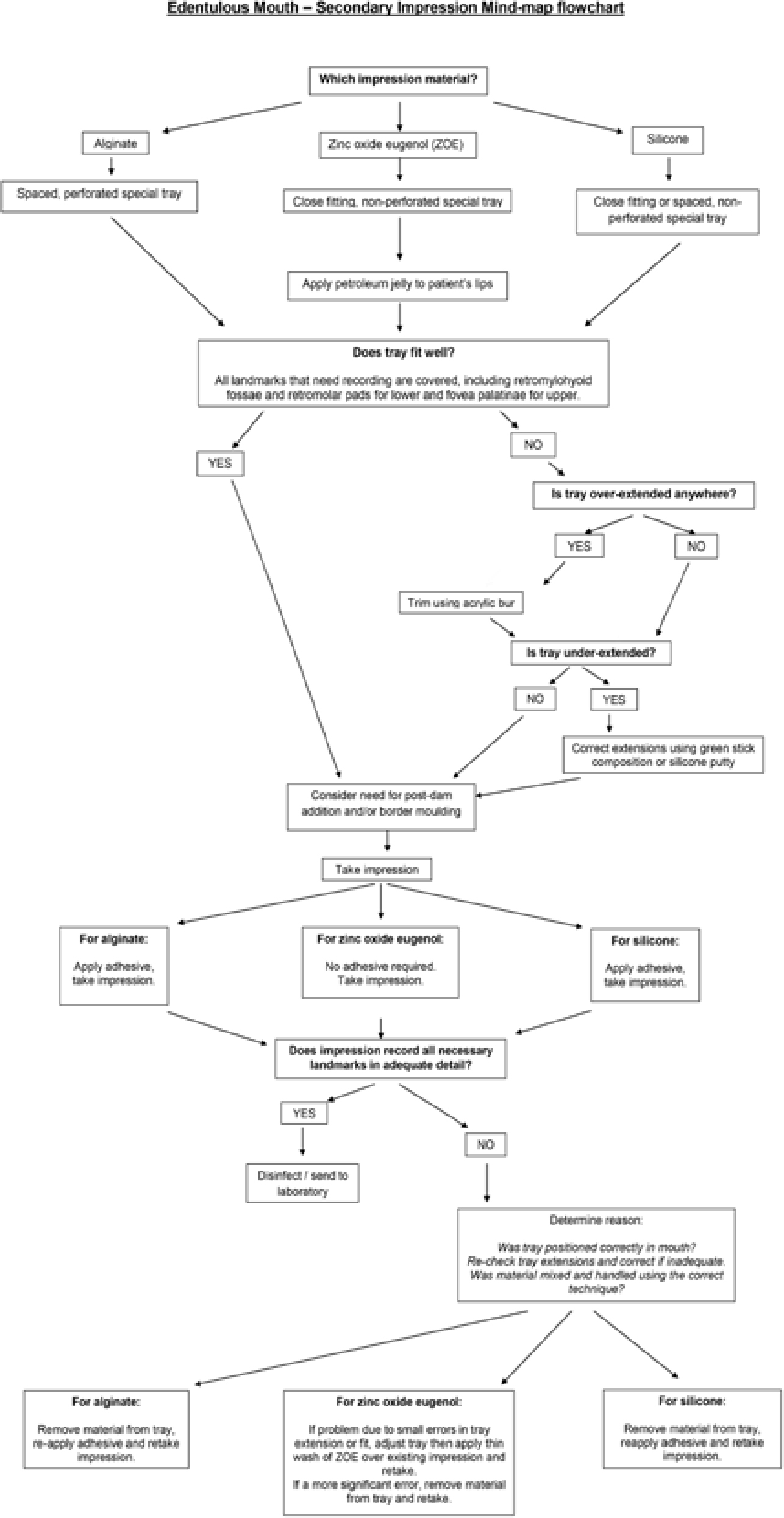

  • Complete dentures : Secondary impression (see Figure 12b) As for primary impression
  • Alginate – spaced, perforated special tray
  • Zinc oxide eugenol (ZOE) – close-fitting, non-perforated special tray
  • Silicone – close-fitting or spaced non-perforated special tray
  • Check tray extensions to ensure all necessary landmarks are covered. Greenstick composition can be used to correct under-extended trays or to border-mould the periphery.
  • Border-mould tray using ZOE, by tracing the material around the periphery of the tray and intra-oral moulding. Once the moulded material has set, a wash of ZOE applied to the entire fit surface of the tray and impression taken.
  • As with primary impression, ask patient to raise tongue on seating mandibular tray then protrude it.
  • With alginate ensure it is well retained in tray using perforations and appropriate adhesive.1 A disadvantage of alginate secondary impressions in edentulous patients is that it can be difficult to control its flow accurately, causing inaccuracies in the recording of the sulcus.
  • Silicone needs a viscosity that will flow (a medium-bodied appropriate) and adhesive must be added to the tray.
  • As it is an elastic material it is appropriate to use silicone in cases with undercuts (eg buccal to tuberosities). Do not use in-elastic materials such as ZOE in these cases.
  • Avoid ZOE in xerostomic patients.
  • Partial dentures primary impression
  • All tooth surfaces
  • Sulci
  • Palate
  • Saddle areas
  • Lower free-end saddle dentures:
  • Buccal shelves
  • Retromolar pads
  • Retromylohyoid fossae
  • Upper free-end saddle dentures:
  • Tuberosities
  • Hamular notches
  • Alginate and/or silicone-stock tray
  • Poorly recorded palatal vault – modify stock tray with silicone putty in palatal region prior to making alginate impression.
  • Poorly recorded labial sulcus – check tray position ensuring labial flange is in sulcus and lip not trapped. Ask patient to half close so lip not taut.
  • Lingual sulcus incorrectly recorded – ask patient to raise tongue as tray is inserted, to avoid trapping it. Once tray seated ask patient to protrude tip of tongue to lip so floor of mouth is recorded in raised position.
  • Partial dentures Secondary impression As for primary impression
  • Alginate – spaced, perforated special tray
  • Silicone – spaced, non-perforated special tray
  • Impression material pulls away from tray – ensure adequately perforated if alginate. Use correct adhesive in impression manner specified by manufacturer.
  • Care needed to ensure all teeth/structures involved with the denture design are recorded clearly (eg occlusal rest seats).
  • Alginate is used commonly for primary impressions. Prior to using alginate, in partially edentulous cases, silicone putty or impression composition can be used to customize the stock tray by adding it to large saddle areas or in the palatal region (Table 2). Silicones or impression composition alone can also be used for edentate mouths. An advantage of silicone putty is that it also serves to extend the stock tray should it be under-extended. If surface detail is inadequate having used putty, a thin wash of light-bodied silicone or alginate (using an appropriate adhesive) may be applied to the fit surface of the set putty and the tray re-inserted.

    Care is required when taking an impression as regards operator and patient positioning and the method used to seat the tray. For the upper impression, with the patient sitting upright, the operator stands behind the dental chair looking down over the patient's head as the tray is rotated into position to ensure that the tray handle is positioned centrally. The anterior part of the tray is seated first so the amount of material flowing from its posterior edge can be monitored visually. With the lower impression, the operator stands in front of the patient and rotates the tray into place, ensuring its alignment centrally. Care must be taken to avoid trapping the tongue with the lingual flanges by asking the patient to protrude the tongue such that its tip rests on the lower lip as the tray is seated. It is important to remove flexible impression materials from the mouth using a snap movement to avoid deforming the material.3

    Special trays

    In a survey of general dental practitioners, 75% reported using laboratory-constructed special trays to make their complete denture secondary impressions, with much variation in their design.1 Decisions need to be made concerning the design of the special tray and these decisions communicated effectively to the laboratory. Such decisions include whether or not to perforate the tray, the amount, if any, of spacing needed, the handle design and whether features such as windows are required (see the anterior fibrous change section). Such decisions will depend in part upon the chosen impression material and the nature of the denture-bearing tissues (Table 3). Appropriate spacing would be 3 mm for alginate and 2 mm for medium or low viscosity elastomers4 and close-fitting for zinc oxide eugenol. With edentate arches the advantage of close-fitting, non-perforated trays is that it is readily apparent, when the tray is tried in, whether modifications are required. A correctly extended maxillary tray (possibly with the addition of appropriate border tracing material such as greenstick composition) should exhibit similar retentive properties to the final denture base as a peripheral seal can be obtained, whereas if a perforated tray is used, such a seal will not be possible. Stub handles, rather than L-shaped ones, are preferred in edentate arches, as they do not cause distortion of the lip or errors in recording the labial sulcus (Figure 4).

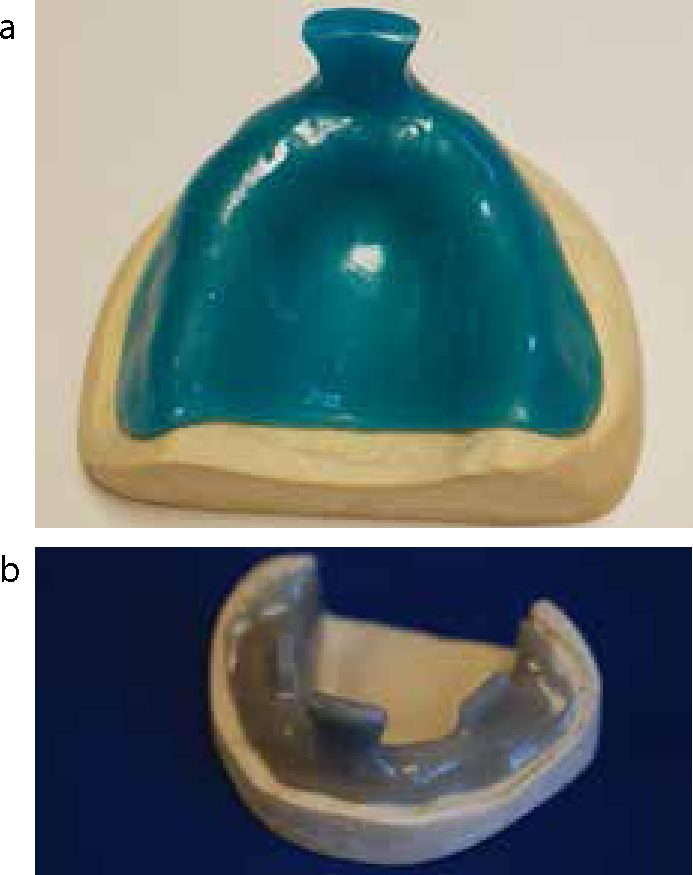

    Figure 4. (a, b) Upper and lower close-fitting, non-perforated special trays with stub handles, seated on study casts.

    Secondary impressions

    The purpose of the secondary impression is to record the denture-bearing area and relevant abutment teeth. In addition, the tissues in contact with the denture base during function and the sulci, with the lips and cheeks supported, must be recorded (RKF Clark – personal communication, 2010). In their explanation of complete denture retention, Darvell and Clark discuss the importance of close adaptation of the denture base to the underlying tissues and the relevance of impression technique in achieving this.5

    Necessary modifications are made to the special tray, reducing over-extensions with an acrylic bur and correcting under-extensions using additions of greenstick composition/silicone putty. Greenstick composition can be used to border-mould the tray by tracing it incrementally around the periphery, tempering in warm water then massaging the surrounding musculature whilst holding the tray in place. This moulding can also be achieved by asking the patient to contract his/her oral musculature by pursing the lips and offering a broad smile. These techniques will ensure that the periphery of the tray has adequate thickness, thus helping to achieve the desired peripheral border seal in edentate cases.

    The posterior extension of the edentate maxillary tray needs careful assessment to check that it extends to cover the necessary landmarks (Tables 1 and 3). Greenstick composition can be added to the fit surface in this distal post-dam region in order to displace the underlying tissues and help facilitate a posterior border seal in the completed denture (Figure 5).

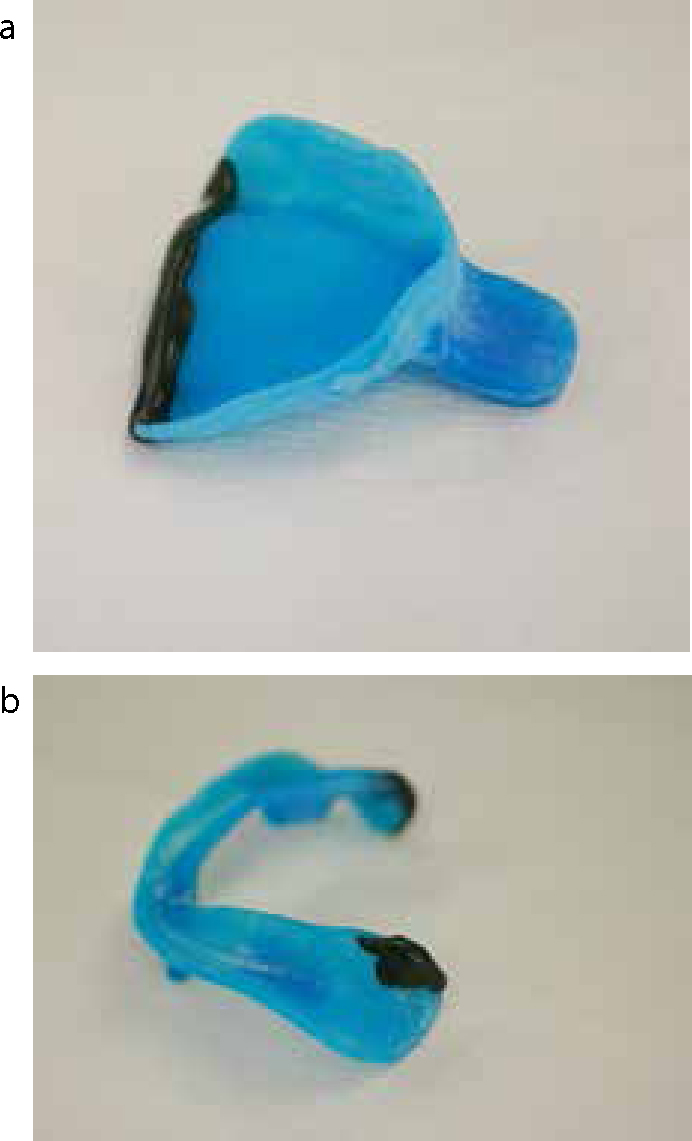

    Figure 5. (a) Greenstick addition in the post-dam region of the maxillary special tray and (b) retromylohyoid fossa region of the mandibular special tray.

    In edentate cases, the disto-lingual extension of the mandibular tray is crucial. The lingual flange should rest against the floor of the mouth when the mylohyoid muscle is contracted to obtain a seal and must extend into, and contact, the medial aspect of the ridge in the retromylohyoid fossae (Figure 5). See Table 3 for tips on how to achieve this.

    Having completed necessary modifications to the special tray, as outlined above, the impression can then be made using the material of choice (Tables 2 and 3). For partial dentures, alginate or a medium-bodied, addition-cured silicone are the materials of choice. Prior to using these materials, any necessary tooth alterations, eg guide plane or rest seat preparations, must be completed.

    As with the primary impression, it is important to ensure that the quantity of material used is assessed carefully. If a close-fitting tray is used in an edentate mouth, only a thin wash of impression material is required. Once the tray is seated, the tissues should be massaged to facilitate border moulding of the impression. For the lower impression, the patient should raise his/her tongue and rest the tip on the lower lip such that mylohyoid contracts and the floor of the mouth is recorded in the raised position. Figure 6 shows a mandibular secondary impression recorded with a medium-bodied silicone.

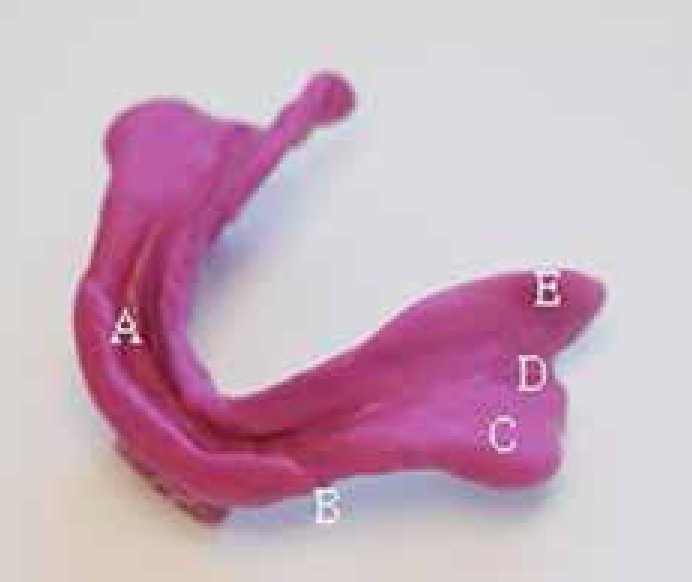

    Figure 6. A mandibular secondary impression recorded in a medium-bodied silicone with anatomical landmarks highlighted (A – residual alveolar ridge; B – buccal fraenum; C – buccal shelf; D – retromolar pad; E – retromylohyoid fossa).

    Study casts

    Study casts can be used to/for:

  • Assess the occlusion;
  • Diagnostic wax-ups;
  • Monitor toothwear;
  • Construct templates for temporary crowns/bridges;
  • Trial preparations.
  • In cases where an accurate impression is not possible in a stock tray, a custom-made special tray may be indicated. If there is an adequate number of teeth present and intercuspal position (ICP) is stable, it should be possible to articulate the models without the need for an occlusal registration. However, if ICP is not stable, or the occlusion needs to be assessed in retruded contact position (RCP), an occlusal registration is essential. This can be registered in RCP or ICP using pink wax, beauty wax, silicone materials or zinc oxide eugenol (ZOE). In cases where detailed analysis of the occlusion is necessary, registrations are also needed in lateral excursions and protrusion.6,7

    Management of the gagging patient

    The patient that gags during impression-taking can present a challenge. There may be underlying systemic causes resulting from stomach problems or excessive alcohol and tobacco use, but psychological factors often also play a role (RKF Clark, 2010 – personal communication). In many cases, operator error is the cause as a result of overloading the tray with impression material. The following practical tips may help overcome this problem:

  • Take care when seating the maxillary tray to observe how much material flows from the posterior edge of the tray. If an excessive amount appears then stop seating the tray, allow the material to set, remove and repeat with a reduced quantity of material.
  • Use silicone putty to modify the stock tray, thus reducing the quantity of alginate required and the likelihood of excess material being extruded.
  • Use fast-setting alginates or warm water to reduce the setting time.
  • Distraction techniques, such as asking the patient to raise his/her feet from the chair, nasal breathing if possible, can be effective.
  • Anterior fibrous change

    If lower anterior teeth occlude against an edentulous maxillary ridge, then fibrous change to the maxillary anterior ridge can occur over time. Use of a conventional impression technique is likely to result in displacement of this ridge, which in turn may lead to an unretentive denture. One method for overcoming this problem involves constructing a close-fitting special tray with a window cut out over the area of fibrous change. The impression is taken in two stages. Firstly, a wash of material is applied to the fit surface and the tray seated. When set, the tray is removed and any material that has flowed into the window area is cut away using a scalpel. The tray is then re-seated and held in place while a low viscosity material, such as ZOE or light-bodied silicone, is painted over the exposed window area. Once set, the tray is removed and the resulting impression should have recorded the area of fibrous change in an un-displaced state.

    Lynch and Allen describe a technique which involves constructing a special tray with additional spacing and perforations in the area of displaceable tissue.8 A heavy-bodied addition cured polyvinylsiloxane is used to record the ‘normal’ denture-bearing tissues and is applied to the tray periphery. Once set, any excess material is removed from the area of displaceable tissue and light-bodied polyvinylsiloxane is applied over the whole fit surface of the tray and the tray re-seated.

    Replica/copy technique

    There have been numerous methods utilized to replicate dentures.9 Most involve taking an impression of the fit and polished surfaces of the denture to be copied and then a reline impression taken within the copy.

    Prior to making the copy of the original denture, any under-extended borders should be corrected as outlined above.

    A large stock tray is filled with the material of choice (alginate or silicone putty) and the denture embedded in it, polished surface down, to a level just short of the top of the flanges. A laboratory silicone putty material is the authors' material of choice as it is less costly than silicones for intra-oral use and is more dimensionally stable than alginate (Figure 7).

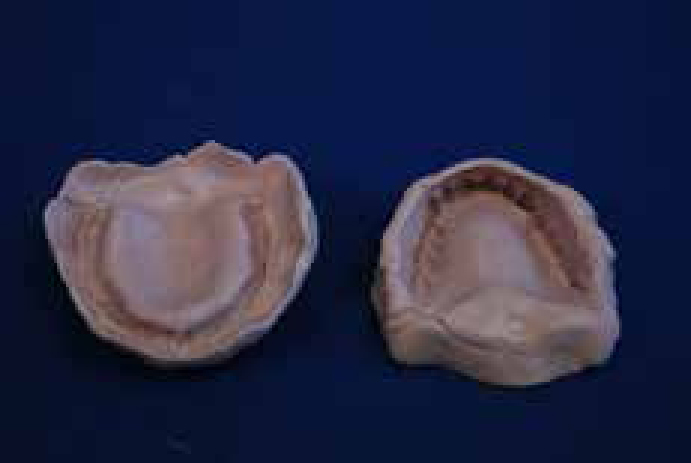

    Figure 7. A silicone putty impression sandwich copy of an upper complete denture.

    Once set, apply a thin smear of petroleum jelly to the top of the impression. A second large impression tray is filled with impression material and seated over the fitting surface of the embedded denture, thus sandwiching it.

    Once set, the two impression trays can be separated and the denture retrieved; any attached greenstick composition is removed and the denture returned to the patient.

    At the second clinical visit, an impression is made of the patient's denture-bearing tissues using ZOE or a light-bodied silicone wash impression within the constructed replica and a jaw registration taken. It has been suggested that this impression should be made before the jaw registration, as the impression material may lead to movement of the denture, in relation to the underlying ridge, thus potentially affecting occlusal vertical dimension (OVD) and occlusal plane orientation.9 McCord describes a modification to this replica technique for patients with a displaceable anterior maxillary ridge.10 The base of the replica denture is constructed of a solid material, such as cold or light-cured polymethylmethacrylate (PMMA) and, having completed the wash impression within the maxillary denture using a medium-bodied material, a window is cut out over the area of displaceable tissue and a light-bodied impression material syringed into the window to record the anterior ridge in an undisplaced state.

    Reline/rebase impression (complete dentures

    One must always question the desirability of relining or rebasing a denture as there is a risk that, unless care is taken, both clinically and in the laboratory, the orientation of the occlusal plane and the OVD may be altered in an undesired fashion.

    Firstly remove any undercuts on the fit surface of the denture using a bur to enable the laboratory to remove the denture from the cast.

    To reduce the risk of altering the OVD or occlusal plane orientation, a thin wash of flowable impression material should be used (eg ZOE or a light-bodied addition-cured silicone) and care taken when seating the denture to ensure the occlusal plane is unaltered.

    Both a closed and an open-mouthed technique have been described, the former involving the patient lightly closing together against the opposing denture in the position of maximum intercuspation and the latter treating the denture like a special tray, with the impression recorded with the patient's mouth open.11 It is important to appreciate that the process may result in movement of one denture relative to the other with a consequential effect on the occlusion. Whichever technique is used, it is important, following return of the denture from the laboratory, to re-assess the occlusion carefully and to undertake any necessary adjustments.

    ‘Neutral zone’ technique

    The neutral zone is defined as ‘a zone in which the forces of the cheeks and lips are said to be in equilibrium with those of the tongue’.2 Impression techniques exist to determine its location so that the teeth on a mandibular complete denture can be set within it, thus assisting its stability. This can be helpful in patients that have powerful oral musculature or poor neuromuscular control.12

    Firstly, undertake conventional impression and jaw registration stages. Construct a mandibular baseplate with vertical stops attached to the upper surface that contact the maxillary wax try-in denture at the pre-determined OVD.13 A wire running between these vertical stops allows a visco-elastic material (eg temporary soft lining material) to be retained.

    The surrounding musculature moulds the impression material resulting in an outline indicating where the ‘neutral zone’ lies. Further details of this technique and the associated laboratory work are outwith the scope of this paper.

    Altered cast technique

    In mandibular Kennedy Class I and II cases, with distal free-end saddles, a cobalt-chromium denture will be tooth and mucosal borne. As the support offered by the teeth differs from that offered by the mucosa, there is a theoretical possibility that, if an impression is made of the distal free-end saddle tissues in an undisplaced state, then during function the denture may sink down into the tissues in this region. This difference in support may be overcome by using the altered cast technique, which involves altering the edentulous section of the master cast.14

    Having tried in the metal framework successfully, close-fitting, self-cure acrylic saddles are attached to the distal of the framework such that their extension is the same as that of a lower special tray, extending into the retromylohyoid fossa region, over the retromolar pads and covering the buccal shelves.

    A thin wash of ZOE or light-bodied silicone is applied to the fit surface of the tray and the metal framework placed into the patient's mouth, ensuring the framework is fully seated, with rest seats engaged, and finger pressure applied to the metal work (but not to the saddle area). This technique will then result in an impression of the distal tissues in the displaced state and the laboratory can undertake the cast alterations.

    The altered cast technique is used today less commonly, in part because if silicone putty is used during the primary impression stage it tends to produce the desired displacement of the distal tissues, and in part because of the need for an additional clinical visit which provides a questionable clinical advantage.

    Fixed prosthodontics

    This section covers impression techniques used for indirect restorations such as crowns, inlays/onlays, veneers and bridges. An indirect restoration can only be as good as the impression of the preparation itself. An accurate impression will be required of:

  • All margins and surfaces of the preparation to enable fabrication of the prosthesis in the laboratory;
  • Proximal surfaces of adjacent teeth to ensure appropriate contact areas are achieved;
  • Occlusal surfaces of all teeth in the arch and the opposing arch to enable articulation of maxillary and mandibular casts and thus correct contouring of the occlusal surface of the crown or bridge being constructed.
  • Working impressions for crowns and bridges

    Often, when there is a fault in the fit of a restoration, contact areas or occlusion, the problem usually lies with the impression rather than a laboratory fault.15 In a cross-sectional survey, considerable variation was found in the quality of the dental casts as a result of poor impression quality.16 The materials used commonly for recording the working impression are addition-cured silicones and polyethers (Table 2). A variety of techniques can be used with addition-cured silicones:

  • Single consistency;
  • Dual consistency, one stage;
  • Dual consistency, two stage.
  • All the above can be carried out either using stock trays or custom-made (special) trays. The important points to remember when choosing a technique are that the impression of the preparation needs to be as accurate as possible. This is usually achieved by using a flowable material to record surface detail. The bulk of the material needs to provide adequate rigidity and support and this is achieved by using a stiffer material.

    The authors prefer the light/heavy-body silicone (Figure 8) or a single consistency polyether – one stage impression, as they tend to provide the accurate and predictable impressions. Some dentists prefer to use the dual consistency – two stage method, where the impression is normally taken in putty and allowed to set then removed, light-body silicone syringed around the preparation and the impression re-inserted in the mouth. If this method is used, it is essential that the impression is cut back or a spacer incorporated in the region of the preparation to allow space for the new light body material before re-inserting in the mouth.

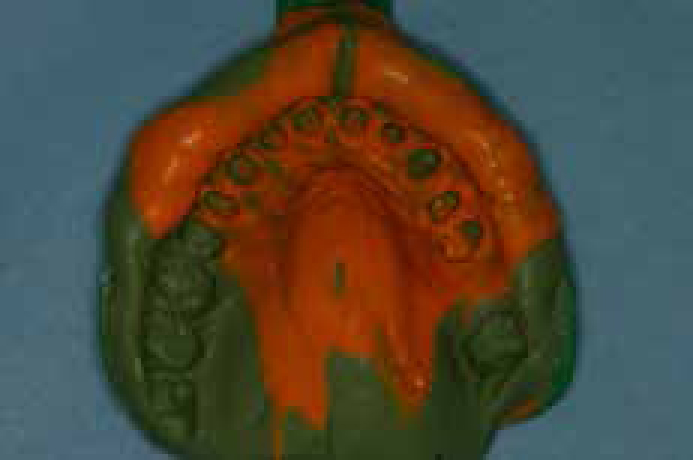

    Figure 8. A silicone impression using the putty and wash technique.

    There needs to be good co-ordination between the dentist and the nurse to ensure that, as soon as the process of syringing the material is completed, the tray loaded with impression material is ready for insertion. If the light-body material is syringed too early, it will start setting before the impression tray is inserted, resulting in a ‘drag’. Also prior to syringing, the preparation needs to be completely dry with no contamination with water, saliva or blood. The material needs to be syringed with care, ensuring that the tip of the syringe is constantly embedded within the impression material to avoid introduction of air bubbles. The impression needs to be inspected to ensure an accurate impression is taken of the prepared teeth, as well as all the teeth in the rest of the arch. Particular attention needs to be given to the margins, ensuring no inclusion of air bubbles, the dimensions of the prepared teeth should be compared between the impression and the teeth intra-orally and the presence of any areas where the tray material is showing through noted, as this could introduce errors in occlusion.17

    If the preparation margins are subgingival, it can be difficult to keep the area clean and dry to ensure that the hydrophobic flowable impression material spreads, covers and records the margins faithfully. Hydrophilic wash materials have been developed to try and overcome these problems. If the margin has to be placed subgingivally, the gingivae need to be retracted so that an accurate impression can be made. Retraction can be carried out by:

  • Gingival retraction cord (with or without astringent)18 (Figure 9);
  • Injectable materials containing aluminium chloride for haemostasis and for preparation margins within the gingival crevice.

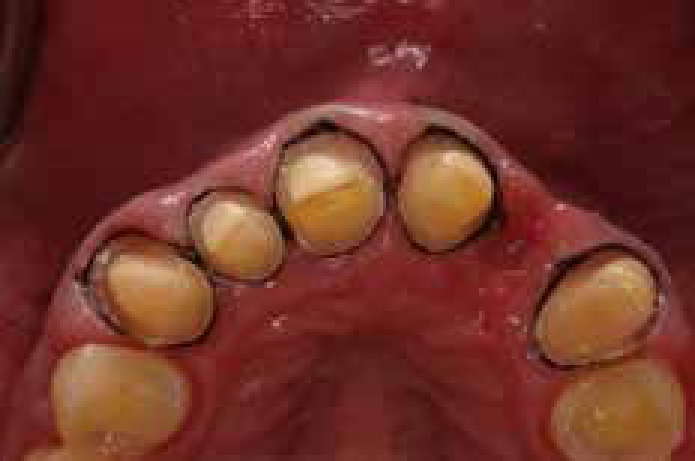

  • Figure 9. Retraction cord in position separating the soft tissues from the hard tissue marginal preparations.

    Impressions for temporary crowns and bridges

    Impressions used as a matrix for construction of temporary restorations can be made in either alginate or silicone putty. Alginate is accurate, quick and cheap.19 The advantage of silicone putty is that it is firm, making the process of temporary restoration construction easier and more reliable. It is also dimensionally stable and therefore can be stored, while the final restoration is being constructed in the laboratory in case a remake of the temporary restoration becomes necessary.

    Impressions for implant-supported prostheses

    It is beyond the scope of this paper to go into great detail about impression techniques for implant-supported restorations. The main points to note are:

  • Implant fixture-head impressions can be used to choose the abutments or construct restorations;
  • Abutment-level impressions can be used to construct restorations;
  • The open tray (‘pick up’) technique is accurate as the impression copings are retained in the impression;
  • In cases where access is difficult, a closed tray (‘reseating’) method can be used but the copings remain in the mouth and will need to be removed from the mouth and reseated into the impression. There is a risk of introducing inaccuracies during this process.
  • Open tray method

  • A good quality stock tray can be used in most cases, except when there is complicated anatomy and the fit of the stock tray is not accurate enough. In these cases, a custom-made tray can be used instead.
  • When carrying out the open tray (pick-up) impression technique, the tray is cut (Figure 10) and modified so that the impression coping guide pins pass through without touching the sides of the tray, after being screwed in place directly on the implant fixture heads or abutments. The tray windows are covered with wax to control the impression material.
  • A rigid impression material (eg polyether) is syringed around the impression coping and also placed in the tray.
  • The impression tray is placed in the mouth and the guide pins are felt through the wax. This is very important as the guide pins need to be unscrewed before the impression can be removed from the mouth.
  • Once set, the guide pins are unscrewed and the impression is removed. The impression copings will remain in the impression (Figure 11).
  • Figure 10. (a) Impression coping guide pins screwed into implant fixture head. Note the length of the guide pins in the open tray technique. (Courtesy of PremaSukumaran.) (b) The maxillary tray has windows cut out of it to permit the long guide pins to pass through. (Courtesy of PremaSukumaran.) (c) An example of a mandibular open tray technique permitting access to the four guide pin screws which can be loosened once the impression material has set, before the tray is removed.

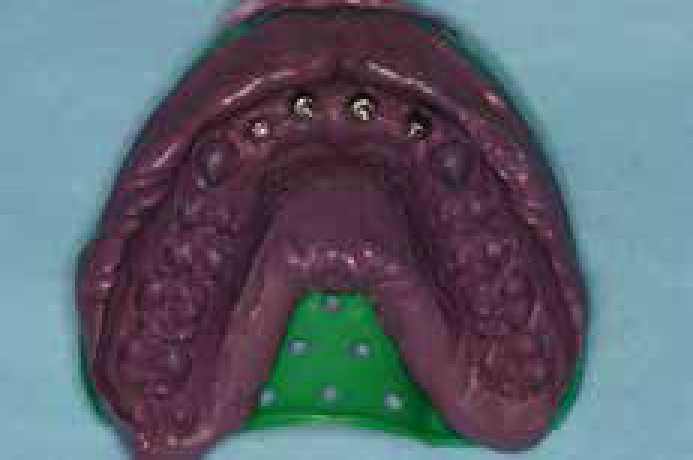

    Figure 11. A polyether impression with impression copings retained in the final impression once the guide pins have been released. (Courtesy of WNN Wan Nik.)

    Closed tray method

  • The tray does not need to be modified for the closed tray (reseating) technique. Impression copings are secured to the fixture head and the impression is taken and removed as per conventional crown and bridge technique. The impression copings are then removed and reseated in the impression.
  • The impression needs to record accurately the fixture/abutment, surrounding gingival tissues, adjacent teeth and soft tissues, as well as occlusal surfaces of the rest of the arch.
  • Fixture/abutment analogues are secured to the impression copings, a soft tissue replica in a flexible material (usually silicone) is incorporated into the model and a stone model is then poured.
  • Impression material and techniques are very similar to conventional crown and bridge methods, as described above. Most clinicians use single consistency technique using a polyether impression material.
  • There is no doubt that errors can be introduced during impression-taking, model pouring, die trimming and restoration construction extra-orally. In most cases, these are minor and traditional methods provide accurately fitting restorations. Since the introduction of CAD/CAM to dentistry in 1980, various chairside and laboratory procedures have become widely available and popular.20 These techniques offer advantages over traditional methods by reducing errors and, in the case of chairside systems, providing patients with highly aesthetic restorations in a single visit.

    Chairside CAD/CAM restorations

    A hand-held scanning device is used to scan the tooth intra-orally for the chairside systems, or a model for the laboratory systems. The preparation needs to be smooth with rounded corners and of adequate width in order to ensure an accurate scan is obtained. Soft tissue retraction and a dry field are crucial for these systems as there is very little margin for error. There is no impression stage which is an advantage for patients who suffer from gagging, no need for a temporary restoration, no laboratory costs for the chairside systems, no model or die pouring or trimming. The restoration is then made in a milling device (Cerec 3 (Sirona), IPS Empress CAD (Ivoclar-Vivadent), Paradigm (3M ESPE)). Various materials, including resin composites, ceramics and zirconia, are available for inlays/onlays, veneers and crowns. There is a steep learning curve for the use of these systems and the cost of the capital investment needs to be balanced against the usage.

    Laboratory CAD/CAM systems

    This technique requires two visits. The first visit is either for impression-taking or a direct scan of the preparation in the mouth. The scan or the impression is then sent to the laboratory. If an impression is taken, the laboratory will scan the model instead, which could introduce the errors discussed above. The scan is then used to mill a ceramic or zirconia restoration (inlay/onlay, veneer, crown, bridge) which can subsequently be veneered with a pressed ceramic used for traditional crowns or bridges and customized/stained (IPS e.max CAD and IPS e.maxZirCAD (Ivoclar-Vivadent), Procera (Noble Biocare), Atlantis (Astratech)). Ceramic glass blocks produce more aesthetic restorations than zirconia. Zirconia restorations are, however, stronger and more suitable for bridges.

    In order to achieve a predictable clinical outcome in construction of fixed and removable prostheses, the clinician needs to have a detailed knowledge and understanding of the impression materials and techniques available.

    Figure 12.(a) Mind map flowchart outlining the decisions made in taking the primary impression in an edentate mouth.
    Figure 12.(b) Mind map flowchart outlining the decisions made in taking the secondary impression in an edentate mouth.
